ADP2106 Series
Manufacturer: Analog Devices
Beta
⌘K

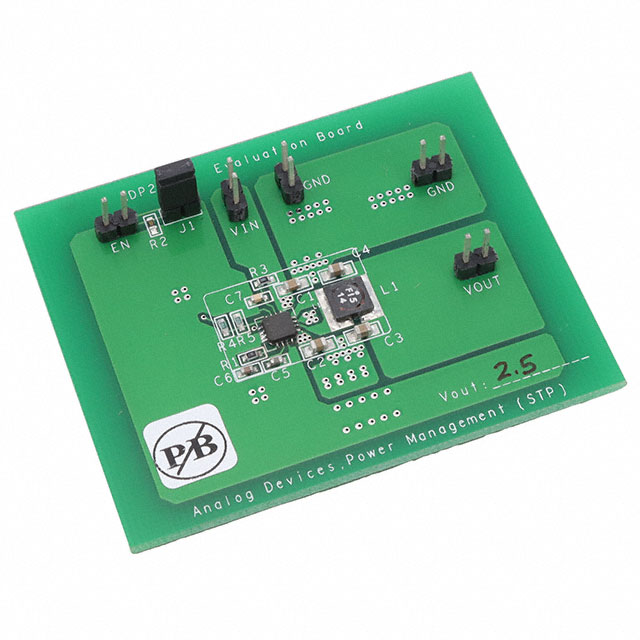

BOARD EVAL FOR ADP2106-1.8
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Current - Output | Regulator Topology | Main Purpose | Board Type | Frequency - Switching | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Output Configuration | Function | Output Type | Voltage - Output (Min/Fixed) | Number of Outputs | Topology | Synchronous Rectifier | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Supplier Device Package | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices | Board(s) | Non-Isolated | 1 | 1.5 A | Buck | DC/DC Step Down | Fully Populated | 1.2 MHz | 1.8 V | 2.7 V | 5.5 V | ||||||||||||||
 Analog Devices | Board(s) | Non-Isolated | 1 | 1.5 A | Buck | DC/DC Step Down | Fully Populated | 1.2 MHz | 2.5 V | 2.7 V | 5.5 V | ||||||||||||||
 Analog Devices | 1.5 A | 1.2 MHz | Positive | Step-Down | 1.81 mOhm | 3.3 V | 1 | Buck | -40 °C | 125 ¯C | 5.5 V | Surface Mount | 2.7 V | 16-LFCSP (4x4) | 16-WQFN Exposed Pad CSP |
