FX22 Series
Board to Board & Mezzanine Connectors Coplanar Mtg Conctr Recept 40 pos
Manufacturer: Hirose Electric Co Ltd
Catalog
Board to Board & Mezzanine Connectors Coplanar Mtg Conctr Recept 40 pos
Beta
⌘K
Board to Board & Mezzanine Connectors Coplanar Mtg Conctr Recept 40 pos
Board to Board & Mezzanine Connectors Coplanar Mtg Conctr Recept 40 pos
Board to Board & Mezzanine Connectors Coplanar Mtg Conctr Recept 40 pos
| Part | Height Above Board [z] | Height Above Board [z] | Pitch | Pitch | Number of Rows | Number of Positions | Features | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|

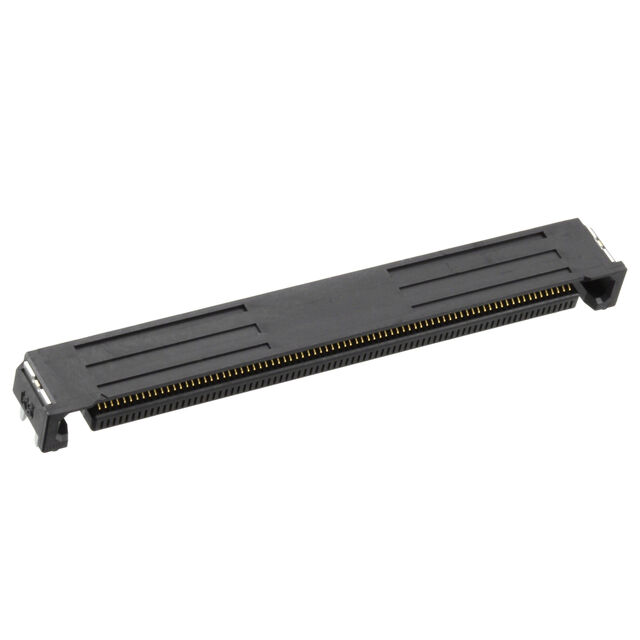

 Hirose Electric Co Ltd | 4.2 mm | 0.165 in | 0.02 " | 0.5 mm | 1 | 80 | Board Guide | Receptacle Non-Gendered | Right Angle Surface Mount |

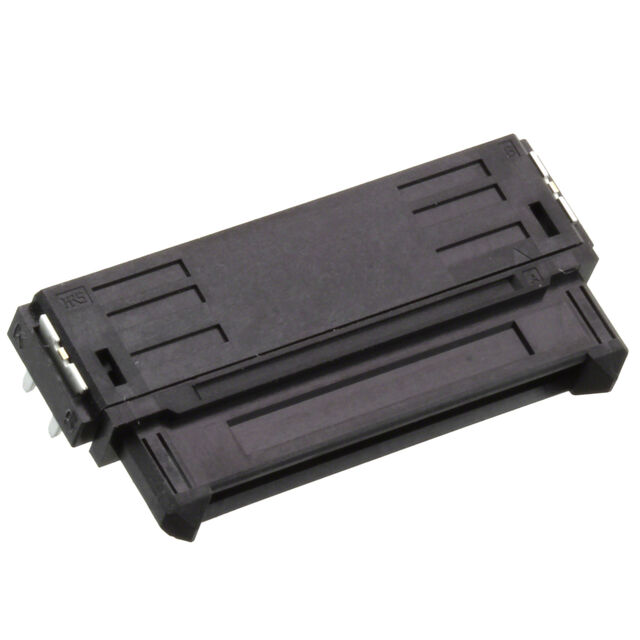

 Hirose Electric Co Ltd | 4.2 mm | 0.165 in | 0.02 " | 0.5 mm | 1 | 40 | Board Guide | Plug Non-Gendered | Right Angle Surface Mount |

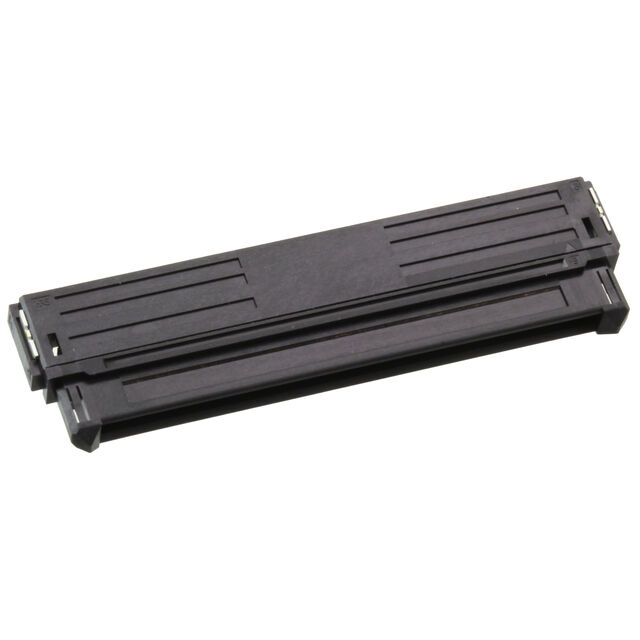

 Hirose Electric Co Ltd | 4.2 mm | 0.165 in | 0.02 " | 0.5 mm | 1 | 80 | Board Guide | Plug Non-Gendered | Right Angle Surface Mount |

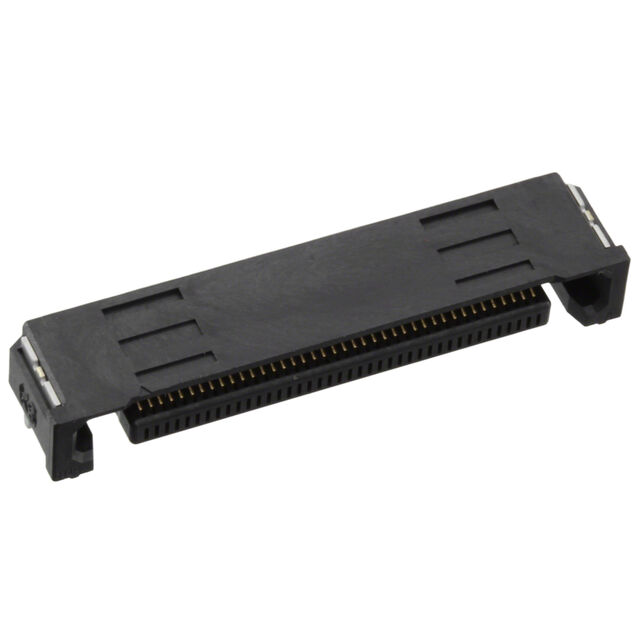

 Hirose Electric Co Ltd | 4.2 mm | 0.165 in | 0.02 " | 0.5 mm | 1 | 40 | Board Guide | Receptacle Non-Gendered | Right Angle Surface Mount |

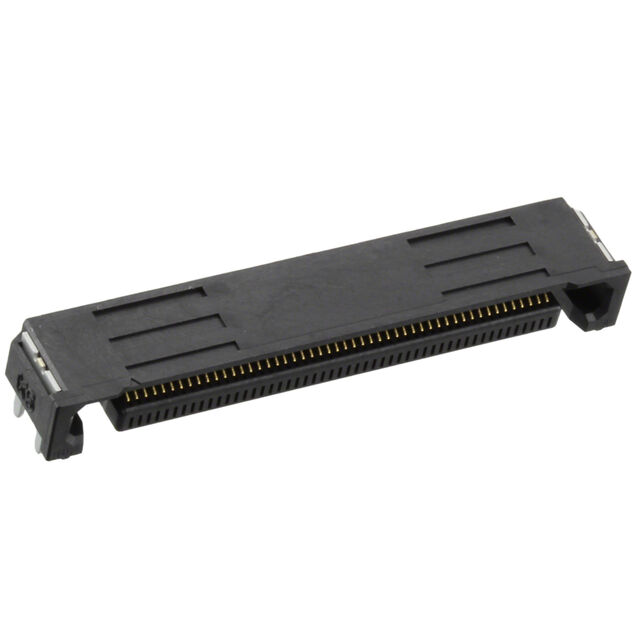

 Hirose Electric Co Ltd | 4.2 mm | 0.165 in | 0.02 " | 0.5 mm | 1 | 50 | Board Guide | Receptacle Non-Gendered | Right Angle Surface Mount |
