TDN 5 Series

Catalog

DC DC CONVERTER +/-12V 5W

Part	Efficiency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Applications	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 2	Voltage - Output 1	Type	Power (Watts)	Mounting Type	Features	Standard Number	Current - Output (Max) [Max]	Approval Agency
Traco Power TDN 5-2422WI	83 %	7-DIP Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	36 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	210 mA	210 mA	2	9 V	-12 V	12 V	Isolated Module	5 W	Through Hole	Remote On/Off SCP
Traco Power TDN 5-2410WISM	76 %	7-SMD Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	36 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "			1	9 V		3.3 V	Isolated Module	3.3 W	Surface Mount	Remote On/Off SCP	60950-1 62368-1	1 A	UL
Traco Power TDN 5-4821WISM	80 %	7-SMD Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	75 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	500 mA		2	18 V	-5 V	5 V	Isolated Module	5 W	Surface Mount	Remote On/Off SCP	60950-1 62368-1		UL
Traco Power TDN 5-0921WI	80 %	7-DIP Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	13.2 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	500 mA		2	4.5 V	-5 V	5 V	Isolated Module	5 W	Through Hole	Remote On/Off SCP

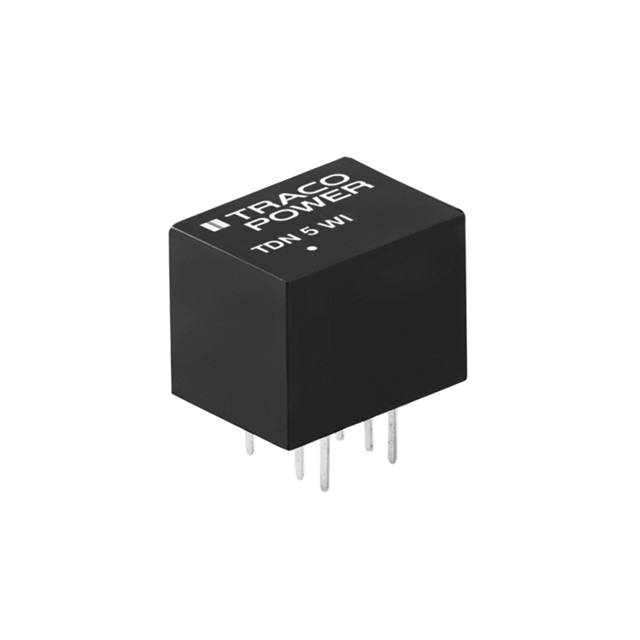

Traco Power TDN 5-4813WI	83 %	7-DIP Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	75 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "			1	18 V		15 V	Isolated Module	5 W	Through Hole	Remote On/Off SCP		333 mA
Traco Power TDN 5-2422WISM	83 %	7-SMD Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	36 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	210 mA	210 mA	2	9 V	-12 V	12 V	Isolated Module	5 W	Surface Mount	Remote On/Off SCP	60950-1 62368-1		UL

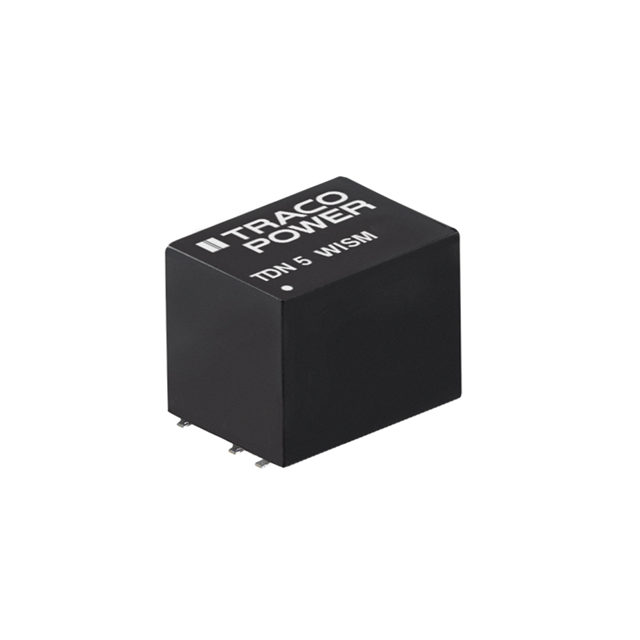

Traco Power TDN 5-4822WISM	83 %	7-SMD Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	75 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	210 mA	210 mA	2	18 V	-12 V	12 V	Isolated Module	5 W	Surface Mount	Remote On/Off SCP	60950-1 62368-1		UL
Traco Power TDN 5-4811WISM	81 %	7-SMD Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	75 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "			1	18 V		5 V	Isolated Module	5 W	Surface Mount	Remote On/Off SCP	60950-1 62368-1	1 A	UL
Traco Power TDN 5-0922WI	83 %	7-DIP Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	13.2 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	210 mA	210 mA	2	4.5 V	-12 V	12 V	Isolated Module	5 W	Through Hole	Remote On/Off SCP
Traco Power TDN 5-4822WI	83 %	7-DIP Module 6 Leads	75 °C	-40 °C	1.6 kV	ITE (Commercial)	75 V	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	210 mA	210 mA	2	18 V	-12 V	12 V	Isolated Module	5 W	Through Hole	Remote On/Off SCP
