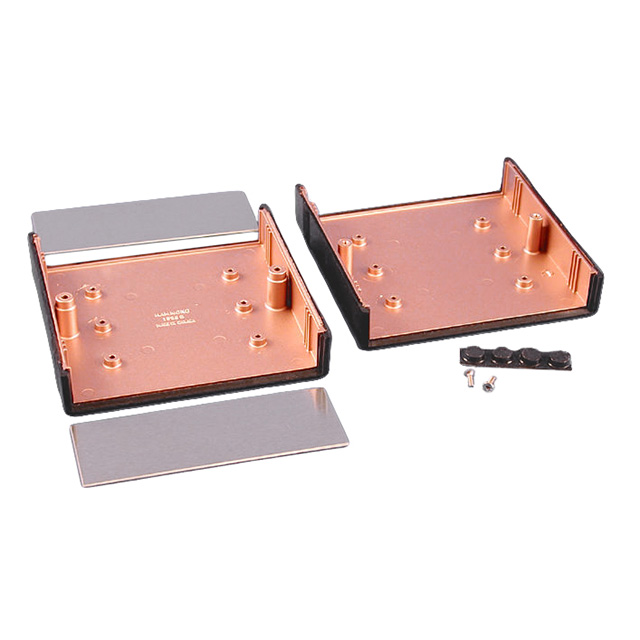

1598 Series

Catalog

BOX PLASTIC BLK 8.08"L X 7.08"W

Part	Area (L x W)	Area (L x W)	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Design	Color	Container Type	Height	Height [z]	Material Flammability Rating	Ratings	Features	For Use With/Related Products	Accessory Type	Weight [diameter]	Weight [diameter]	Height [z]	Size / Dimension [y]	Weight	Weight	Height	Drive Type	Type	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Screw Head Type	Weight [custom]	Weight [custom]
Hammond Manufacturing 1598RDBK	369 cm˛	57.2 in˛	ABS	7.077 "	205.11 mm	8.075 "	179.76 mm	Split Sides and End Panel(s)	Black	Box	63.2 mm	2.488 in	UL94 V-0	IP54	Card Guides EMI Shielded PCB Supports

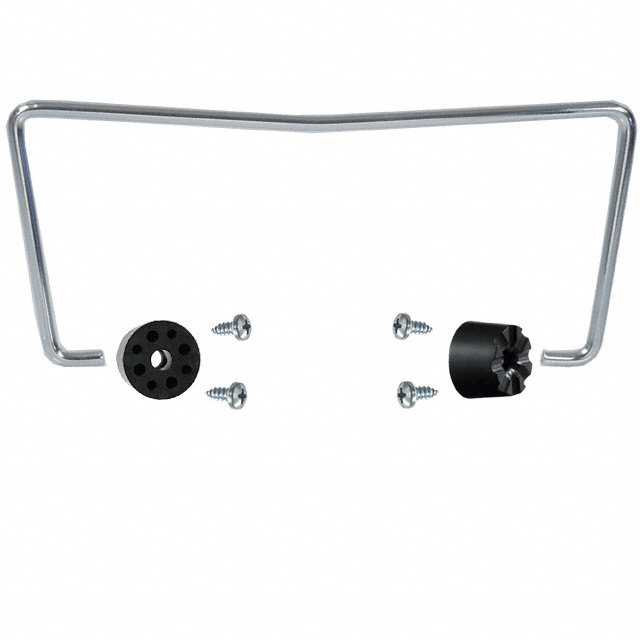

Hammond Manufacturing 1598TH1																1598 C E F G Series	Bail Feet

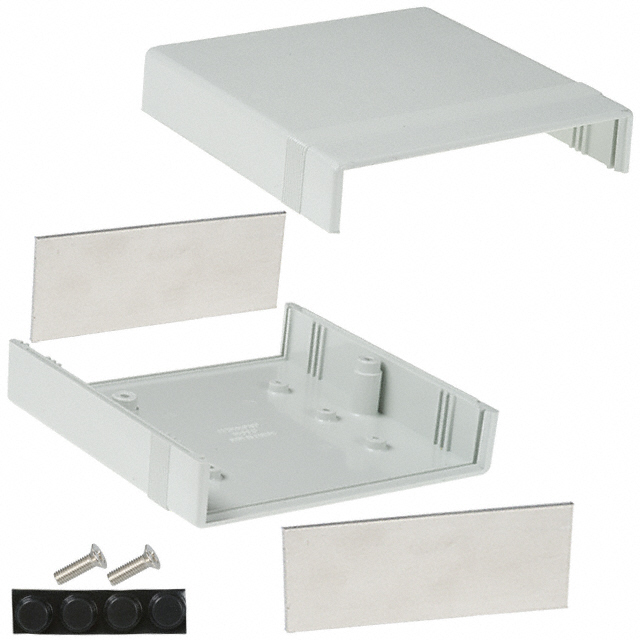

Hammond Manufacturing 1598BGY	181 cm˛	28 in˛	ABS	5.287 "	135.2 mm	5.323 "		Split Sides and End Panel(s)	Gray	Box		2.008 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			321.6 g	0.709 lb	51 mm	134.29 mm

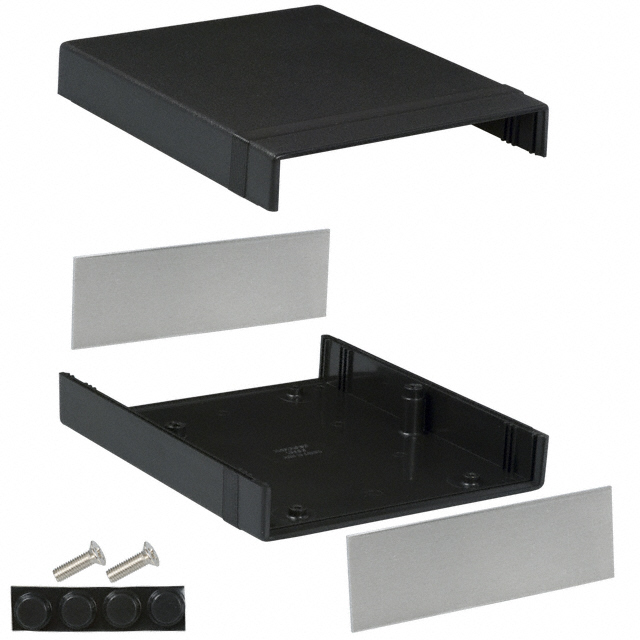

Hammond Manufacturing 1598CBK	277 cm²	42.9 in²	ABS	6.063 in	179.5 mm	7.067 "	154 mm	Split Sides and End Panel(s)	Black	Box		2.008 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports			321.6 g	0.709 lb	51 mm

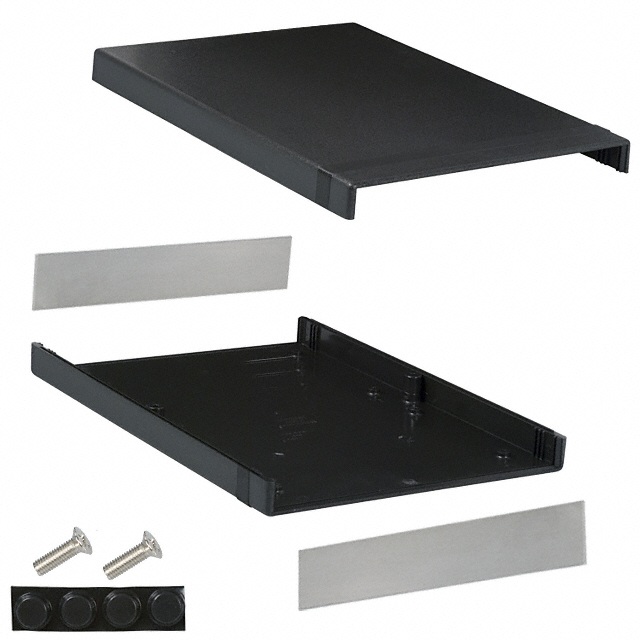

Hammond Manufacturing 1598HBK	561 cm˛	87 in˛	ABS	7.87 in	280.9 mm	11.059 in	199.9 mm	Split Sides and End Panel(s)	Black	Box	41 mm		UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports							1.4 lbs	635 g	1.614 in
Hammond Manufacturing 1598CGY	277 cm²	42.9 in²	ABS	6.063 in	179.5 mm	7.067 "	154 mm	Split Sides and End Panel(s)	Gray	Box		2.008 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports					51 mm

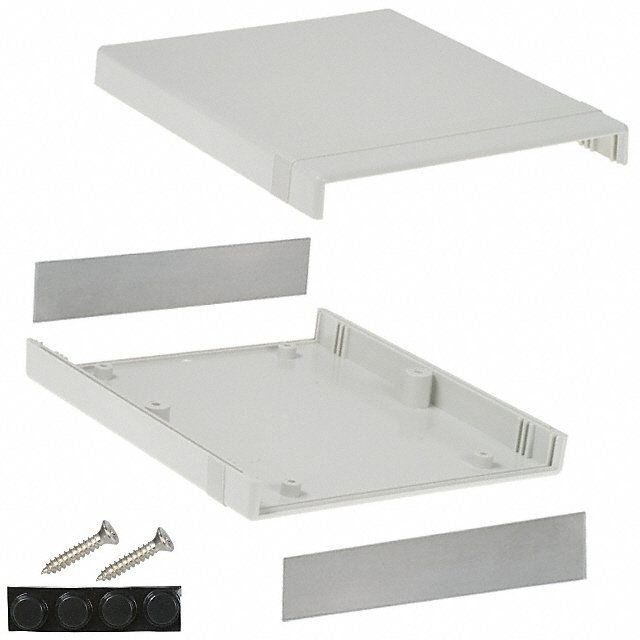

Hammond Manufacturing 1598BBSGY	277 cm²	42.9 in²	ABS	6.083 in	178.99 mm	7.047 in	154.51 mm	Split Sides and End Panel(s)	Gray	Box		1.378 in		IP54	Card Guides PCB Supports					35 mm		0.531 lb	240.86 g

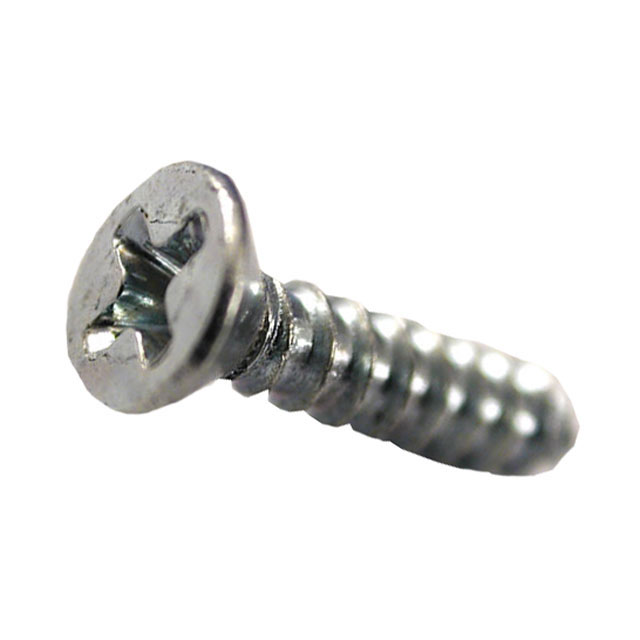

Hammond Manufacturing 1598TS100															Self Tapping										Phillips	Sheet Metal Screw	#4	15.88 mm	0.625 in	0.625 in	Flat Head

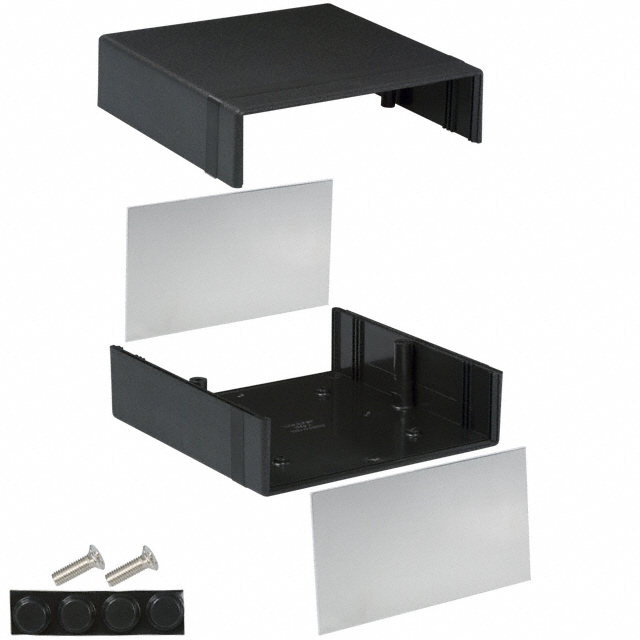

Hammond Manufacturing 1598EBK	254 cm˛	39.3 in˛	ABS	6.246 in	160.35 mm	6.313 in	158.65 mm	Split Sides and End Panel(s)	Black	Box			UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports							0.953 lb	432.27 g

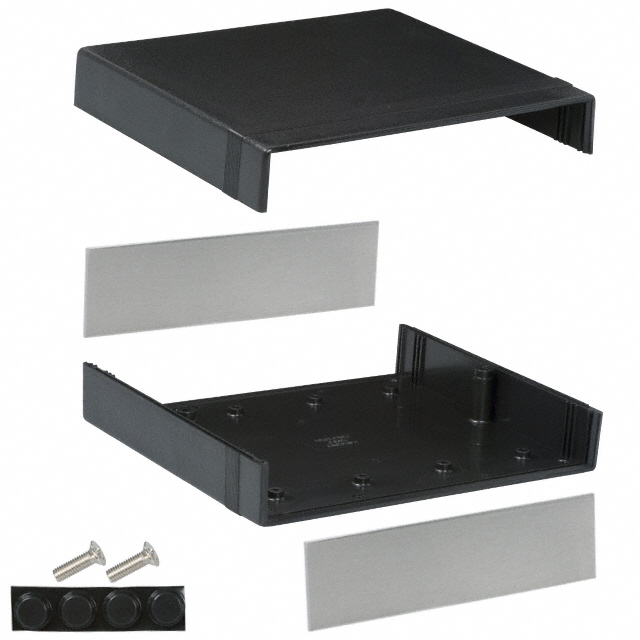

Hammond Manufacturing 1598DBK	369 cm˛	57.2 in˛	ABS	7.077 "	205.11 mm	8.075 "	179.76 mm	Split Sides and End Panel(s)	Black	Box	63.2 mm	2.488 in	UL94 V-0	IP54	Card Guides Flame Retardant PCB Supports																	0.959 lb	435 g
