UB225SK Series

Catalog

SWITCH PUSH DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Termination Style	Type	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Marking	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Type	Circuit	Features

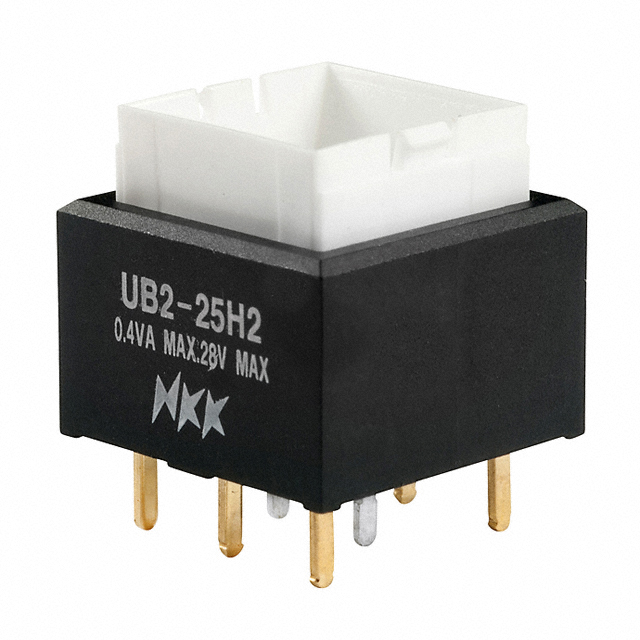

NKK Switches UB225SKG036G-1JB	200000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard	Clear	0.4 VA	Through Hole	28 V	On-Mom	50 °C	-25 °C	28 V	No Marking	Blue LED	2.9 VDC	Button Square	DPDT	Sealed - Fully

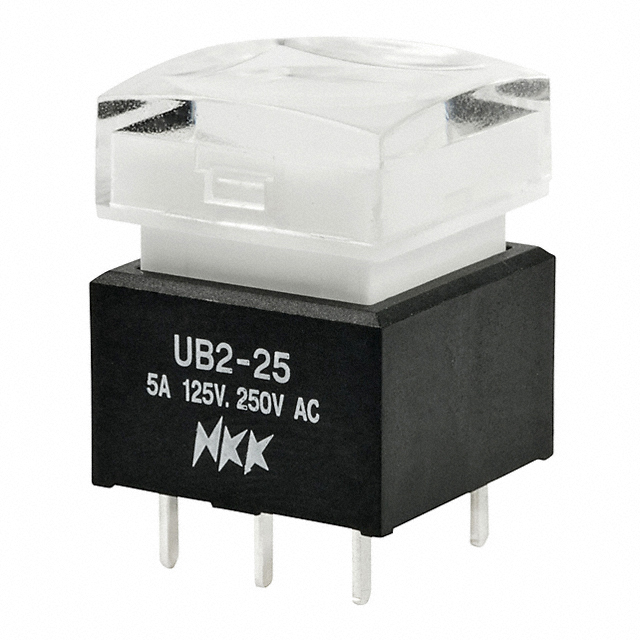

NKK Switches UB225SKW03N-4JB	10000 Cycles	1000000 Cycles	PC Pin	Standard	Clear	5 A	Through Hole	30 V	On-Mom	70 °C	-25 °C	125 V	No Marking			Button Square	DPDT	Sealed - Fully

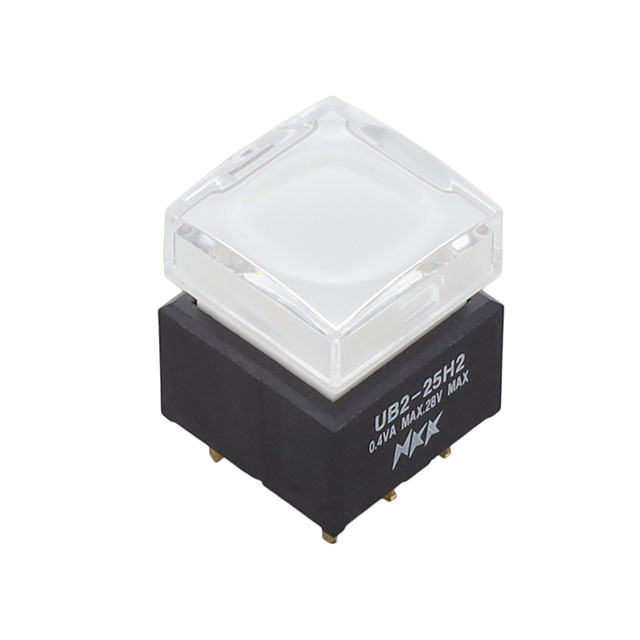

NKK Switches UB225SKG036CF-1JB	200000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard	Clear	0.4 VA	Through Hole	28 V	On-Mom	50 °C	-25 °C	28 V	No Marking	Green/Red LED	2.1 VDC 3.5 VDC	Button Square	DPDT	Sealed - Fully
NKK Switches UB225SKW035C-1JB	10000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard	Clear	5 A	Through Hole	30 V	On-Mom	50 °C	-25 °C	125 V	No Marking	LED Red	1.85 VDC	Button Square	DPDT	Sealed - Fully
NKK Switches UB225SKW035C	10000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard		5 A	Through Hole	30 V	On-Mom	50 °C	-25 °C	125 V	No Marking	LED Red	1.85 VDC	Plunger for Cap	DPDT	Sealed - Fully

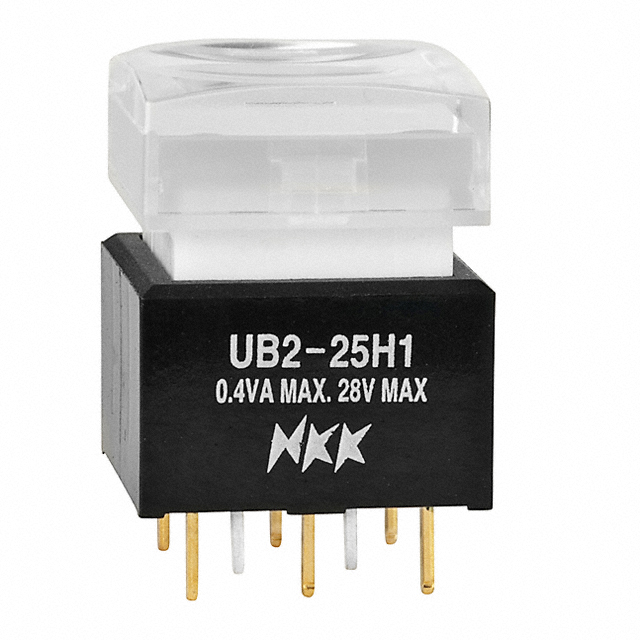

NKK Switches UB225SKG035D-1JB	200000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard	Clear	0.4 VA	Through Hole	28 V	On-Mom	50 °C	-25 °C	28 V	No Marking	Amber LED	2 VDC	Button Square	DPDT	Sealed - Fully

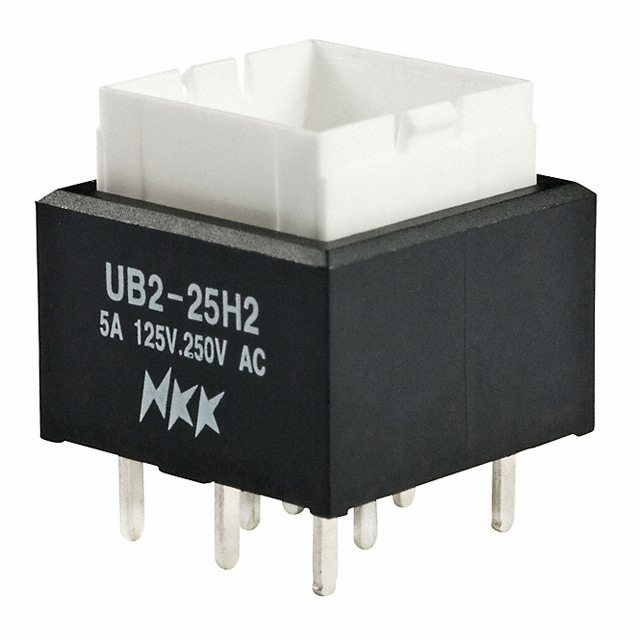

NKK Switches UB225SKW036CF	10000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard		5 A	Through Hole	30 V	On-Mom	50 °C	-25 °C	125 V	No Marking	Green/Red LED	2.1 VDC 3.5 VDC	Plunger for Cap	DPDT	Sealed - Fully
NKK Switches UB225SKG035C-1JB	200000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard	Clear	0.4 VA	Through Hole	28 V	On-Mom	50 °C	-25 °C	28 V	No Marking	LED Red	1.85 VDC	Button Square	DPDT	Sealed - Fully
NKK Switches UB225SKW03N-5B	10000 Cycles	1000000 Cycles	PC Pin	Standard	White	5 A	Through Hole	30 V	On-Mom	70 °C	-25 °C	125 V	No Marking			Button Square	DPDT	Sealed - Fully
NKK Switches UB225SKW035D	10000 Cycles	1000000 Cycles	PC Pin	Illuminated Standard		5 A	Through Hole	30 V	On-Mom	50 °C	-25 °C	125 V	No Marking	Amber LED	2 VDC	Plunger for Cap	DPDT	Sealed - Fully
