AM20E Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER +/-15V 20W

Part	Voltage - Output 2	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Applications	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Features	Power (Watts)	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Package / Case	Voltage - Input (Max) [Max]	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Standard Number	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
aimtec AM20EW-2415D-NZ	-15 V	15 V	-15 V	ITE (Commercial)	9 V	Through Hole	CE cULus cURus	Adjustable Output Remote On/Off	20 W	88 %	2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm	2	85 °C	-40 C	1.5 kV	6-DIP Module	36 V	Isolated Module	667 mA	667 mA
aimtec AM20EWM-2424SH50NZ				Medical	9 V	Through Hole		Remote On/Off	20 W	89 %			51.5 mm	26.5 mm		12 mm	1	85 °C	-40 C	5000 V		36 V	Isolated Module			24 V	2.03 "	1.04 "	0.47 "	833 mA
aimtec AM20EWM-4815SH50NZ				Medical	18 V	Through Hole		Remote On/Off	20 W	88 %			51.5 mm	26.5 mm		12 mm	1	85 °C	-40 C	5000 V		75 V	Isolated Module			15 V	2.03 "	1.04 "	0.47 "	1.333 A
aimtec AM20EW-2412S-NZ-K-ST				ITE (Commercial)	9 V	Chassis Mount	CE cURus		20 W	89 %	2.99 in	1.29 in	76 mm	31.5 mm	1 in	25.1 mm	1	65 °C	-40 °C	1.5 kV		36 V	Enclosed			12 V				1.667 A	60950-1

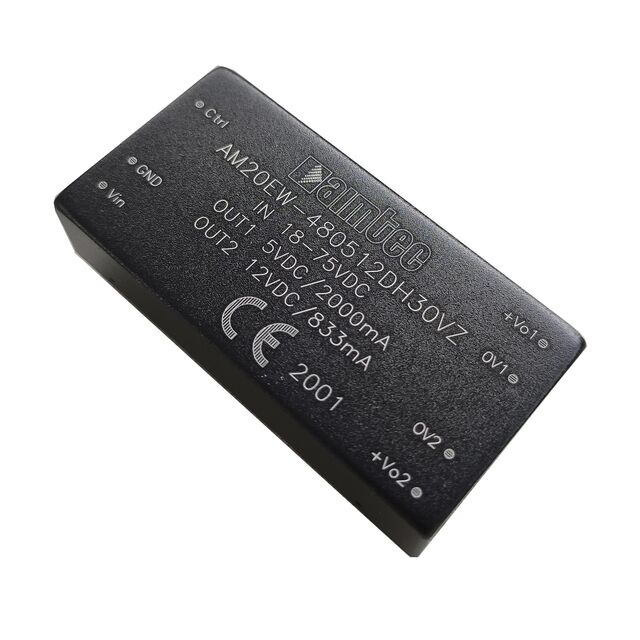

aimtec AM20EW-480512DH30VZ	12 V			ITE (Commercial)	18 V	Through Hole		Remote On/Off	20 W	84 %	2 in	1 "	50.8 mm	25.4 mm	0.46 in	11.8 mm	2	105 ░C	-40 C	3000 V		75 V	Isolated Module	833 mA	2 A							12 V	5 V
aimtec AM20EW-4824S-NZ				ITE (Commercial)	18 V	Through Hole	CE cULus cURus	Adjustable Output Remote On/Off	20 W	90 %	2 in	1 "	50.8 mm	25.4 mm	0.47 "	11.8 mm	1	85 °C	-40 C	1.5 kV		75 V	Isolated Module			24 V				834 mA
aimtec AM20EWM-2412SH50NZ				Medical	9 V	Through Hole		Remote On/Off	20 W	86 %			51.5 mm	26.5 mm		12 mm	1	85 °C	-40 C	5000 V		36 V	Isolated Module			12 V	2.03 "	1.04 "	0.47 "	1.666 A
aimtec AM20E-2409S-NZ				ITE (Commercial)	18 V	Through Hole	CE	Remote On/Off	20 W	89 %	2 in	1 "	50.8 mm	25.4 mm	0.47 "	11.8 mm	1	85 °C	-40 C	1.5 kV		36 V	Isolated Module			9 V				2.22 A
aimtec AM20EW-11015SH22-NZ-ST				ITE (Commercial)	40 V	Chassis Mount	CE cURus		20 W	86 %	2.99 in	1.24 in	75.9 mm	31.5 mm	0.84 in	21.3 mm	1	85 °C	-40 °C	2250 VDC		160 V	Enclosed			15 V				1.333 A	60950-1
aimtec AM20E-2409D-NZ	-9 V			ITE (Commercial)	18 V	Through Hole	CE	Remote On/Off	20 W	88 %	2 in	1 "	50.8 mm	25.4 mm	0.47 "	11.8 mm	2	85 °C	-40 C	1.5 kV		36 V	Isolated Module	1.11 A	1.11 A
