SQJQ906 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

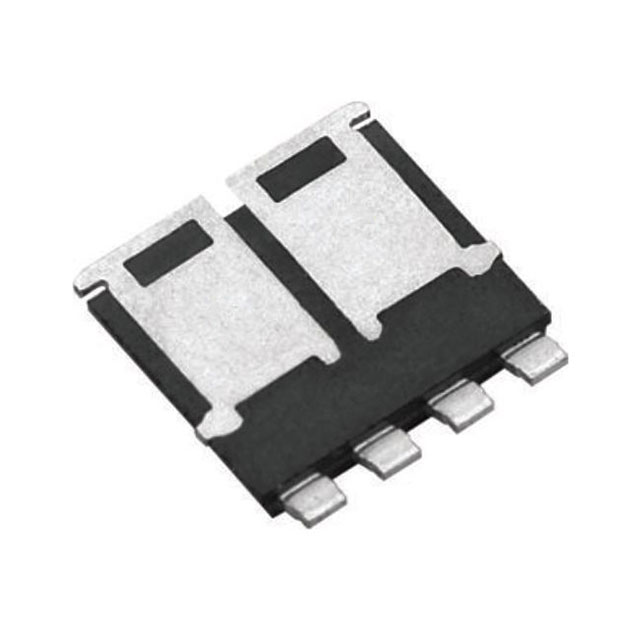

MOSFET 2N-CH 40V 160A PPAK8X8
| Part | Gate Charge (Qg) (Max) @ Vgs | Technology | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Grade | Mounting Type | Qualification | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Min] | Operating Temperature [Max] | Power - Max [Max] | Configuration | Package / Case | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 45 nC | MOSFET (Metal Oxide) | 3238 pF | PowerPAK® 8 x 8 Dual | Automotive | Surface Mount | AEC-Q101 | 2.5 V | 40 V | 160 A | -55 °C | 175 ░C | 187 W | 2 N-Channel (Dual) | PowerPAK® 8 x 8 Dual | 4.3 mOhm |
