TMDC 10 Series

Catalog

DC/DC CONVERTER +/-12V 10W

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output 1	Applications	Voltage - Isolation	Current - Output (Max)
Traco Power TMDC 10-7222H	10 W	70 °C	-40 C	160 V	416 mA	416 mA	Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	-12 V	2	85 %	80 V	12 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-7223H	10 W	70 °C	-40 C	160 V			Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	-15 V	2	85 %	80 V	15 V	ITE (Commercial)	3000 V	333 mA
Traco Power TMDC 10-2425	10 W	92.5 °C	-40 °C	36 V	208 mA	208 mA	Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	-24 V	2	85 %	9 V	24 V	ITE (Commercial)	3000 V

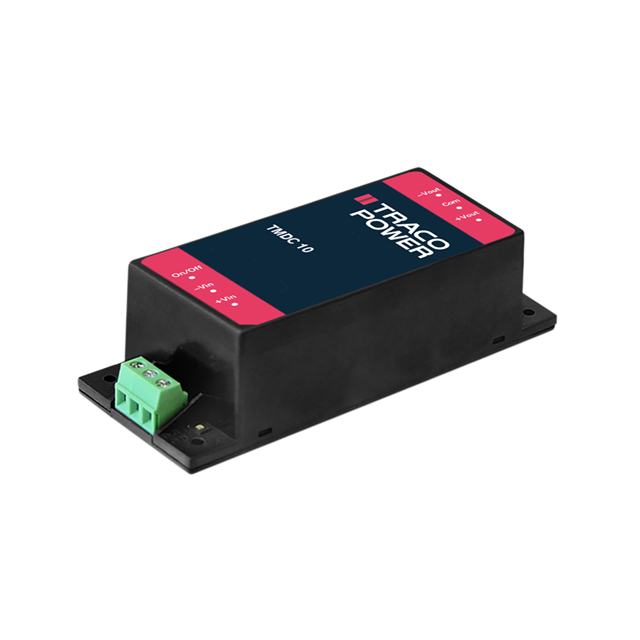

Traco Power TMDC 10-2418	10 W	92.5 °C	-40 °C	36 V	208 mA		Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "		1	84 %	9 V	48 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-2415	10 W	92.5 °C	-40 °C	36 V	416 mA		Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "		1	86 %	9 V	24 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-2422	10 W	92.5 °C	-40 °C	36 V	416 mA	416 mA	Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	-12 V	2	86 %	9 V	12 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-4815	10 W	92.5 °C	-40 °C	75 V	416 mA		Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "		1	86 %	18 V	24 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-2413	10 W	92.5 °C	-40 °C	36 V	666 mA		Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "		1	86 %	9 V	15 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-7225H	10 W	70 °C	-40 C	160 V	208 mA	208 mA	Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	-24 V	2	84 %	80 V	24 V	ITE (Commercial)	3000 V
Traco Power TMDC 10-7213H	10 W	70 °C	-40 C	160 V	666 mA		Chassis Mount	CB CE cURus	Enclosed	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "		1	85 %	80 V	15 V	ITE (Commercial)	3000 V
