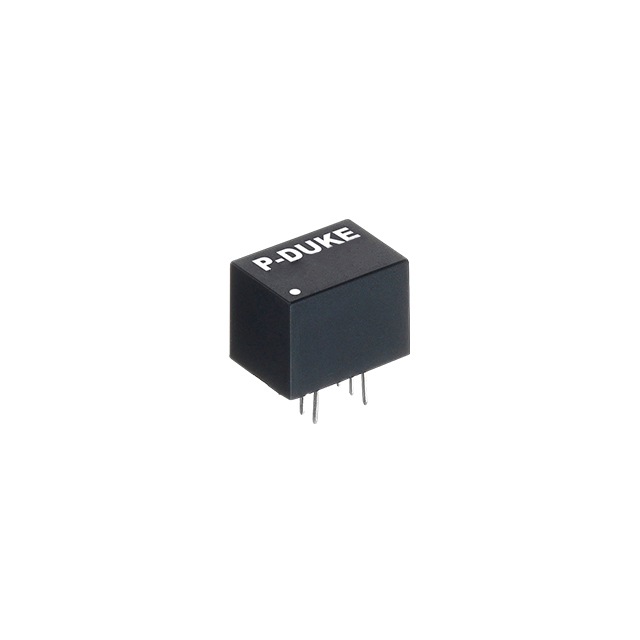

SDH03 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 24V 3W
| Part | Current - Output (Max) [Max] | Approval Agency | Applications | Voltage - Isolation | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Power (Watts) | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Number of Outputs | Standard Number | Features | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 125 mA | CE | ITE (Commercial) | 1.6 kV | Through Hole | 36 V | 24 V | 9 V | 3 W | Isolated Module | 0.36 in | 10.2 mm | 13.2 mm | 0.52 in | 9.1 mm | 0.4 " | 7-DIP Module 6 Leads | 1 | 62368-1 | Remote On/Off | 105 C | -40 °C | |
P-DUKE Technology | 200 mA | CE | ITE (Commercial) | 1.6 kV | Through Hole | 75 V | 15 V | 18 V | 3 W | Isolated Module | 0.36 in | 10.2 mm | 13.2 mm | 0.52 in | 9.1 mm | 0.4 " | 7-DIP Module 6 Leads | 1 | 62368-1 | Remote On/Off | 105 C | -40 °C | 83 % |
