JR16WR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

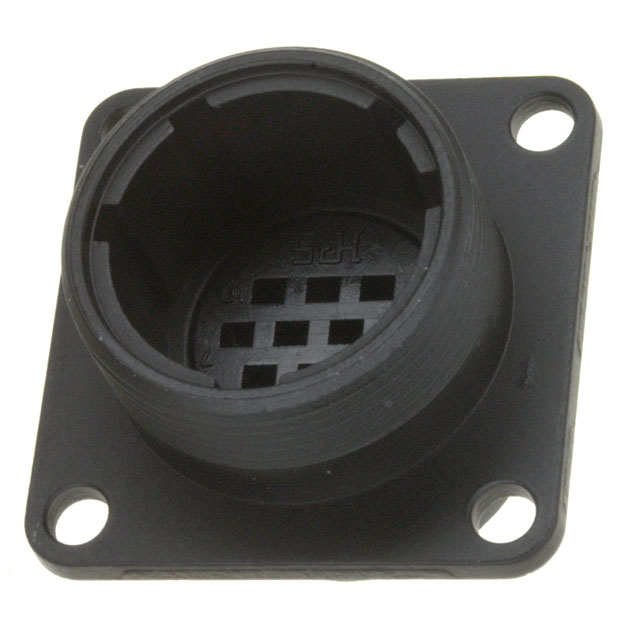

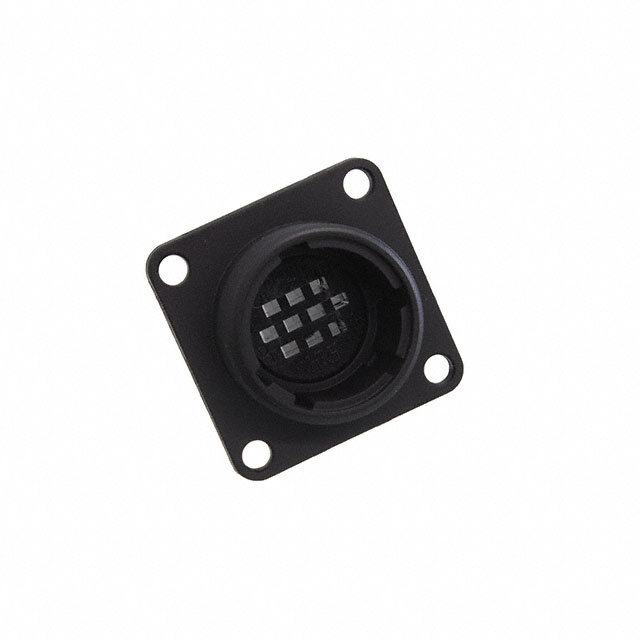

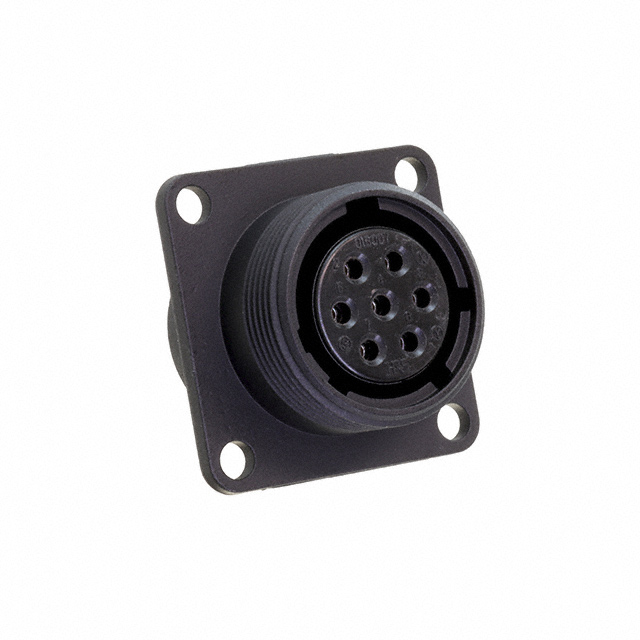

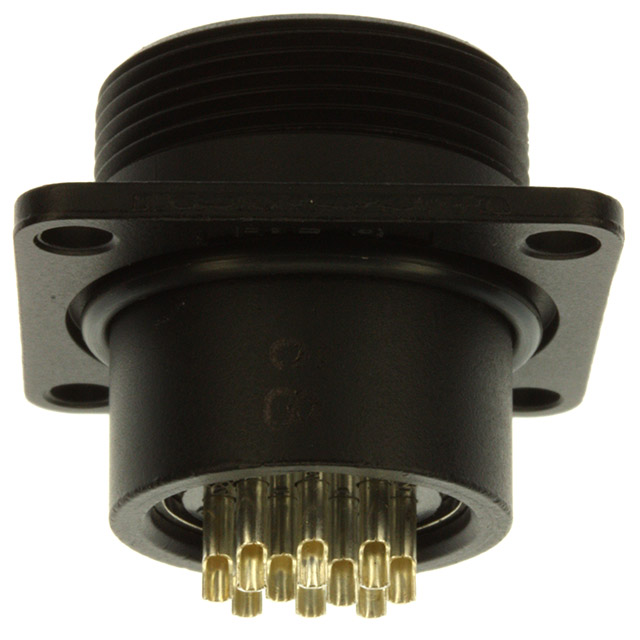

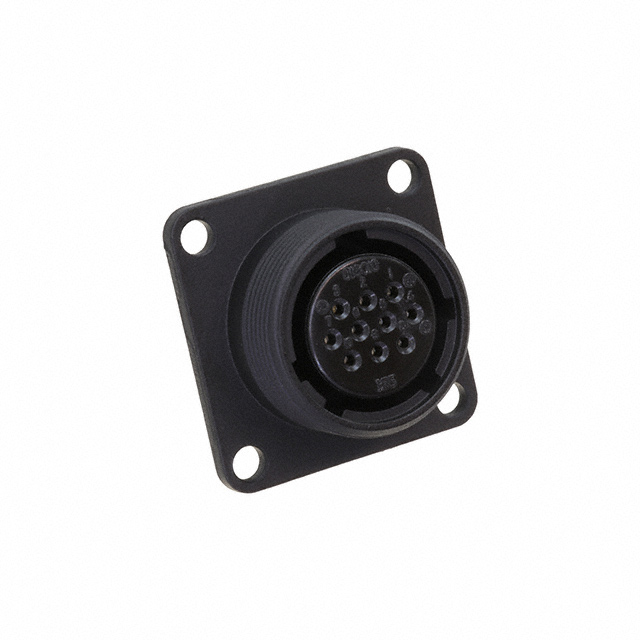

CONN RCPT HSG MALE 10POS PNL MT
| Part | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Mounting Type | Connector Type | Shielding | Insert Material | Fastening Type | Note | Contact Shape | Number of Positions | Mounting Feature | Shell Finish | Material Flammability Rating | Housing Color | Type | Shell Material | Contact Size | Orientation | Ingress Protection | Voltage Rating | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Primary Material | Applications | Contact Material | Color | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Crimp | 85 °C | -25 °C | 16 | Panel Mount | Receptacle Housing | Unshielded | Polycarbonate (PC) | Threaded | Contacts Not Included | Circular | 10 | Flange | Chrome | UL94 V-0 | Black | For Male Pins | Aluminum Alloy | 1 mm | Keyed | IP67/IP68 | |||||||||||
 Hirose Electric Co Ltd | 85 °C | -25 °C | 16 | Panel Mount | Receptacle Female Sockets | Unshielded | Phenol Formaldehyde (PF) | Threaded | 7 | Flange | Black Chromium | UL94 V-0 | Aluminum Alloy | Keyed | IP67/IP68 | 100 VAC 140 VDC | 10 A | 78.7 µin | 2 µm | Silver | Metal | Automotive Industrial Telecommunications | Copper Alloy | Black | ||||||||
 Hirose Electric Co Ltd | Crimp | 85 °C | -25 °C | 16 | Panel Mount | Receptacle Housing | Unshielded | Polycarbonate (PC) | Threaded | Contacts Not Included | Circular | 10 | Flange | Chrome | UL94 V-0 | Black | For Male Pins | Aluminum Alloy | 1 mm | Keyed | IP67/IP68 | |||||||||||
Hirose Electric Co Ltd | Crimp | 85 °C | -25 °C | 16 | Panel Mount | Receptacle Housing | Unshielded | Polycarbonate (PC) | Threaded | Contacts Not Included | Circular | Flange | Chrome | UL94 V-0 | Black | For Male Pins | Aluminum Alloy | 1.6 mm | Keyed | IP67/IP68 | ||||||||||||
 Hirose Electric Co Ltd | 85 °C | -25 °C | 16 | Panel Mount | Receptacle Female Sockets | Unshielded | Phenol Formaldehyde (PF) | Threaded | 10 | Flange | Black Chromium | UL94 V-0 | Aluminum Alloy | Keyed | IP67/IP68 | 100 VAC 140 VDC | 5 A | 78.7 µin | 2 µm | Silver | Metal | Automotive Industrial Telecommunications | Copper Alloy | Black | ||||||||
 Hirose Electric Co Ltd | 85 °C | -25 °C | 16 | Panel Mount | Receptacle Female Sockets | Phenol Formaldehyde (PF) | Threaded | 10 | Flange | Black Chromium | UL94 V-0 | Aluminum Alloy | Keyed | IP67/IP68 | 100 VAC 140 VDC | 5 A | 78.7 µin | 2 µm | Silver | Metal | Automotive Industrial Telecommunications | Copper Alloy | Black | 0.783 in | 19.9 mm |
