ADL5545 Series

30 MHzto 6 GHzRF/IF Gain Block

Catalog

30 MHzto 6 GHzRF/IF Gain Block

Part	Supplied Contents	Type	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Current - Supply	Noise Figure	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case	Test Frequency	Supplier Device Package	P1dB	RF Type	Gain

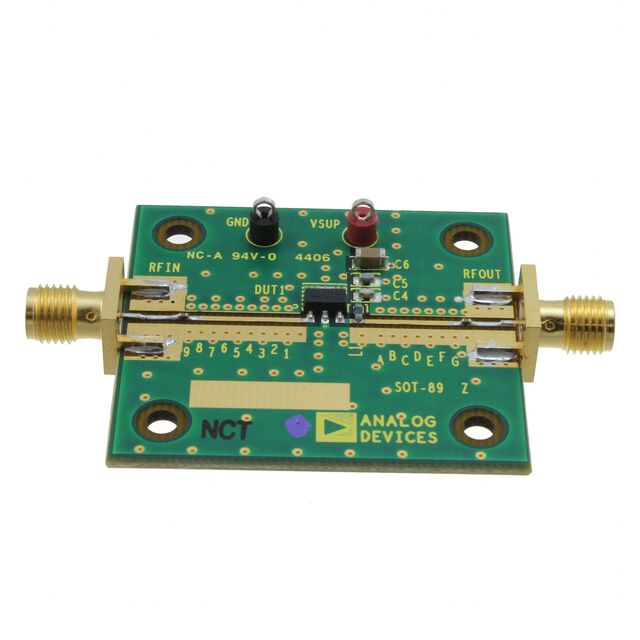

Analog Devices ADL5545-EVALZ	Board(s)	Amplifier	6 GHz	30 MHz	ADL5545

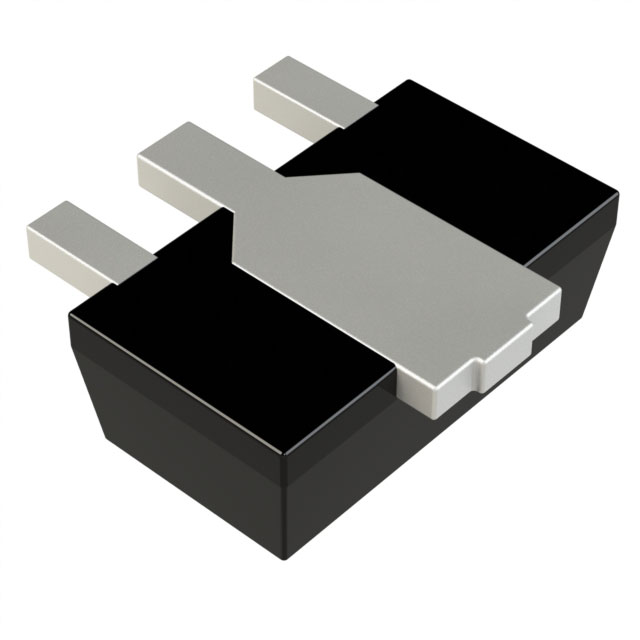

Analog Devices ADL5545ARKZ-R7			6 GHz	30 MHz		56 mA	2.9 dB	4.75 V	5.25 V	Surface Mount	TO-243AA	900 MHz	SOT-89-3	18.1 dBm	General Purpose	24.1 dB

Catalog

30 MHzto 6 GHzRF/IF Gain Block

Key Features

• Fixed gain of 24.1 dB

• Broadband operation from 30 MHz

• to 6 GHz

• Input/output internally matched to

• 50 Ω

• Integrated bias control circuit

• OIP3 of 36.4 dBm at 900 MHz

• P1dB of 18.1 dBm at 900 MHz

• Noise figure of 2.9 dB at 900 MHz

• Single 5 V power supply

• Low quiescent current of 56 mA

• Wide operating temperature range of −40°C to +105°C

• Thermally efficient SOT-89 package

• ESD rating of ±1.5 kV (Class 1C)

Description

The ADL5545 is a single-ended RF/IF gain block amplifier that provides broadband operation from 30 MHz to 6 GHz. The ADL5545 provides over 36 dBm of OIP3 using only 56 mA from a 5 V supply.The ADL5545 provides a gain of 24 dB, which is stable over frequency, temperature, power supply, and from device to device. The amplifier is offered in the industry-standard SOT-89 package and is internally matched to 50 Ω at the input and output, making the ADL5545 very easy to implement in a wide variety of applications. The only external components required are the input/output ac coupling capacitors, power supply decoupling capacitors, and dc bias inductor.The ADL5545 is fabricated on an InGaP HBT process and has a high ESD rating of ±1.5 kV (Class 1C). The ADL5545 is also fully specified for operation across the wide temperature range of −40°C to +105°C. A fully populated RoHS-compliant evaluation board is available.
