AOV15 Series

Catalog

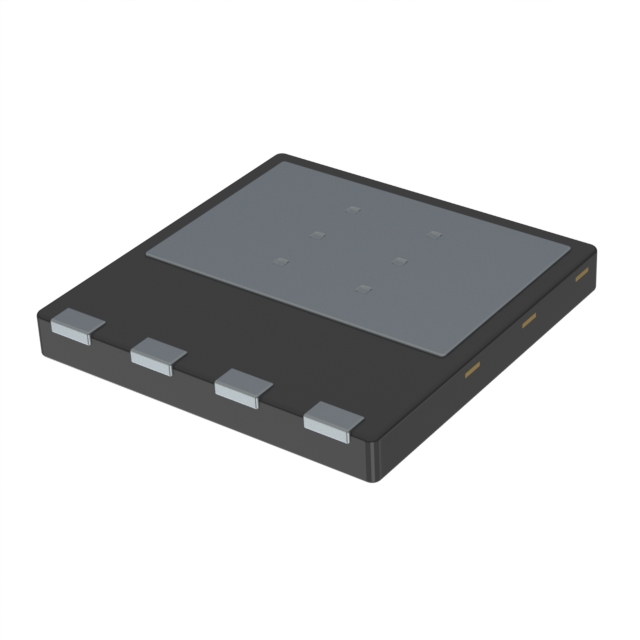

MOSFET N-CH 600V 520MA/12A 4DFN

Part	Technology	Package / Case	Current - Continuous Drain (Id) @ 25°C	FET Type	Power Dissipation (Max)	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Vgs (Max)	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Supplier Device Package
Alpha & Omega Semiconductor Inc. AOV15S60	MOSFET (Metal Oxide)	4-PowerTSFN	12 A 520 mA	N-Channel	208 W	8.3 W	3.8 V	10 V	600 V	30 V	360 mOhm	150 °C	-55 °C	717 pF	Surface Mount	4-DFN (8x8)
