GT32 Series

Catalog

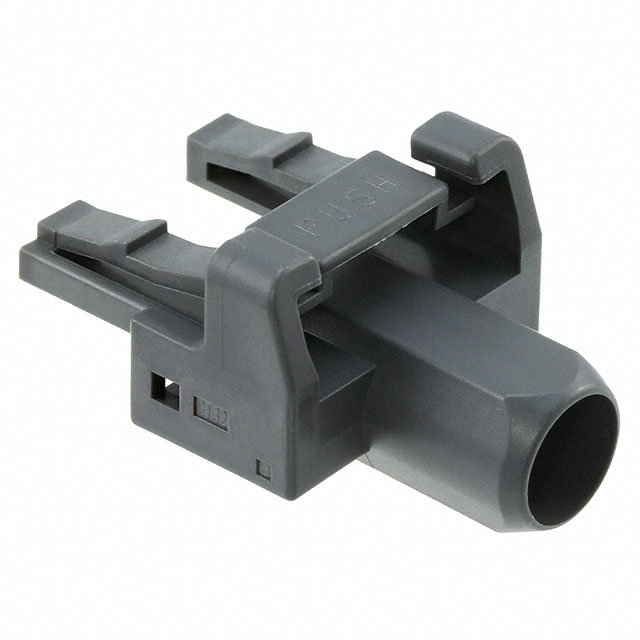

CONN COAX PLUG HSG INLINE

Part	For Use With/Related Products	Number of Positions	Termination	Insulation Color	Contact Shape	Number of Positions Loaded	Number of Rows [custom]	Insulation Height	Insulation Height	Insulation Material	Contact Type	Connector Type	Features	Shrouding	Mounting Type	Style	Contact Finish - Post	Fastening Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Note	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Voltage Rating	Accessory Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Method	Tool Type
Hirose Electric Co Ltd GT32-19DP-HUB	GT32 Series	19

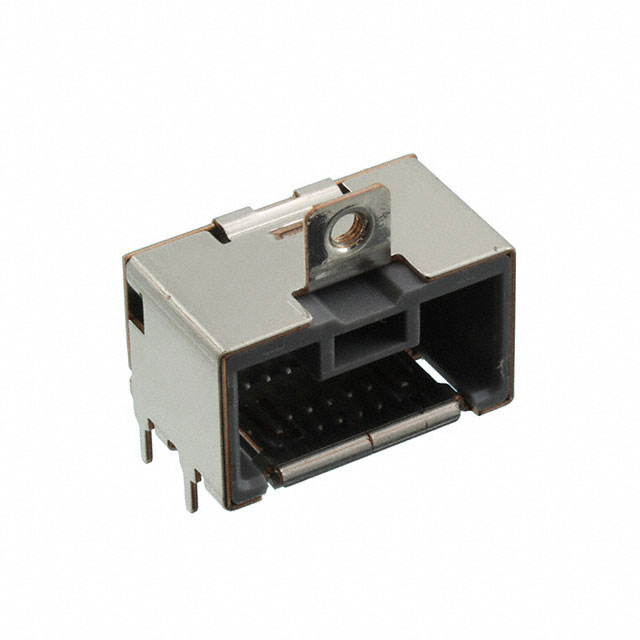

Hirose Electric Co Ltd GT32-19DP-0.75H		19	Solder	Gray	Square	All	2	0.501 in	12.73 mm	Polyphenylene Sulfide (PPS)	Male Pin	Header	Shielded Solder Retention	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Tin	Latch Holder
Hirose Electric Co Ltd GT32-4DS-HU(B)		4					2			Polybutylene Terephthalate (PBT)	Female Socket	Receptacle			Free Hanging (In-Line)			Latch Lock	0.059 in	1.5 mm	-40 C	105 ░C	Gray	Crimp

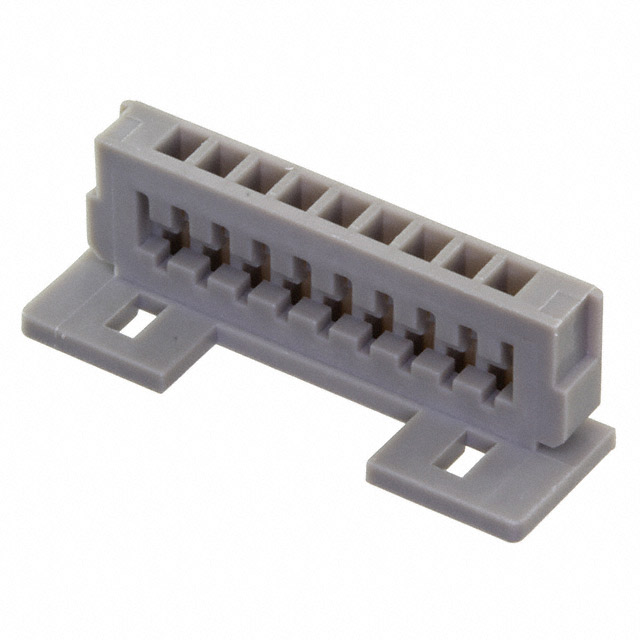

Hirose Electric Co Ltd GT32-19DS-0.75CA		19								Polybutylene Terephthalate (PBT)	Female Socket	Socket			Free Hanging (In-Line)				0.059 in	1.5 mm	-40 C	105 ░C	Gray	Crimp	Contacts Not Included	1
Hirose Electric Co Ltd GT32-4DP-1.5H(B)(12)		4	Solder	Green	Rectangular	All	2	0.441 in	11.2 mm	Nylon Polyamide (PA)	Male Pin	Header	Solder Retention	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Tin	Latch Lock			-40 C	105 ░C					0.059 in	1.5 mm	Copper Alloy	30 VAC

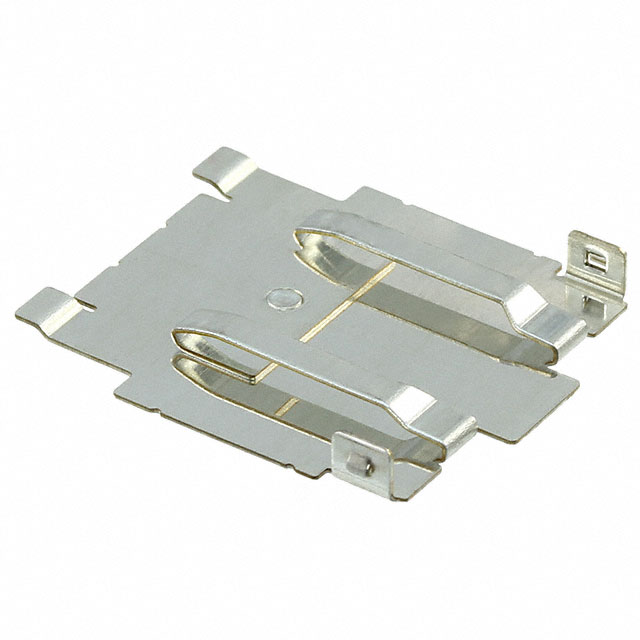

Hirose Electric Co Ltd GT32-10S-SC	GT32 Series	10																													Shield Plate

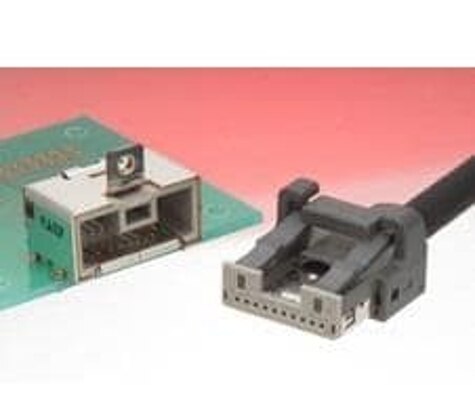

Hirose Electric Co Ltd GT32-4DS-HU		4					2			Polybutylene Terephthalate (PBT)	Female Socket	Receptacle			Free Hanging (In-Line)			Latch Lock	0.059 in	1.5 mm	-40 C	105 ░C	Gray	Crimp

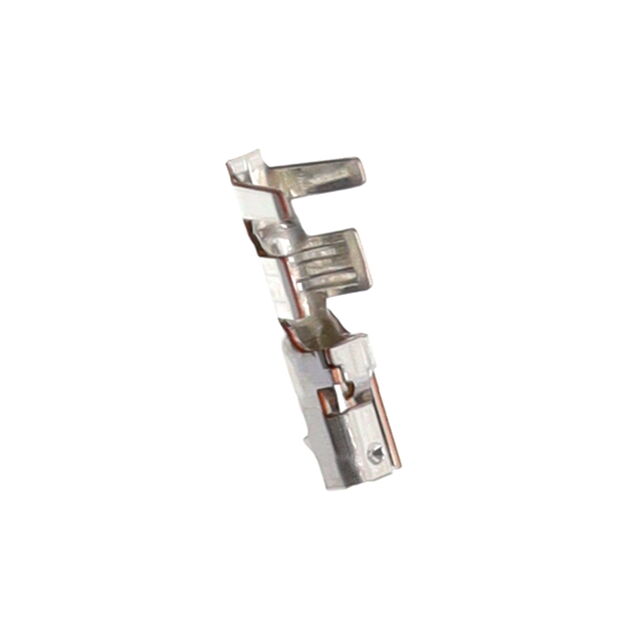

Hirose Electric Co Ltd GT32-2428SCF																								Crimp								24 AWG	28 AWG
Hirose Electric Co Ltd GT32-4DP-1.5H(D)(10)		4	Solder		Rectangular	All	2	0.619 "	15.73 mm		Male Pin	Header		Shrouded - 4 Wall	Through Hole	Board to Cable/Wire																		1.6 mm	0.063 in	0.75 mm	0.03 in
Hirose Electric Co Ltd GT32-10S-6/CR-MP(01)	Rectangular Contacts																																					24 AWG	28 AWG	Automated	Applicator for Bench Press
