DF3-5 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER SMD 5POS 2MM
| Part | Termination | Material Flammability Rating | Features | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Shape | Contact Type | Shrouding | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Material | Current Rating (Amps) | Style | Number of Rows | Fastening Type | Insulation Color | Mounting Type | Contact Finish - Post | Convert From (Adapter End) | Pitch [x] | Pitch [x] | Convert To (Adapter End) | Mated Stacking Heights [Min] [z] | Mated Stacking Heights [Max] [z] | Voltage Rating | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Contact Finish | Wire Gauge | Wire Type | Cable Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Solder | UL94 V-0 | Board Guide | Nylon Polyamide (PA) | -55 C | 105 ░C | 5 | Circular | Male Pin | Shrouded - 4 Wall | 0.079 " | 2 mm | Header | All | 5.9 mm | 0.232 in | Brass | 3 A | Board to Board Cable | 1 | Push-Pull | Beige | Surface Mount | Tin | |||||||||||||||||||||||
 Hirose Electric Co Ltd | 5 | 1 | Panel Mount Snap-In | Male Pins Plug | 0.079 in | 2 mm | Plug Male Pins | ||||||||||||||||||||||||||||||||||||||||

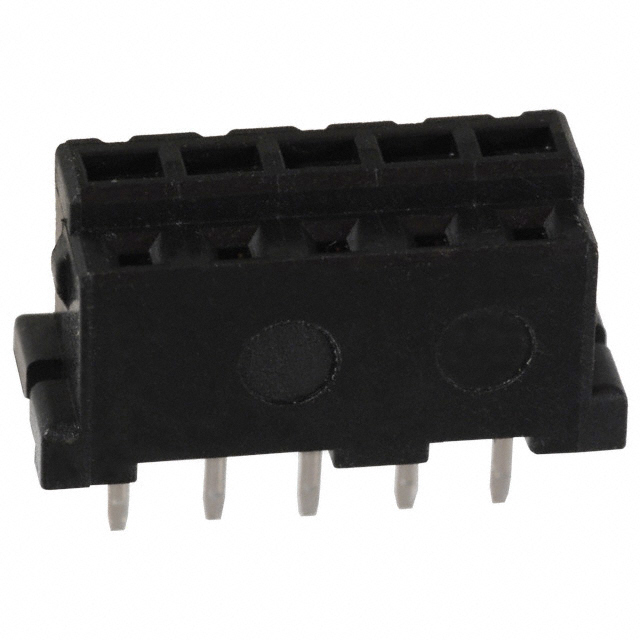

 Hirose Electric Co Ltd | Solder | UL94 V-0 | Nylon Polyamide (PA) | -30 ░C | 85 °C | 5 | Square | Female Socket | 0.079 " | 2 mm | Receptacle | All | 5.9 mm | 0.232 in | Phosphor Bronze | 3 A | Board to Board Cable | 1 | Friction Lock | Black | Through Hole | Tin | 6.6 mm | 7.5 mm | 30 VAC | Gold | 0.118 in | 3 mm | |||||||||||||||||||

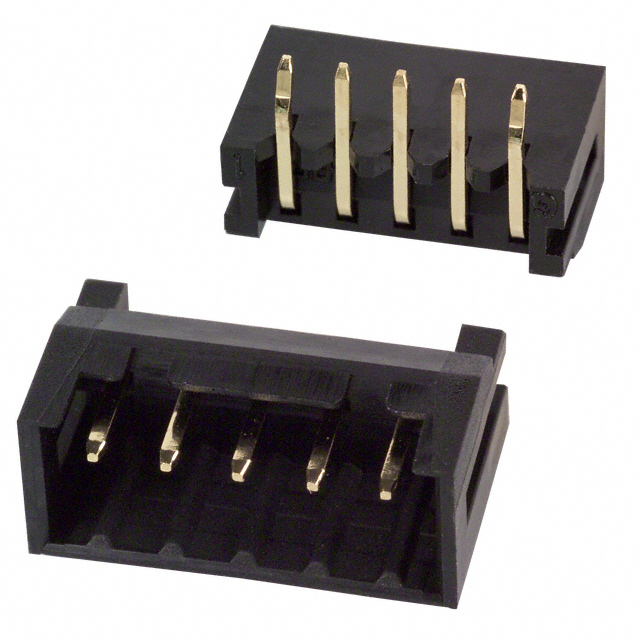

 Hirose Electric Co Ltd | Press-Fit Solder | UL94 V-0 | Nylon Polyamide (PA) | -55 C | 105 ░C | 5 | Square | Male Pin | Shrouded - 4 Wall | 0.079 " | 2 mm | Header | All | 5 mm | 0.197 " | Brass | 3 A | Board to Board Cable | 1 | Push-Pull | Black | Right Angle Through Hole | Gold | 0.122 in | 3.1 mm | 0.114 in | 2.9 mm | 8 µin | 0.203 µm | ||||||||||||||||||

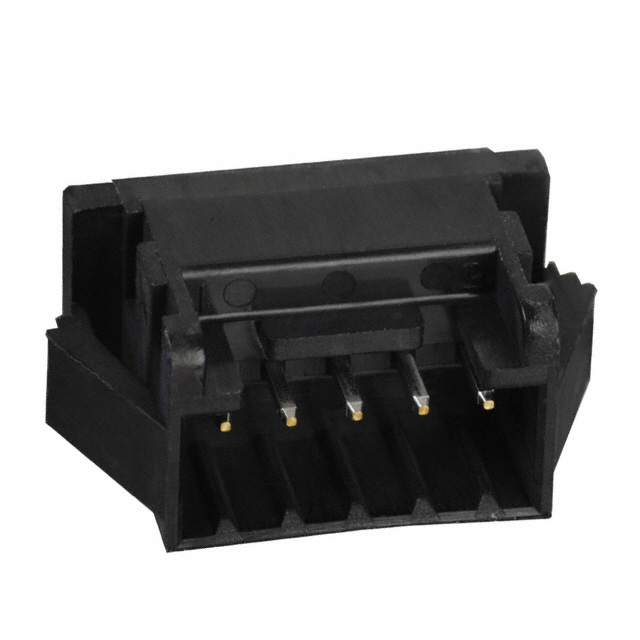

 Hirose Electric Co Ltd | Closed End | 5 | Female Socket | Receptacle | 1 | Free Hanging (In-Line) | 0.079 in | 2 mm | Black | Tin | 28 AWG | Discrete | IDC | ||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Solder | UL94 V-0 | Nylon Polyamide (PA) | -30 ░C | 85 °C | 5 | Square | Female Socket | 0.079 " | 2 mm | Receptacle | All | 5.9 mm | 0.232 in | Phosphor Bronze | 3 A | Board to Board Cable | 1 | Friction Lock | Black | Through Hole | Tin | 6.6 mm | 7.5 mm | 30 VAC | Gold | 0.118 in | 3 mm | 8 µin | 0.203 µm | 39.4 çin | 1 çm | |||||||||||||||

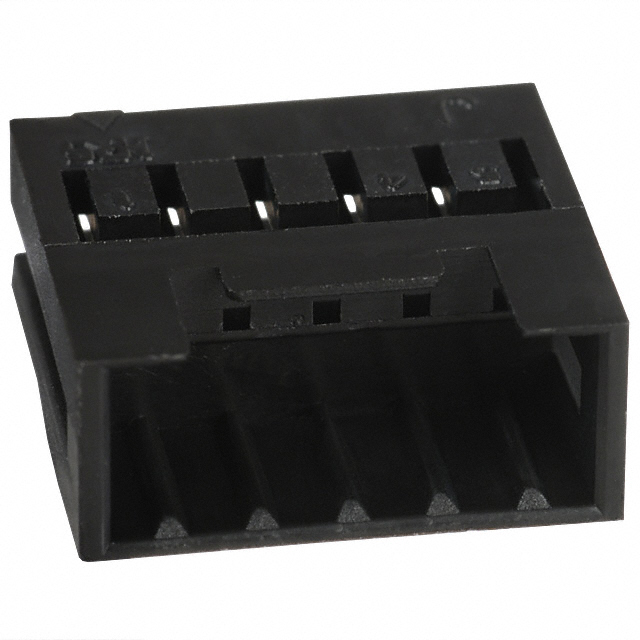

Hirose Electric Co Ltd | Closed End | 5 | Female Socket | Receptacle | 1 | Free Hanging (In-Line) | 0.079 in | 2 mm | Black | Tin | 28 AWG | Discrete | IDC |
