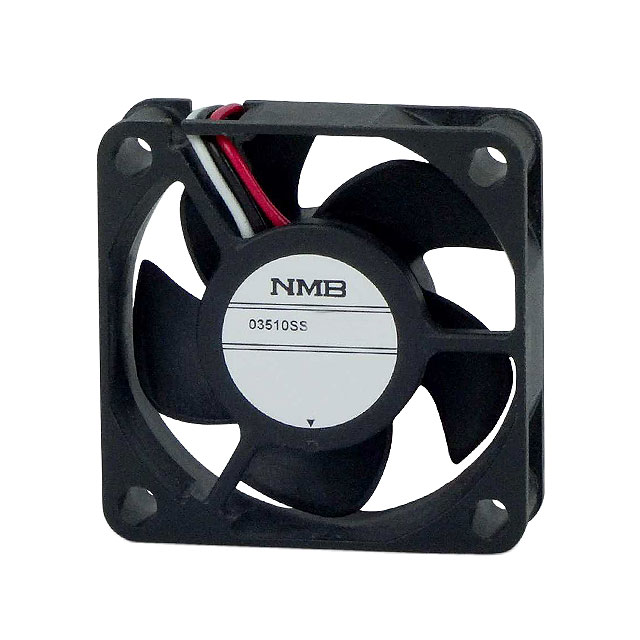

03510SS Series

Catalog

DC AXIAL FAN, 5 V, SQUARE, 35 MM, 10 MM, SLEEVE BEARING, 4.2 CFM

Part	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Material - Blade	Lifetime	RPM	Width	Static Pressure	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Air Flow	Voltage - Rated	Bearing Type	Power (Watts)	Fan Type	Termination Leads Count	Termination Type	Termination	Noise	Operating Temperature (Max)	Operating Temperature (Min)	Features	Weight
NMB TECHNOLOGIES 03510SS-05M-AA-00	120 mA	5.5 VDC	4.5 VDC	Plastic	Plastic	30000 Hrs	8000 RPM	10 mm	0.16 in H2O	35 mm	Square	35 mm	4.2 CFM	5 VAC	Sleeve	600 mW	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	22.4 dB	158 °F	14 °F	Auto Restart
NMB TECHNOLOGIES 03510SS-05N-AT-00	0.2 A	5.5 VDC	4.5 VDC	Plastic	Plastic		10000 RPM	10 mm	0.23 in H2O	35 mm	Square	35 mm	5.6 CFM	5 VAC	Sleeve	1 W	Tubeaxial	3	Wire Leads	3 Wire Leads	27 dB	158 °F	14 °F	Speed Sensor (Tach)	0.023 lb
NMB TECHNOLOGIES 03510SS-12M-AA-00	50 mA	13.2 VDC	6 VDC	Plastic	Plastic	30000 Hrs	8000 RPM	10 mm	0.16 in H2O	35 mm	Square	35 mm	4.2 CFM	12 VAC	Sleeve	600 mW	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	22.4 dB	158 °F	14 °F	Auto Restart
NMB TECHNOLOGIES 03510SS-12L-AT-00				Plastic	Plastic	30000 Hrs		10 mm		35 mm	Square	35 mm		12 VAC	Sleeve		Tubeaxial	3	Wire Leads	3 Wire Leads		158 °F	14 °F	Auto Restart Speed Sensor (Tach)

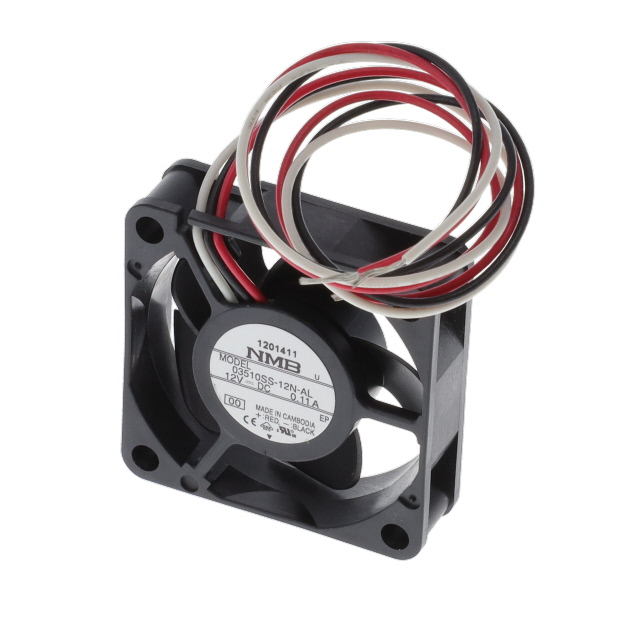

NMB TECHNOLOGIES 03510SS-12N-AL-00	70 mA	13.2 VDC	6 VDC	Plastic	Plastic	30000 Hrs	10000 RPM	10 mm	0.23 in H2O	35 mm	Square	35 mm	5.7 CFM	12 VAC	Sleeve	840 mW	Tubeaxial	3	Wire Leads	3 Wire Leads	27 dB	158 °F	14 °F	Auto Restart Locked Rotor Sensor

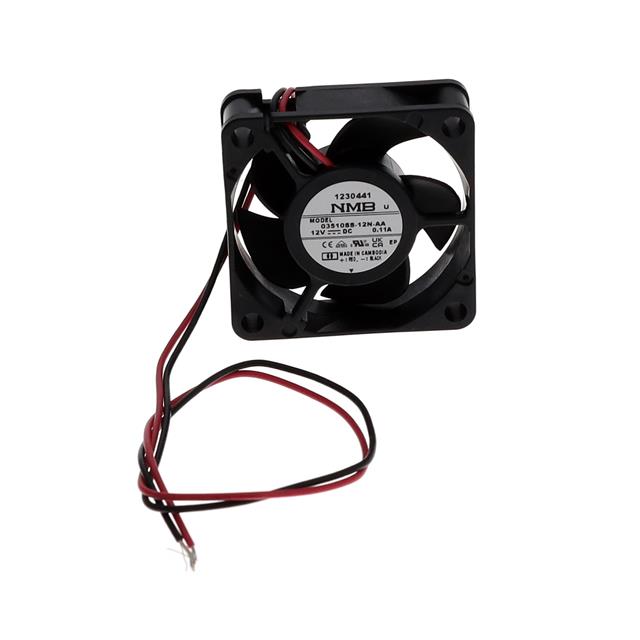

NMB TECHNOLOGIES 03510SS-12N-AA-00	70 mA	13.2 VDC	6 VDC	Plastic	Plastic	30000 Hrs	10000 RPM	10 mm	0.23 in H2O	35 mm	Square	35 mm	5.7 CFM	12 VAC	Sleeve	840 mW	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	27 dB	158 °F	14 °F	Auto Restart
NMB TECHNOLOGIES 03510SS-12L-AA-00				Plastic	Plastic			10 mm		35 mm	Square	35 mm		12 VAC	Sleeve		Tubeaxial	2 leads	Wire Leads	2 Wire Leads				Auto Restart
NMB TECHNOLOGIES 03510SS-05L-AA-00				Plastic	Plastic			10 mm		35 mm	Square	35 mm		5 VAC	Sleeve		Tubeaxial	2 leads	Wire Leads	2 Wire Leads				Auto Restart
NMB TECHNOLOGIES 03510SS-05N-AL-00	0.2 A	5.5 VDC	4.5 VDC	Plastic	Plastic	30000 Hrs	10000 RPM	10 mm	0.23 in H2O	35 mm	Square	35 mm	5.7 CFM	5 VAC	Sleeve	1 W	Tubeaxial	3	Wire Leads	3 Wire Leads	27 dB	158 °F	14 °F	Auto Restart Locked Rotor Sensor

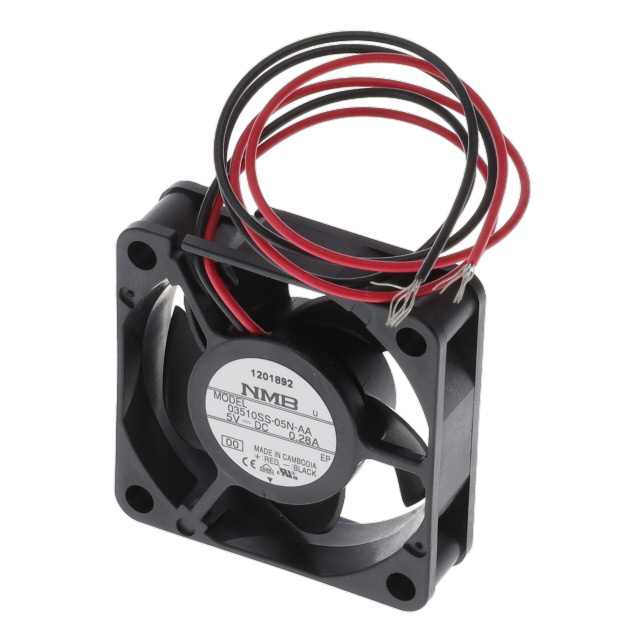

NMB TECHNOLOGIES 03510SS-05N-AA-00	0.2 A	5.5 VDC	4.5 VDC	Plastic	Plastic	30000 Hrs	10000 RPM	10 mm	0.23 in H2O	35 mm	Square	35 mm	5.7 CFM	5 VAC	Sleeve	1 W	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	27 dB	158 °F	14 °F	Auto Restart
