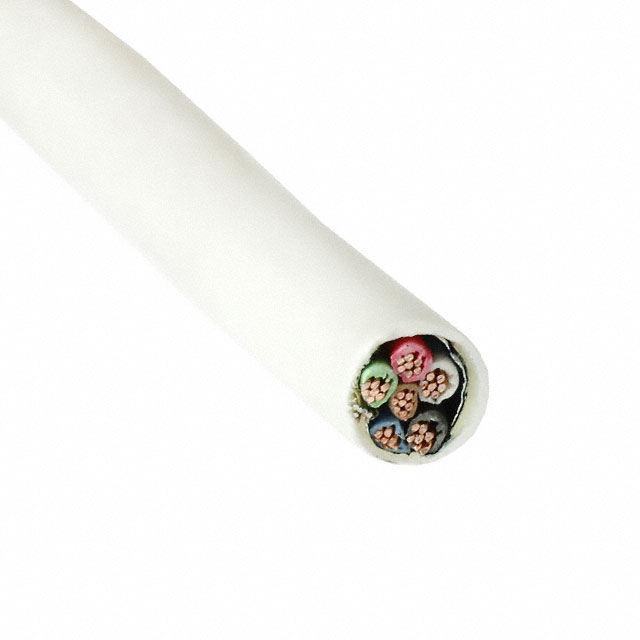

E2106S Series
Manufacturer: Prysmian Group
Beta
⌘K
CABLE 6COND 22AWG NAT SHLD 50'
| Part | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Shield Coverage | Jacket Color | Wire Gauge | Shield Material | Shield Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Voltage | Features | Number of Conductors | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 15.24 m 304.8 m | 50 ft 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 100 % | Natural | 22 AWG | Flexfoil® | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | ||
 Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 304.8 m | 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | Gray | 22 AWG | Foil | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | |||||
 Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 304.8 m | 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 100 % | Natural | 22 AWG | Flexfoil® | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | ||
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 15.24 m 304.8 m | 50 ft 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | White | 22 AWG | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | 7.62 m 30.5 m | 25 ft 100 ft | ||
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 304.8 m | 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | Natural | 22 AWG | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | ||||
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 304.8 m | 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 100 % | Gray | 22 AWG | Flexfoil® | Foil | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | |||
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 304.8 m | 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 100 % | White | 22 AWG | Flexfoil® | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | 7.62 m 30.5 m | 25 ft 100 ft |
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 15.24 m 304.8 m | 50 ft 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | Natural | 22 AWG | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | 7.62 m 30.5 m | 25 ft 100 ft | ||
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 152.4 m | 500 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 100 % | Natural | 22 AWG | Flexfoil® | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor | ||
Prysmian Group | 0.381 mm | 0.015 in | 0.176 in | 4.47 mm | 304.8 m | 1000 ft | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | Natural | 22 AWG | Foil | Alarm Security Sound | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Bare | 300 VDC | Drain Wire | 6 | Multi-Conductor |
