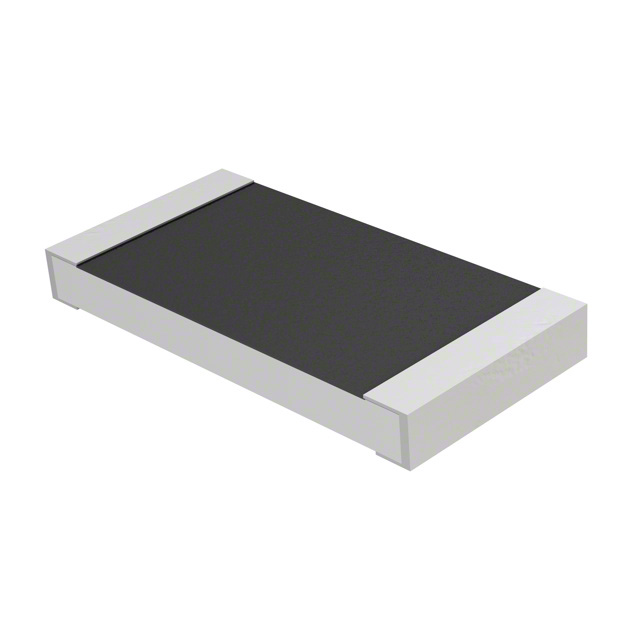

RMCP1210F Series

Catalog

RES 143K OHM 1% 2/3W 1210

...

Part	Power (Watts)	Power (Watts)	Supplier Device Package	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Resistance	Composition	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Package / Case	Features	Temperature Coefficient
Stackpole Electronics Inc RMCP1210FT143K	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	143 kOhms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT3R48	0.6666666666666666 W	0.667 W	1210		0.7 mm	0.028 "	1 %	3.48 Ohms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200	±400ppm/°C
Stackpole Electronics Inc RMCP1210FT1K15	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	1.15 kOhms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT48K7	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	48.7 kOhms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT182R	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	182 Ohms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT9K53	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	9.53 kOhms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT97K6	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	97600 Ohms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT160R	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	160 Ohms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
Stackpole Electronics Inc RMCP1210FT2R00	0.6666666666666666 W	0.667 W	1210		0.7 mm	0.028 "	1 %	2 Ohms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200	±400ppm/°C
Stackpole Electronics Inc RMCP1210FT174R	0.6666666666666666 W	0.667 W	1210	100 ppm/°C	0.7 mm	0.028 "	1 %	174 Ohms	Thick Film	AEC-Q200	155 C	-55 C	2	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	Automotive AEC-Q200
