JR25WP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

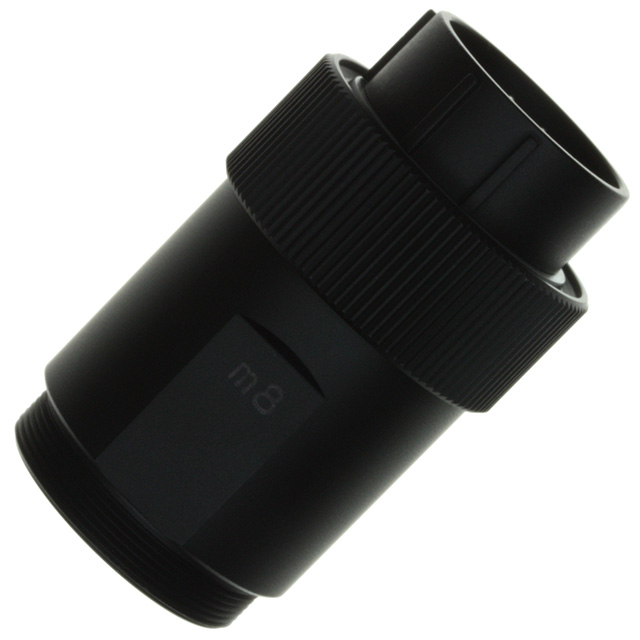

CONN PLUG FMALE 16P SOLDER CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Contact Finish - Mating | Contact Material | Connector Type | Current Rating (Amps) | Features | Applications | Shell Material | Mounting Type | Shell Size - Insert | Fastening Type | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Insert Material | Number of Positions | Material Flammability Rating | Orientation | Ingress Protection | Color | Shielding | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 78.7 µin | 2 µm | Metal | Silver | Copper Alloy | Plug Female Sockets | 10 A | Backshell Coupling Nut | Automotive Industrial Telecommunications | Aluminum Alloy | Free Hanging (In-Line) | 25 | Threaded | Black Chrome Brass | 85 °C | -25 °C | Black Chromium | Phenol Formaldehyde (PF) | 16 | UL94 V-0 | Keyed | IP67/IP68 | Black | Unshielded | 100 VAC 140 VDC |
 Hirose Electric Co Ltd | 118.1 µin | 3 µm | Metal | Silver | Copper Alloy | Plug Male Pins | 10 A | Backshell Coupling Nut | Automotive Industrial Telecommunications | Aluminum Alloy | Free Hanging (In-Line) | 25 | Threaded | Black Chrome Brass | 85 °C | -25 °C | Black Chromium | Phenol Formaldehyde (PF) | 16 | UL94 V-0 | Keyed | IP67/IP68 | Black | 100 VAC 140 VDC | |
Hirose Electric Co Ltd | |||||||||||||||||||||||||
 Hirose Electric Co Ltd | 78.7 µin | 2 µm | Metal | Silver | Phosphor Bronze | Plug Female Sockets | 15 A | Backshell Coupling Nut | Automotive Industrial Telecommunications | Aluminum Alloy | Free Hanging (In-Line) | 25 | Threaded | Black Chrome Brass | 85 °C | -25 °C | Black Chromium | Polyphenylene Sulfide (PPS) | UL94 V-0 | Keyed | IP67/IP68 | Black | 300 VAC 420 VDC | ||
Hirose Electric Co Ltd | |||||||||||||||||||||||||
 Hirose Electric Co Ltd | 78.7 µin | 2 µm | Metal | Silver | Copper Alloy | Plug Female Sockets | 5 A | Backshell Coupling Nut | Automotive Industrial Telecommunications | Aluminum Alloy | Free Hanging (In-Line) | 25 | Threaded | Black Chrome Brass | 85 °C | -25 °C | Black Chromium | Phenol Formaldehyde (PF) | 24 | UL94 V-0 | Keyed | IP67/IP68 | Black | Unshielded | 100 VAC 140 VDC |
 Hirose Electric Co Ltd |
