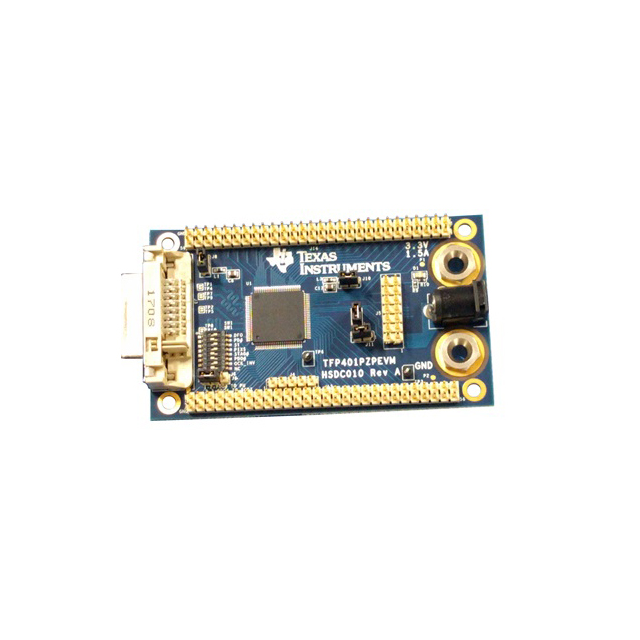

TFP401A-Q1 Series
165-MHz TMDS DVI receiver/deserializer with HSYNC & Panelbus™ integrated circuit
Manufacturer: Texas Instruments
Catalog
165-MHz TMDS DVI receiver/deserializer with HSYNC & Panelbus™ integrated circuit
Key Features
• Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 3: –40°C to 85°C ambient operating temperature rangeDevice HBM ESD classification level H2Device CDM ESD classification level C3BSupports pixel rates up to 165 MHz (including 1080p and WUXGA at 60 Hz)Digital visual interface (DVI) specification compliant(1)True-Color, 24-bit/pixel, 16.7M colors at 1 or 2 pixels per clockLaser-trimmed internal termination resistors for optimum fixed impedance matchingSkew tolerant up to one pixel-clock cycle4× oversamplingReduced power consumption: 1.8-V core operation with 3.3-V I/Os and supplies(2)Reduced ground bounce using time-staggered pixel outputsLow noise and good power dissipation using TI PowerPAD™ packagingAdvanced technology using TI 0.18-µm EPIC-5™ CMOS processTFP401A-Q1 Incorporates HSYNC Jitter Immunity(3)(1)The TFP401A-Q1 device incorporates additional circuitry to create a stable HSYNC from DVI transmitters that introduce undesirable jitter on the transmitted HSYNC signal.(2)The TFP401A-Q1 device has an internal voltage regulator that provides the 1.8-V core power supply from the external 3.3-V supplies.(3)The Digital Visual Interface Specification, DVI, is an industry standard developed by the Digital Display Working Group (DDWG) for high-speed digital connection to digital displays. The TFP401A-Q1 is compliant with the DVI Specification Rev. 1.0.Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 3: –40°C to 85°C ambient operating temperature rangeDevice HBM ESD classification level H2Device CDM ESD classification level C3BSupports pixel rates up to 165 MHz (including 1080p and WUXGA at 60 Hz)Digital visual interface (DVI) specification compliant(1)True-Color, 24-bit/pixel, 16.7M colors at 1 or 2 pixels per clockLaser-trimmed internal termination resistors for optimum fixed impedance matchingSkew tolerant up to one pixel-clock cycle4× oversamplingReduced power consumption: 1.8-V core operation with 3.3-V I/Os and supplies(2)Reduced ground bounce using time-staggered pixel outputsLow noise and good power dissipation using TI PowerPAD™ packagingAdvanced technology using TI 0.18-µm EPIC-5™ CMOS processTFP401A-Q1 Incorporates HSYNC Jitter Immunity(3)(1)The TFP401A-Q1 device incorporates additional circuitry to create a stable HSYNC from DVI transmitters that introduce undesirable jitter on the transmitted HSYNC signal.(2)The TFP401A-Q1 device has an internal voltage regulator that provides the 1.8-V core power supply from the external 3.3-V supplies.(3)The Digital Visual Interface Specification, DVI, is an industry standard developed by the Digital Display Working Group (DDWG) for high-speed digital connection to digital displays. The TFP401A-Q1 is compliant with the DVI Specification Rev. 1.0.
Description
AI
The Texas Instruments TFP401 and TFP401A are TI PanelBus™ flat-panel display products, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP401/401A finds applications in any design requiring high-speed digital interface.
The TFP401 and TFP401A supports display resolutions up to 1080p and WUXGA in 24-bit true-color pixel format. The TFP401 and TFP401A offers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels, and provides an option for time-staggered pixel outputs for reduced ground bounce.
PowerPAD advanced packaging technology results in best-of-class power dissipation, footprint, and ultralow ground inductance.
The TFP401 and TFP401A combinesPanelBuscircuit innovation with TI’s advanced 0.18-µm EPIC-5 CMOS process technology, along with TI PowerPAD package technology to achieve a reliable, low-powered, low-noise, high-speed digital interface solution.
The Texas Instruments TFP401 and TFP401A are TI PanelBus™ flat-panel display products, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP401/401A finds applications in any design requiring high-speed digital interface.
The TFP401 and TFP401A supports display resolutions up to 1080p and WUXGA in 24-bit true-color pixel format. The TFP401 and TFP401A offers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels, and provides an option for time-staggered pixel outputs for reduced ground bounce.
PowerPAD advanced packaging technology results in best-of-class power dissipation, footprint, and ultralow ground inductance.
The TFP401 and TFP401A combinesPanelBuscircuit innovation with TI’s advanced 0.18-µm EPIC-5 CMOS process technology, along with TI PowerPAD package technology to achieve a reliable, low-powered, low-noise, high-speed digital interface solution.
