Passive SMT Freq. Doubler, 1.25 - 3.0 GHz
Key Features
• Conversion Loss: 15 dB
• Fo, 3Fo, 4Fo Isolation: 45 dB
• Input Drive Level: 10 to 20 dBm
Description
AI

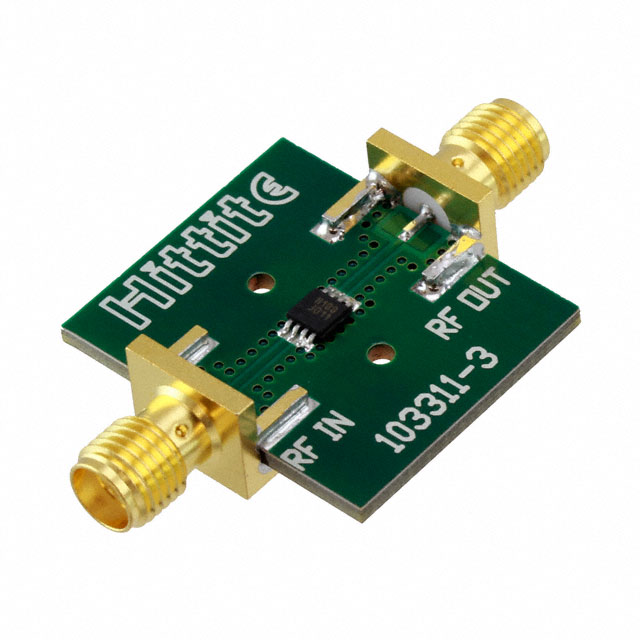

The HMC188MS8(E) is a miniature frequency doubler in plastic 8-lead MSOP package. The suppression of undesired fundamental and higher order harmonics is 45 dB typical with respect to input signal levels. The doubler uses the same diode/balun technology used in Hittite MMIC mixers. The doubler is ideal for high volume applications where frequency doubling of a lower frequency is more economical than directly generating a higher frequency. The passive Schottky diode doubler technology contributes no measurable additive phase noise onto the multiplied signal.ApplicationsWireless Local LoopLMDS, VSAT, and Point-to-Point RadiosUNII & HiperLANTest Equipment
