ESDALC6V1-1U2 Series

Single line low capacitance Transil™, transient surge voltage suppressor (TVS) for ESD protection

Catalog

Single line low capacitance Transil™, transient surge voltage suppressor (TVS) for ESD protection

Part	Applications	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Mounting Type	Unidirectional Channels [custom]	Capacitance @ Frequency	Type	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)
STMicroelectronics ESDALC6V1-1U2	General Purpose	0201	6.1 V	-40 °C	125 ¯C	0603 Metric	0201	Surface Mount	1	12 pF	Zener	3 V	20 W
STMicroelectronics ESDALC6V1-5P6	General Purpose	SOT-666	6.1 V	-40 °C	125 ¯C		SOT-563 SOT-666	Surface Mount	5	12 pF	Zener	5 V	30 W	14 V	2.5 A

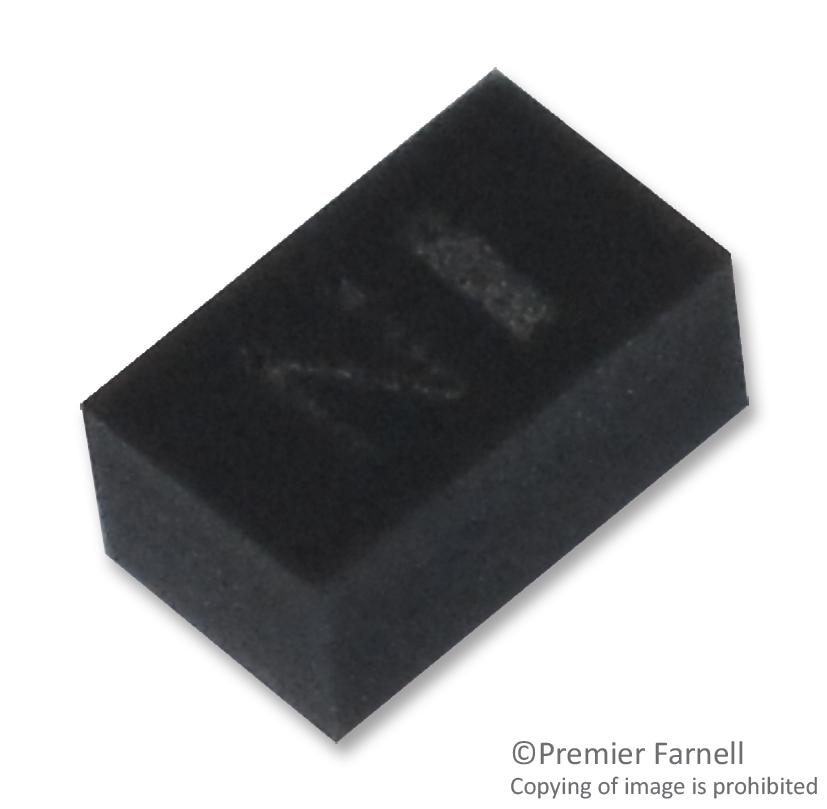

STMicroelectronics ESDALC6V1-1M2	General Purpose	SOD-882	6.1 V	-40 °C	125 ¯C		SOD-882	Surface Mount	1		Zener	3 V	50 W

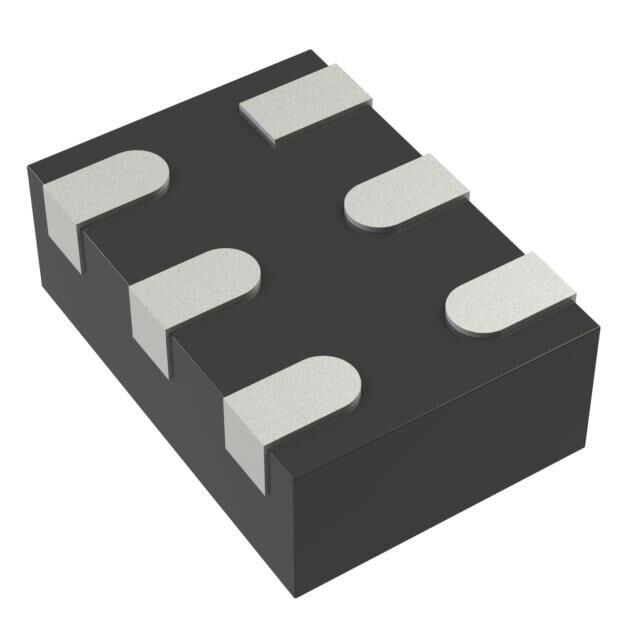

STMicroelectronics ESDALC6V1-5M6	General Purpose	6-µQFN (1.45x1.0)	6.1 V	-40 °C	125 ¯C		6-UFDFN	Surface Mount	5	12 pF	Zener	3 V	30 W

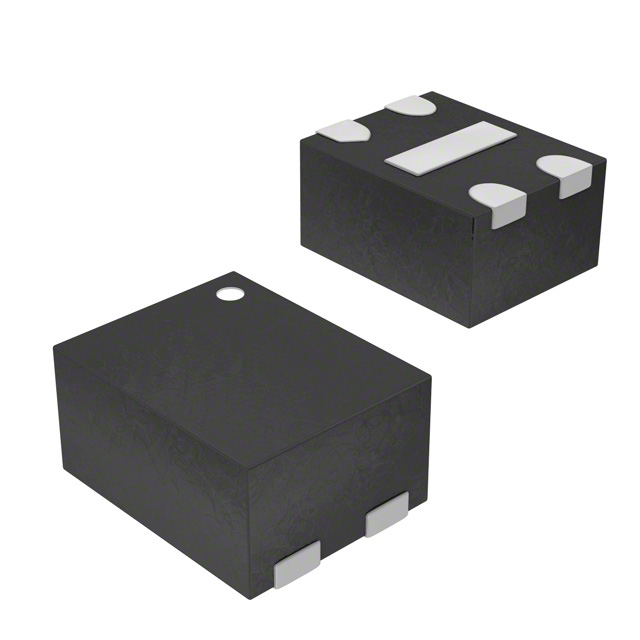

STMicroelectronics ESDALC6-4N4	General Purpose	4-uQFN (1x0.8)	6 V				4-XFDFN Exposed Pad	Surface Mount	4	9.5 pF	Zener	3 V	27 W	10 V	1 A

Catalog

Single line low capacitance Transil™, transient surge voltage suppressor (TVS) for ESD protection

Key Features

• Benefits

- High ESD robustness of the equipment

- Suitable for high density boards

• Complies with the following standards:

- IEC 61000-4-2 level 4:15 kV (air discharge)8 kV (contact discharge)

- MIL STD 883G - Method 3015-7: class 3BHBM (Human body model)

Description

The ESDALC6V1-5P6 is a monolithic array designed to protect up to 5 lines against ESD transients. The device is ideal for high speed interface applications where both reduced printed circuit board space and power absorption capability are required.
