GBPC2510 Series

Catalog

BRIDGE RECTIFIER DIODE, SINGLE, 1 KV, 25 A, MODULE, 1.1 V, 4 ROHS COMPLIANT: YES

Part	Voltage - Peak Reverse (Max) [Max]	Technology	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Diode Type

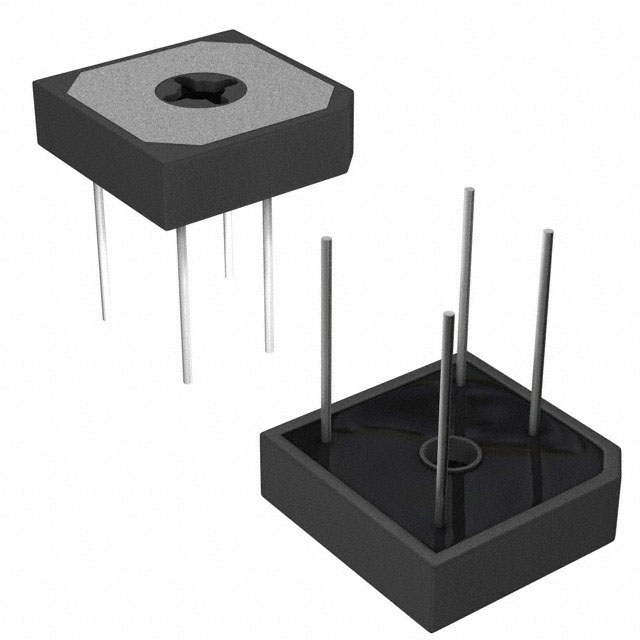

Vishay General Semiconductor - Diodes Division GBPC2510W-E4/51	1000 V	Standard	Through Hole	5 µA	4-Square GBPC-W	-55 °C	150 °C	25 A	GBPC-W	1.1 V	Single Phase
Vishay General Semiconductor - Diodes Division VS-GBPC2510W	1000 V	Standard	Through Hole	2 mA	4-Square GBPC-W	-55 °C	150 °C	25 A	GBPC-W	1.1 V	Single Phase
Vishay General Semiconductor - Diodes Division GBPC2510W(UM)E4/51	1000 V	Standard	Through Hole	5 µA	4-Square GBPC-W	-55 °C	150 °C	25 A	GBPC-W	1.1 V	Single Phase
