1619FT Series

Catalog

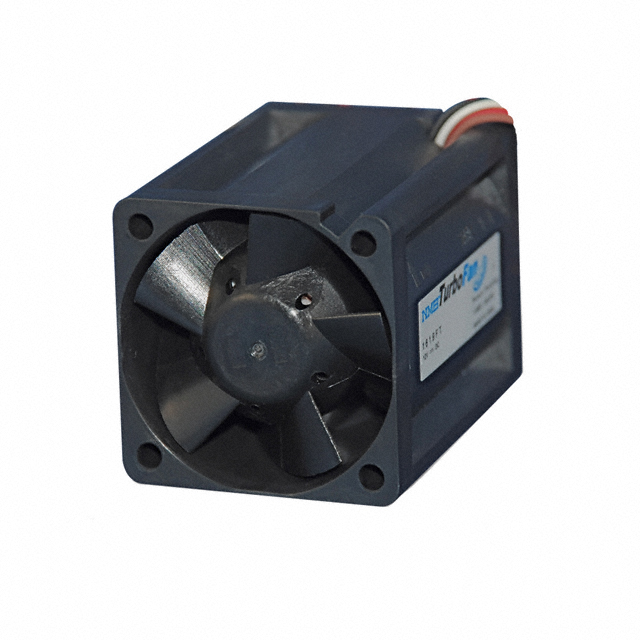

FAN AXIAL 40X48MM 12VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Weight [custom]	Weight [custom]	Features	Width [y]	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	Termination	Approval Agency	Noise	Power (Watts)	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	RPM	Bearing Type
NMB TECHNOLOGIES 1619FT-04W-B86-B00	0.809 m³/min	28.9 CFM	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	1.05 A	0.156 lb	70.76 g	Locked Rotor Sensor	48 mm	820 Pa	3.29 in H2O	40 mm	40 mm	3 Wire Leads	UL VDE	62 dB(A)	12.6 W	Tubeaxial	-10 °C	60 °C	12 VDC	23000 RPM	Ball
NMB TECHNOLOGIES 1619FT-04W-B86-B50	0.809 m³/min	28.9 CFM	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	1.05 A	0.156 lb	70.76 g	PWM Control Speed Sensor (Tach)	48 mm	820 Pa	3.29 in H2O	40 mm	40 mm	4 Wire Leads	UL VDE	62 dB(A)	12.6 W	Tubeaxial	-10 °C	60 °C	12 VDC	23000 RPM	Ball
