A3E-50PA Series

Catalog

CONN HEADER VERT 50POS 2MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows [custom]	Contact Finish - Post	Connector Type	Insulation Color	Termination	Contact Length - Post	Contact Length - Post	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Voltage Rating	Insulation Material	Shrouding	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Material Flammability Rating	Contact Type	Style	Row Spacing - Mating	Row Spacing - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]

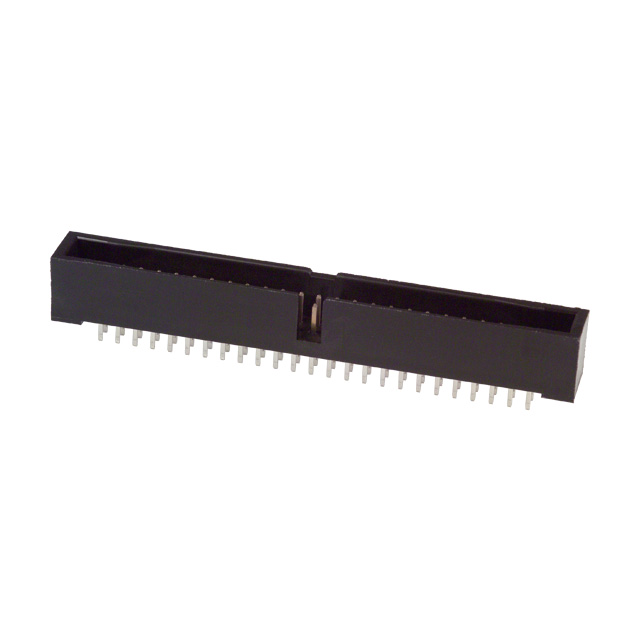

Hirose Electric Co Ltd A3E-50PA-2DSA(71)	78.7 µin	2 µm	All	Through Hole	-55 C	85 °C	0.5 A	2	Tin	Header	Black	Solder	0.118 in	3 mm	Square	Push-Pull	7.87 mm	0.31 in	Keying Slot	8 µin	0.203 µm	Brass	12 VDC	Nylon Polyamide (PA)	Shrouded - 4 Wall	Gold	0.079 "	2 mm	50	UL94 V-0	Male Pin	Board to Board Cable	2 mm	0.079 in
Hirose Electric Co Ltd A3E-50PA-2DSA	78.7 µin	2 µm	All	Through Hole	-55 C	85 °C	0.5 A	2	Tin	Header	Black	Solder	0.118 in	3 mm	Square	Push-Pull	7.87 mm	0.31 in	Keying Slot	8 µin	0.203 µm	Brass	12 VDC	Nylon Polyamide (PA)	Shrouded - 4 Wall	Gold	0.079 "	2 mm	50	UL94 V-0	Male Pin	Board to Board Cable	2 mm	0.079 in
Hirose Electric Co Ltd A3E-50PA-2DSA(51)			All	Through Hole	-55 C	85 °C	0.5 A	2		Header	Black	Solder	0.118 in	3 mm	Square	Push-Pull	7.87 mm	0.31 in				Brass	125 VAC	Nylon Polyamide (PA)	Shrouded - 4 Wall	Gold	0.079 "	2 mm	50	UL94 V-0	Male Pin	Board to Board Cable			0.1 in	2.54 mm
