2012-2 Series

Manufacturer: Oupiin

Catalog

PIN HEADER, DOUBLE ROW, 4 PIN, S

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch	Pitch	Contact Finish - Post (Mating)	Row Spacing	Row Spacing	Length - Tail	Length - Tail	Number of Positions	Contact Finish Thickness - Post (Mating) [custom]	Color	Number of Rows [custom]	Termination	Mounting Type	Length - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [custom]	Length - Stack Height [custom]
Oupiin 2012-2X02G00S-030-056J	5.6 mm	0.22 "	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	3 mm	0.118 in	4	Flash	Black	2	Solder	Through Hole
Oupiin 2012-2X13G00S/030/060/T	6 mm	0.236 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	3 mm	0.118 in	26	Flash	Black	2	Solder	Through Hole

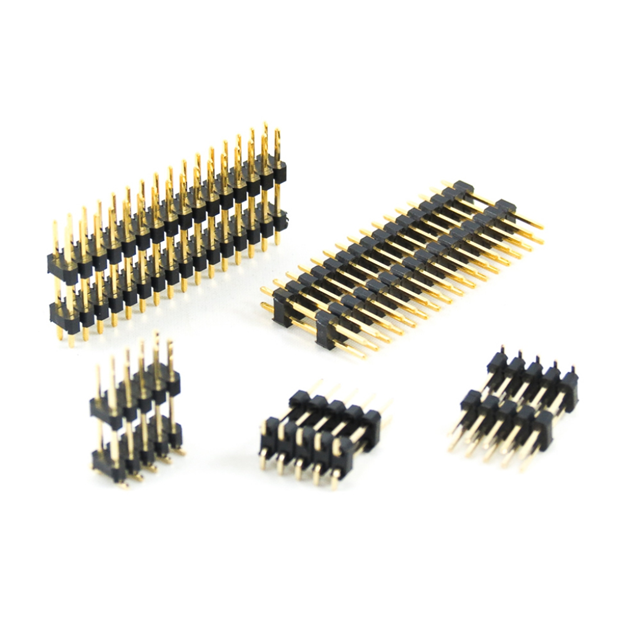

Oupiin 2012-2X06G00S-3.81-3.81-P	3.81 mm	0.15 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	3.81 mm	0.15 in	12	Flash	Black	2	Solder	Through Hole
Oupiin 2012-2X10G00S/021/062/O		0.244 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	2.1 mm	0.083 in	20	Flash	Black	2	Solder	Through Hole	6.2 mm
Oupiin 2012-2X10G00S-5.08-5.08-K	5.08 mm	0.2 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	5.08 mm	0.2 in	20	Flash	Black	2	Solder	Through Hole
Oupiin 2012-2X08G00S/062/038/T	3.8 mm	0.15 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	6.2 mm	0.244 in	16	Flash	Black	2	Solder	Through Hole
Oupiin 2012-2X07G00S/2.8/2.3/E	2.3 mm	0.091 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	2.8 mm	0.11 in	14	Flash	Black	2	Solder	Through Hole
Oupiin 2012-2X10G00S/031/066/P	6.6 mm	0.26 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	3.1 mm	0.122 in	20	Flash	Black	2	Solder	Through Hole
Oupiin 2012-2X08G00S-2.9-4.6-22.6B	4.6 mm	0.181 in	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	2.9 mm	0.114 in	16	Flash	Black	2	Solder	Through Hole		22.606 mm	0.89 in	15.1 mm	0.594 in
Oupiin 2012-2X07G00S-030-056J	5.6 mm	0.22 "	0.1 "	2.54 mm	Gold	2.54 mm	0.1 "	3 mm	0.118 in	14	Flash	Black	2	Solder	Through Hole
