LCQT-QF Series

Catalog

SOCKET ADAPTER MULT PKG TO 80QFP

Part	Contact Material - Post [custom]	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Termination Post Length	Termination Post Length	Board Material	Convert To (Adapter End)	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Convert From (Adapter End)	Number of Pins	Contact Finish - Post	Housing Material	Pitch	Pitch	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Board Thickness	Board Thickness	Board Thickness	Package Accepted	Number of Positions	Proto Board Type

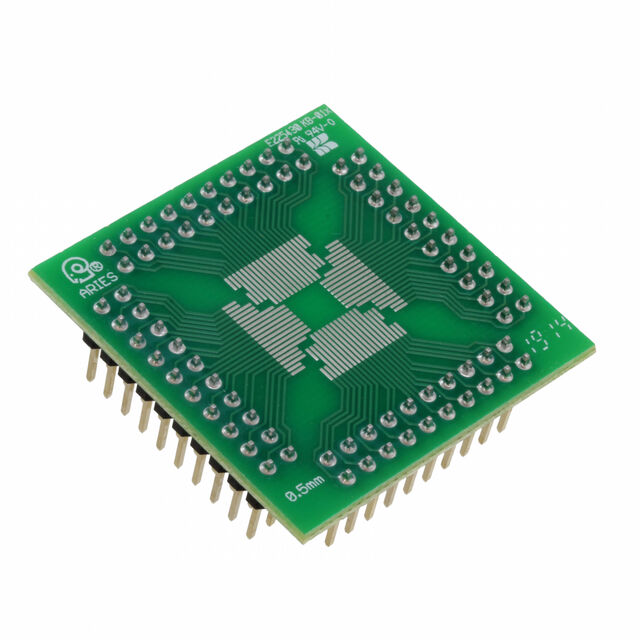

Aries Electronics LCQT-QFP0.5-80	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.5 mm	0.02 in	0.1 in	2.54 mm	Multiple Packages	80	Gold	Polyester

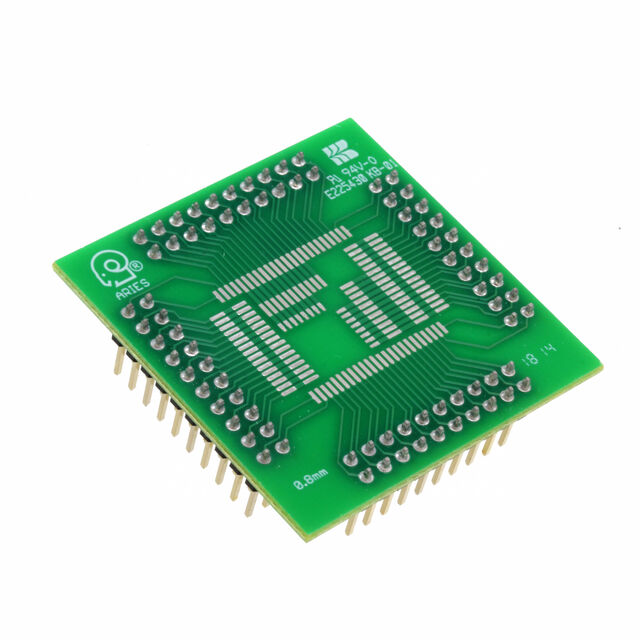

Aries Electronics LCQT-QFP0.8-80	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.8 mm	0.031 in	0.1 in	2.54 mm	Multiple Packages	80	Gold	Polyester

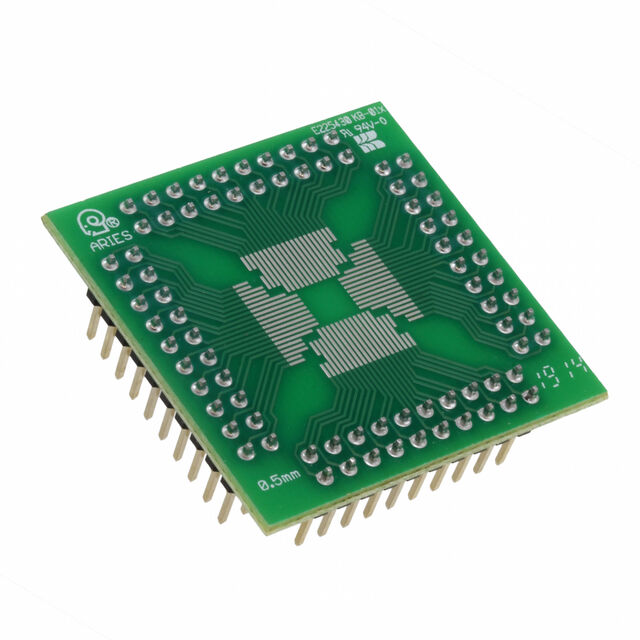

Aries Electronics LCQT-QFP0.5-64																				0.02 " 0.1 "	0.5 mm 2.54 mm	1.5 in	1.5 "	38.1 mm	38.1 mm	FR4 Epoxy Glass	1.57 mm	0.062 "	0.0625 in	QFP	64	SMD to DIP

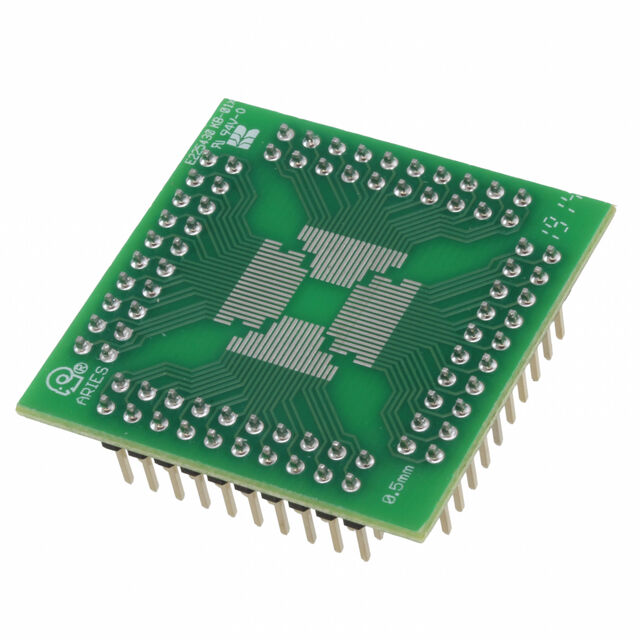

Aries Electronics LCQT-QFP0.5-40-1	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.5 mm	0.02 in	0.1 in	2.54 mm	Multiple Packages	40 pins	Gold	Polyester

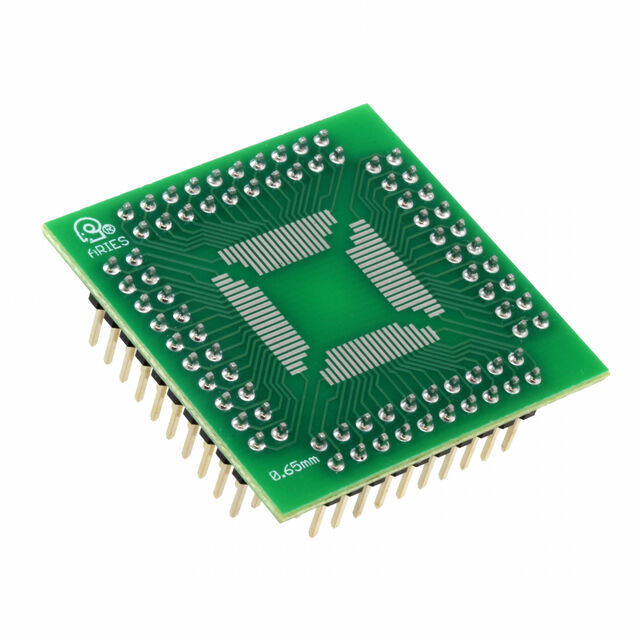

Aries Electronics LCQT-QFP0.65-52	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.65 mm	0.026 in	0.1 in	2.54 mm	Multiple Packages	52	Gold	Polyester

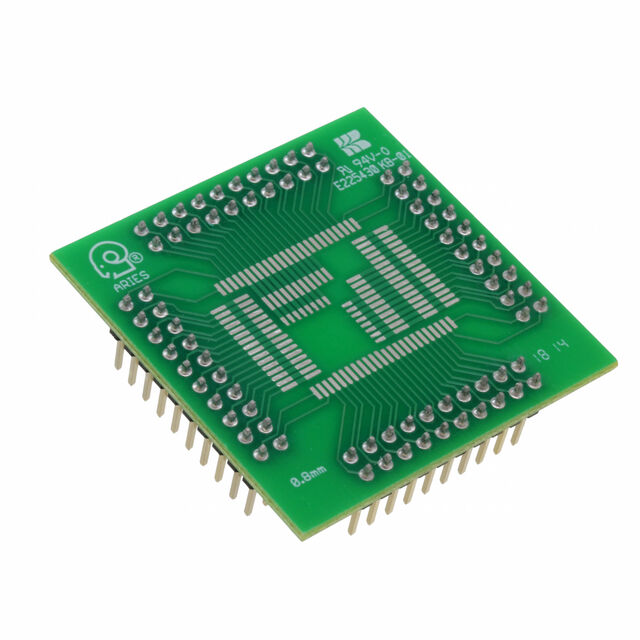

Aries Electronics LCQT-QFP0.8-64																				0.031 in 0.1 "	0.8 mm 2.54 mm	1.7 in	1.7 in	43.18 mm	43.18 mm	FR4 Epoxy Glass	1.57 mm	0.062 "	0.0625 in	QFP	64	SMD to DIP

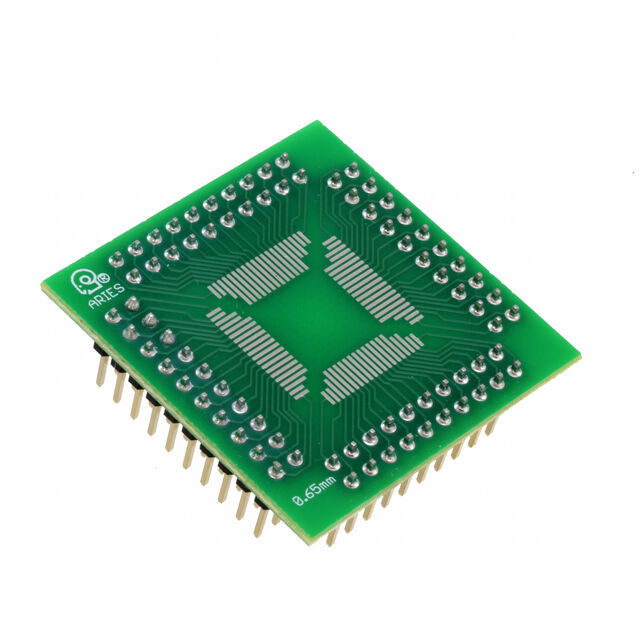

Aries Electronics LCQT-QFP0.65-80	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.65 mm	0.026 in	0.1 in	2.54 mm	Multiple Packages	80	Gold	Polyester

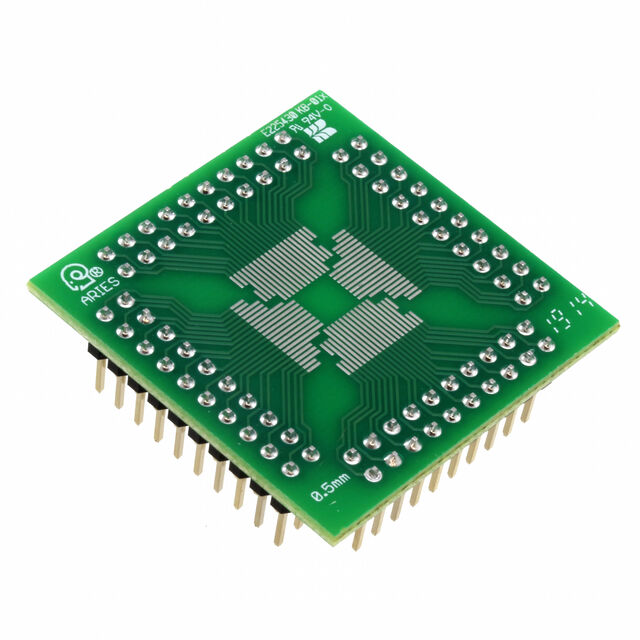

Aries Electronics LCQT-QFP0.5-60	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.5 mm	0.02 in	0.1 in	2.54 mm	Multiple Packages	60	Gold	Polyester

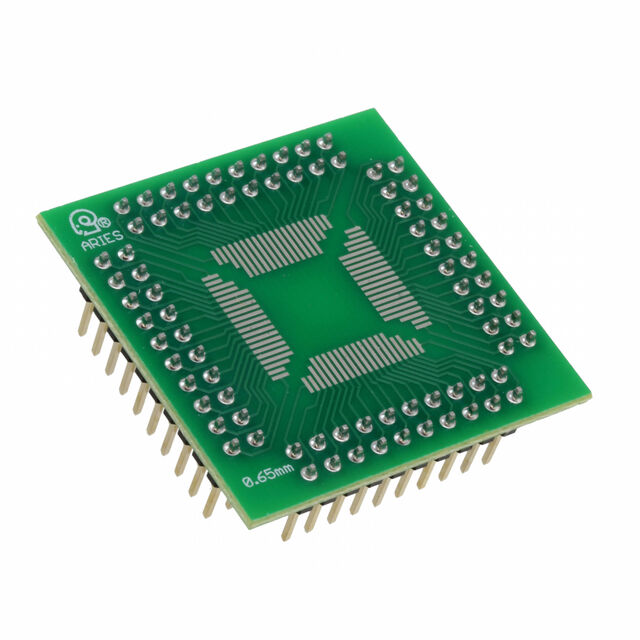

Aries Electronics LCQT-QFP0.65-64																				0.026 in 0.1 "	0.65 mm 2.54 mm	1.5 in	1.5 "	38.1 mm	38.1 mm	FR4 Epoxy Glass	1.57 mm	0.062 "	0.0625 in	QFP	64	SMD to DIP

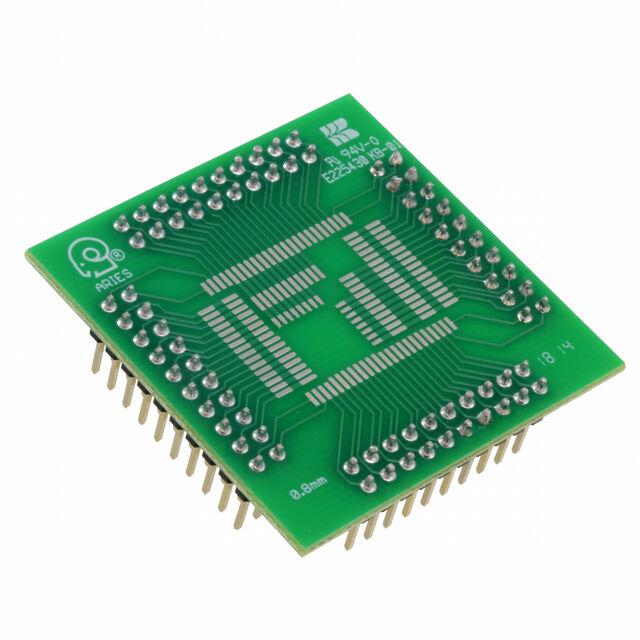

Aries Electronics LCQT-QFP0.8-32	Brass	Flash	-55 C	125 °C	UL94 V-0	6 mm	0.236 in	FR4 Epoxy Glass	QFP	Solder	Through Hole	0.8 mm	0.031 in	0.1 in	2.54 mm	Multiple Packages	32	Gold	Polyester
