TRS3232E-Q1 Series

3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Catalog

3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Part	Data Rate	Protocol	Receiver Hysteresis	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Duplex	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case	Package / Case [y]	Type	Mounting Type	Utilized IC / Part	Primary Attributes	Primary Attributes	Function	Contents	Supplied Contents	Embedded	Grade	Qualification
Texas Instruments TRS3232CPW	250 KBd	RS232	300 mV	16-TSSOP	5.5 V	3 V	Full	2	2	70 °C	0 °C	0.173 in	16-TSSOP	4.4 mm	Transceiver	Surface Mount

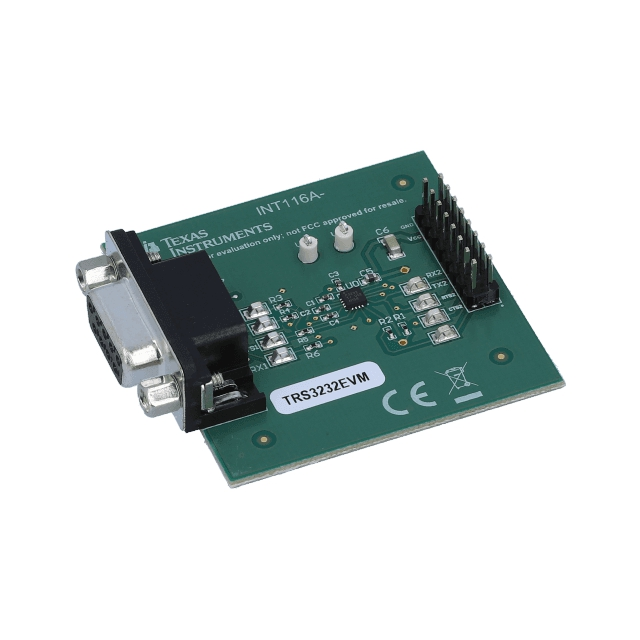

Texas Instruments TRS3232RGTEVM															Interface		TRS3232 TRSF3232	1 MBd	High Speed RS-232	RS-232 Transceiver	Board(s)	Board(s)	Yes MCU
Texas Instruments TRS3232EQPWRQ1	250 KBd	RS232	300 mV	16-TSSOP	5.5 V	3 V	Full	2	2	125 °C	-40 °C	0.173 in	16-TSSOP	4.4 mm	Transceiver	Surface Mount								Automotive	AEC-Q100
Texas Instruments TRS3232IPWR	250 KBd	RS232	300 mV	16-TSSOP	5.5 V	3 V	Full	2	2	85 °C	-40 °C	0.173 in	16-TSSOP	4.4 mm	Transceiver	Surface Mount
Texas Instruments TRS3232ECPW	250 KBd	RS232	300 mV	16-TSSOP	5.5 V	3 V	Full	2	2	70 °C	0 °C	0.173 in	16-TSSOP	4.4 mm	Transceiver	Surface Mount
Texas Instruments TRS3232EIPW	250 KBd	RS232	300 mV	16-TSSOP	5.5 V	3 V	Full	2	2	85 °C	-40 °C	0.173 in	16-TSSOP	4.4 mm	Transceiver	Surface Mount
Texas Instruments TRS3232EIPWG4	250 KBd	RS232	300 mV	16-TSSOP	5.5 V	3 V	Full	2	2	85 °C	-40 °C	0.173 in	16-TSSOP	4.4 mm	Transceiver	Surface Mount
Texas Instruments TRS3232EID	250 KBd	RS232	300 mV	16-SOIC	5.5 V	3 V	Full	2	2	85 °C	-40 °C	0.154 in	16-SOIC	3.9 mm	Transceiver	Surface Mount
Texas Instruments TRS3232ECDR	250 KBd	RS232	300 mV	16-SOIC	5.5 V	3 V	Full	2	2	70 °C	0 °C	0.154 in	16-SOIC	3.9 mm	Transceiver	Surface Mount
Texas Instruments TRS3232CDR	250 KBd	RS232	300 mV	16-SOIC	5.5 V	3 V	Full	2	2	70 °C	0 °C	0.154 in	16-SOIC	3.9 mm	Transceiver	Surface Mount

Catalog

3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Key Features

• ESD protection for RS-232 bus pins±15kV (HBM)±8kV (IEC61000-4-2, Contact discharge)±15kV (IEC61000-4-2, Air-gap discharge)Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standardsOperates with 3V to 5.5V VCC supplyInteroperable with RS-232 down to 2.7V VCCOperates up to 250kbpsTwo drivers and two receiversLow supply current: 300µA (typical)External capacitors: 4 × 0.1µFAccepts 5V logic input with 3.3V supplyAvailable in near chip-scale package (QFN-16, 3mm x 3mm), 85% smaller than SOIC-16Pin compatible to alternative high-speed devices (1Mbps)SN65C3232E (–40°C to +85°C)SN75C3232E (0°C to 70°C)ESD protection for RS-232 bus pins±15kV (HBM)±8kV (IEC61000-4-2, Contact discharge)±15kV (IEC61000-4-2, Air-gap discharge)Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standardsOperates with 3V to 5.5V VCC supplyInteroperable with RS-232 down to 2.7V VCCOperates up to 250kbpsTwo drivers and two receiversLow supply current: 300µA (typical)External capacitors: 4 × 0.1µFAccepts 5V logic input with 3.3V supplyAvailable in near chip-scale package (QFN-16, 3mm x 3mm), 85% smaller than SOIC-16Pin compatible to alternative high-speed devices (1Mbps)SN65C3232E (–40°C to +85°C)SN75C3232E (0°C to 70°C)

Description

The TRS3232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate. The TRS3232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.
