ATA6836C Series

Hex Half-bridge Driver with SPI Control

Catalog

Hex Half-bridge Driver with SPI Control

Part	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Load Type	Output Configuration	Applications	Interface	Current - Peak Output	Mounting Type	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Rds On (Typ)	Features	Package / Case	Supplier Device Package	Utilized IC / Part	Supplied Contents	Type	Function	Package / Case [x]	Package / Case [y]
Microchip Technology ATA6836-PXQW 19	Open Load Detect Over Temperature Short Circuit UVLO	150 °C	-40 °C	Capacitive Inductive Resistive	Half Bridge (6)	Bulbs DC Motors Resistors	SPI	650 mA	Surface Mount	Power MOSFET	4.75 V	5.25 V	5.5 V	40 V	1 Ohm 1 Ohm	Status Flag	24-VQFN Exposed Pad	24-VQFN (5x5)
Microchip Technology ATA6836C-PXQW 19	Open Load Detect Over Temperature Short Circuit UVLO	150 °C	-40 °C	Capacitive Inductive Resistive	Half Bridge (6)	Bulbs DC Motors Resistors	SPI	650 mA	Surface Mount	Power MOSFET	4.75 V	5.25 V	5.5 V	40 V	1 Ohm 1 Ohm	Status Flag	24-VQFN Exposed Pad	24-VQFN (5x5)
Microchip Technology ATA6836C-PXQW	Open Load Detect Over Temperature Short Circuit UVLO	150 °C	-40 °C	Capacitive Inductive Resistive	Half Bridge (6)	Bulbs DC Motors Resistors	SPI	650 mA	Surface Mount	Power MOSFET	4.75 V	5.25 V	5.5 V	40 V	1 Ohm 1 Ohm	Status Flag	24-VQFN Exposed Pad	24-VQFN (5x5)
Microchip Technology ATA6836C-PXQW-1	Open Load Detect Over Temperature Short Circuit UVLO	150 °C	-40 °C	Capacitive Inductive Resistive	Half Bridge (6)	Bulbs DC Motors Resistors	SPI		Surface Mount	Power MOSFET	4.75 V	5.25 V	5.5 V	40 V	1 Ohm 1 Ohm	Status Flag	24-VQFN Exposed Pad	24-VQFN (5x5)
Microchip Technology ATA6836-DK																			ATA6836	Board(s)	Power Management	Half H-Bridge Driver (Internal FET)

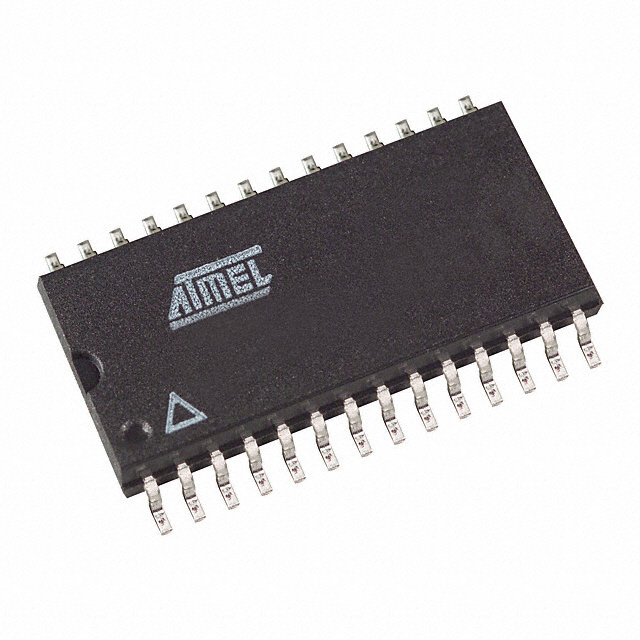

Microchip Technology ATA6836C-TIQW	Open Load Detect Over Temperature Short Circuit UVLO	150 °C	-40 °C	Capacitive Inductive Resistive	Half Bridge (6)	Bulbs DC Motors Resistors	SPI		Surface Mount	Power MOSFET	4.75 V	5.25 V	5.5 V	40 V	1 Ohm 1 Ohm	Status Flag	28-SOIC	28-SO					0.295 in	7.5 mm

Catalog

Hex Half-bridge Driver with SPI Control

Key Features

• * Six half-bridge outputs formed by six high-side and six low-side drivers

• * Capable of switching all kinds of loads (such as DC motors, bulbs, resistors,capacitors and inductors)

• * RDSon typically 1.0Ω at 25°C, maximum 1.8Ω at 150°C

• * Up to 650-mA output current

• * Very low quiescent current IVS < 2μA in standby mode

• * Outputs short-circuit protected

• * Overtemperature prewarning and protection

• * Undervoltage protection

• * Various diagnosis functions such as shorted output, open load, overtemperature and power supply fail

• * Serial data interface

• * Operation voltage up to 40V

• * Daisy chaining possible

• * Serial interface 5V compatible, up to 2MHz clock frequency

• * SO28 or QFN24 power package

Description

A fully protected hex half-bridge driver controlling up to six different loads by microcontroller in automotive and industrial applications. It is designed in smart power SOI technology. Each of the six high-side and six low-side drivers is capable of driving currents up to 650mA. The drivers are internally connected to form six half-bridges and can be controlled separately from a standard serial data interface to combine loads from bulbs, resistors, capacitors, and inductors.The IC supports the application of H-bridges to drive DC motors.
