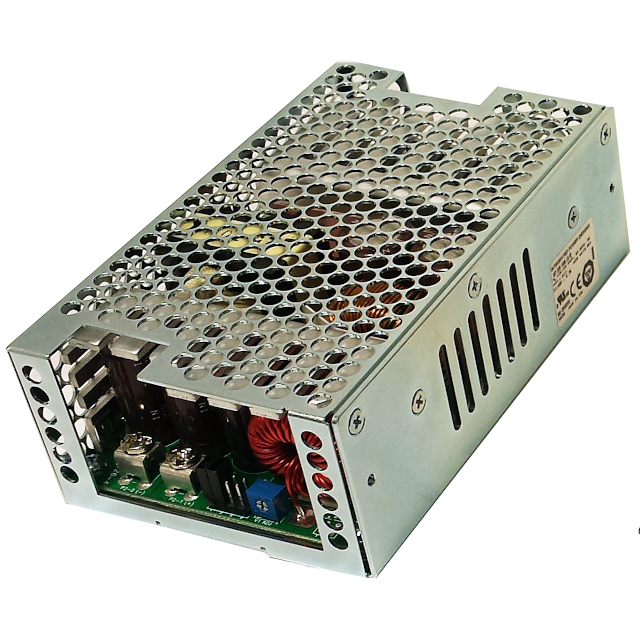

AC/DC CONVERTER 12V 225W
| Part | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Efficiency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Type | Current - Output 1 | Voltage - Output 1 | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 225 W | 100 VAC | 240 VAC | Chassis Mount | 133.1 mm | 44.5 mm | 1.75 in | 5.24 " | 79.2 mm | 3.12 in | ITE (Commercial) Medical | 85 % | 1 | 70 °C | 0 °C | 60601-1; 62368-1 | Enclosed | 18.8 A | 12 V | Adjustable Output Remote Sense Universal Input | CE cURus TUV UKCA |
