AM6TW Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 9V 6W

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1	Approval Agency	Applications	Efficiency	Package / Case	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max)	Voltage - Output 2
aimtec AM6TW-2409SH30-NZ	Through Hole	10.2 mm	1.24 in	0.4 "	0.8 "	20.3 mm	31.6 mm	Isolated Module	3000 V	667 mA	9 V	36 V	1	9 V	cURus UL	ITE (Commercial)	85 %	24-DIP Module	6 W	85 °C	-40 C

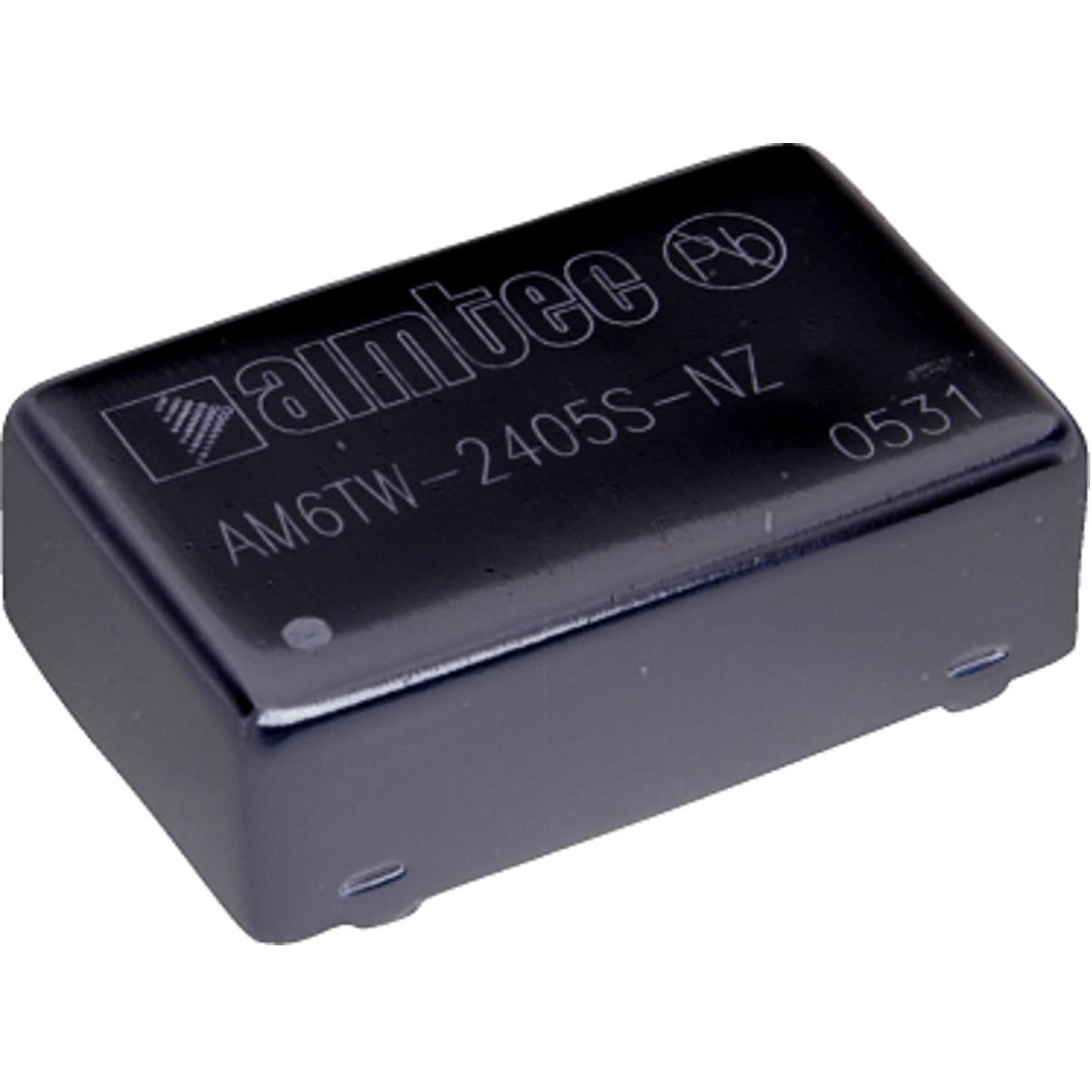

aimtec AM6TW-2405SH30-NZ	Through Hole	10.2 mm	1.24 in	0.4 "	0.8 "	20.3 mm	31.6 mm	Isolated Module	3000 V	1.2 A	9 V	36 V	1	5 V		ITE (Commercial)	83 %	24-DIP Module 7 Leads	6 W	85 °C	-40 °C
aimtec AM6TW-2407SH35Z	Through Hole	10.5 mm	1.27 in	0.41 in	0.84 "	21.4 mm	32.3 mm	Isolated Module	3.5 kV	830 mA	9 V	36 V	1	7.2 V	CE	ITE (Commercial)	78 %	24-DIP Module	6 W	85 °C	-40 C
aimtec AM6TW-2405SH35Z	Through Hole	10.2 mm	1.25 in	0.4 "	0.8 "	20.3 mm	31.8 mm	Isolated Module	3.5 kV	1.2 A	9 V	36 V	1	5 V	CE	ITE (Commercial)	81 %	24-DIP Module	6 W	85 °C	-40 C
aimtec AM6TW-4824SZ	Through Hole	10.5 mm	1.27 in	0.41 in	0.84 "	21.4 mm	32.3 mm	Isolated Module	1.5 kV	250 mA	18 V	72 V	1	24 V	CE	ITE (Commercial)	83 %	24-DIP Module	6 W	85 °C	-40 C
aimtec AM6TW-4812SZ	Through Hole	10.2 mm	1.25 in	0.4 "	0.8 "	20.3 mm	31.8 mm	Isolated Module	1.5 kV	500 mA	18 V	72 V	1	12 V	CE	ITE (Commercial)		24-DIP Module	6 W	85 °C	-40 C
aimtec AM6TW-4824SH35Z	Through Hole	10.5 mm	1.27 in	0.41 in	0.84 "	21.4 mm	32.3 mm	Isolated Module	3.5 kV	250 mA	18 V	72 V	1	24 V	CE	ITE (Commercial)	83 %	24-DIP Module	6 W	85 °C	-40 C
aimtec AM6TW-2424SZ	Through Hole	10.5 mm	1.27 in	0.41 in	0.84 "	21.4 mm	32.3 mm	Isolated Module	1.5 kV	250 mA	9 V	36 V	1	24 V	CE	ITE (Commercial)		24-DIP Module	6 W	85 °C	-40 C	12 Leads

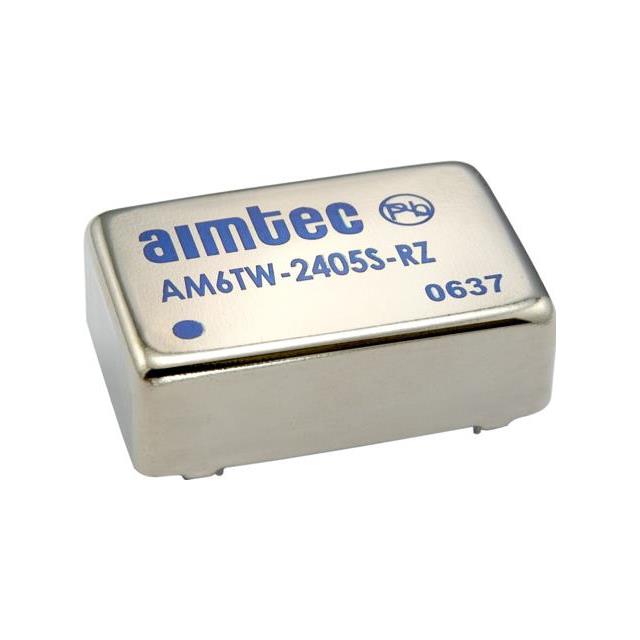

aimtec AM6TW-4812D-RZ	Through Hole	10.2 mm	1.25 in	0.4 "	0.8 "	20.3 mm	31.8 mm	Isolated Module	1.5 kV		18 V	72 V	2	12 V	CE	ITE (Commercial)	83 %	24-DIP Module 8 Leads	6 W	85 °C	-40 C		250 mA	-12 V
aimtec AM6TW-4812SH35-VZ	Through Hole	10.2 mm	1.25 in	0.4 "	0.8 "	20.3 mm	31.8 mm	Isolated Module	3.5 kV	500 mA	18 V	72 V	1	12 V		ITE (Commercial)	77 %	24-DIP Module 7 Leads	6 W	71 °C	-40 °C
