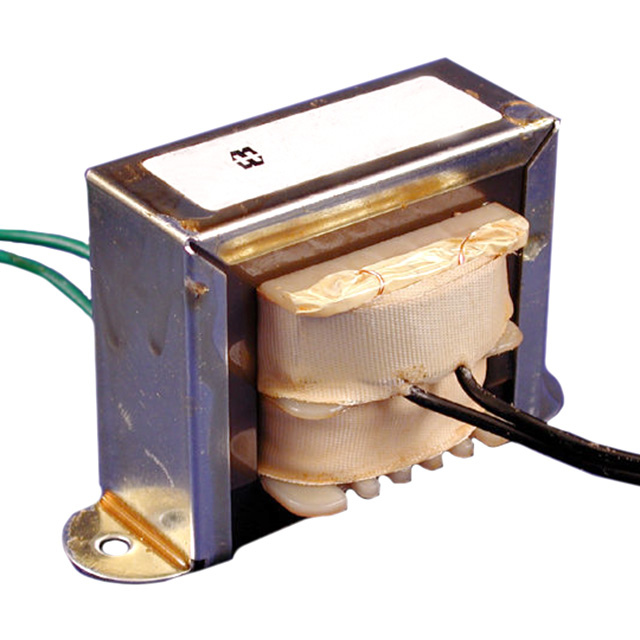

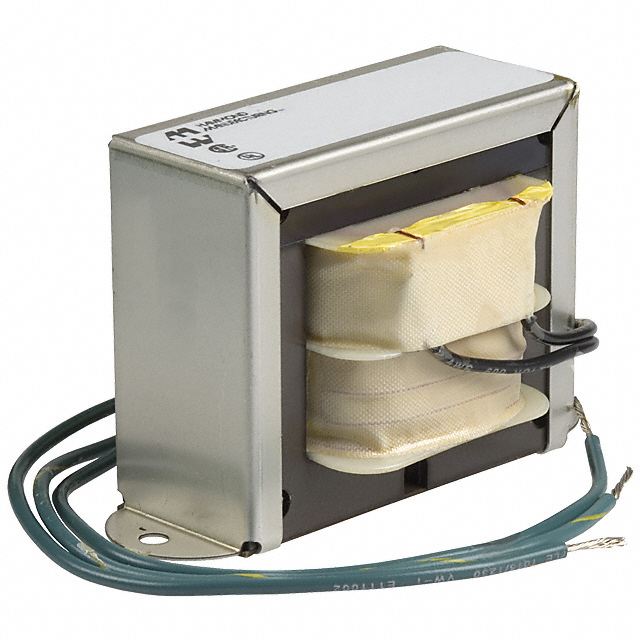

166F12 Series

Catalog

PWR XFMR LAMINATED 4.2VA CHAS MT

Part	Weight	Weight	Mounting Type	Power - Max [Max]	Voltage - Primary	Type	Current - Output (Max) [Max]	Secondary Winding(s)	Voltage - Secondary (Full Load)	Termination Style	Height - Seated (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Primary Winding(s)
Hammond Manufacturing 166F12C	181.44 g	0.4 lb	Chassis Mount	4.2 VA	115 V	Laminated Core	350 mA	Single	12 V	Wire Leads	35.05 mm	2000 Vrms	60.45 mm	35.05 mm	Single
Hammond Manufacturing 166F12B	181.44 g	0.4 lb	Chassis Mount	3.6 VA	115 V	Laminated Core	0.3 A	Single	12 V	Wire Leads	35.05 mm	2000 Vrms	60.45 mm	35.05 mm	Single
Hammond Manufacturing 166F12D	181.44 g	0.4 lb	Chassis Mount	4.2 VA		Laminated Core	350 mA	Single	12 V	Wire Leads	35.05 mm	2000 Vrms	60.45 mm	35.05 mm	Single
