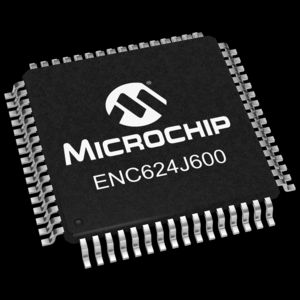

ENC624J600 Series
10/100 Base-T/TX Ethernet Controller with SPI Interface
Manufacturer: Microchip Technology
Catalog
10/100 Base-T/TX Ethernet Controller with SPI Interface
Key Features
• **•**IEEE 802.3™ Compliant Fast Ethernet Controller
•
• **•**Integrated MAC and 10/100Base-T
•
• **•**Hardware Security Acceleration Engines
•
• **•**Factory Preprogrammed Unique MAC Address
•
• **•**Supports one 10/100Base-T Port with Automatic Polarity Detection and Correction
•
• **•**Support for Pause Control Frames, including Automatic Transmit and Receive Flow Control
•
• **•**Programmable Automatic Retransmit on Collision
•
• **•**14 Mbit/s SPI interface with enhanced set of opcodes- 8-bit multiplexed parallel interface- 8-bit or 16-bit multiplexed or demultiplexed parallel interface
•
• **•**High-performance, modular exponentiation engine with up to 1024-bit operands- Supports RSA® and Diffie-Hellman key exchange algorithms
•
• **•**Fast MD5 hash computations
•
• **•**Fast SHA-1 hash computations
•
• **•**Package: 64-Pin (TQFP)
Description
AI
Microchip's ENC624J600 offers low-cost stand-alone 10/100 Base-T Ethernet interface controller with integrated MAC & PHY, hardware cryptographic security engines and factory preprogrammed unique MAC address. A 24-Kbyte on-chip RAM buffer is available for TX and RX operations. The ENC624J600 have an industry standard Serial Peripheral Interface (SPI) or a flexible parallel interface. They are designed to serve as an Ethernet network interface for any microcontroller equipped with SPI or a standard parallel port. Microchip’s ENC624J600 enables designers to create secured network- and Internet-connected embedded applications with minimized board space, cost and complexity.
