MCP6001 Series

1 MHz, Low-Power Op Amp

Catalog

1 MHz, Low-Power Op Amp

Part	Mounting Type	Package / Case	Current - Output / Channel	Output Type	Supplier Device Package	Voltage - Input Offset	Current - Supply	Amplifier Type	Gain Bandwidth Product	Slew Rate	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Voltage - Supply Span (Min) [Min]	Grade	Qualification
Microchip Technology MCP6001T-I/LT	Surface Mount	5-TSSOP SC-70-5 SOT-353	23 mA	Rail-to-Rail	SC-70-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	85 °C	-40 °C	1	1.8 V
Microchip Technology MCP6001RT-E/OTVAO	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	125 °C	-40 °C	1	1.8 V	Automotive	AEC-Q100
Microchip Technology MCP6001RT-E/OT	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	125 °C	-40 °C	1	1.8 V
Microchip Technology MCP6001UT-E/OT	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	125 °C	-40 °C	1	1.8 V
Microchip Technology MCP6001T-I/LTVAO	Surface Mount	5-TSSOP SC-70-5 SOT-353	23 mA	Rail-to-Rail	SC-70-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	85 °C	-40 °C	1	1.8 V	Automotive	AEC-Q100
Microchip Technology MCP6001T-I/OTVAO	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	85 °C	-40 °C	1	1.8 V	Automotive	AEC-Q100
Microchip Technology MCP6001RT-I/OTVAO	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	85 °C	-40 °C	1	1.8 V	Automotive	AEC-Q100
Microchip Technology MCP6001RT-I/OT	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	85 °C	-40 °C	1	1.8 V
Microchip Technology MCP6001T-E/OT	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	125 °C	-40 °C	1	1.8 V
Microchip Technology MCP6001UT-I/OT	Surface Mount	SC-74A SOT-753	23 mA	Rail-to-Rail	SOT-23-5	4.5 mV	100 µA	General Purpose	1 MHz	0.6 V/µs	6 V	1 pA	85 °C	-40 °C	1	1.8 V

Catalog

1 MHz, Low-Power Op Amp

Key Features

• * Gain Bandwidth Product (GBWP): 1 MHz

• * Quiescent Current: 100 µA (typ.)

• * Supply voltage range: 1.8V to 6V

• * Rail to Rail Input and Output

• * Extended Temperature Range

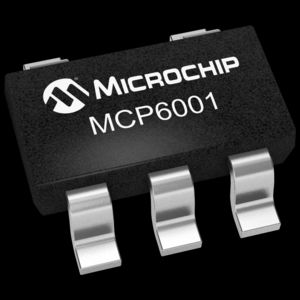

• * Space Saving Package Offering: SC70, SOT23

Description

The MCP6001 is a single general purpose op amp offering rail-to-rail input and output over the 1.8 to 6V operating range. This amplifier has a typical GBWP of 1 MHz with typical quiescent current of 100 microamperes. The MCP6001 is available in SC-70 and SOT-23 packages.
