C0890 Series

Catalog

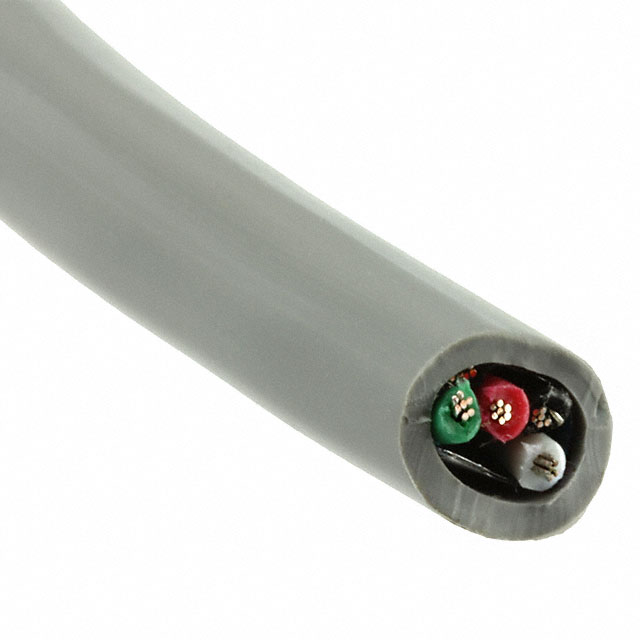

MULTI-PAIR 4COND 24AWG GRAY

Part	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Ratings	Features	Conductor Material	Usage	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Shield Material	Shield Coverage	Length [x]	Length [x]
Prysmian Group C0890A.41.10	Foil	6.27 mm	0.247 in	24 AWG	ASTM B-33	Drain Wire	Copper Annealed Tinned	Computer	Gray	80 °C	-20 ░C	30 V	4	7	32 AWG	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	Polyethylene (PE)	Multi-Pair
Prysmian Group C0890A.41.10	Foil	6.27 mm	0.247 in	24 AWG	ASTM B-33	Drain Wire	Copper Annealed Tinned	Computer	Gray	80 °C	-20 ░C	30 V	4	7	32 AWG	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	Polyethylene (PE)	Multi-Pair	Flexfoil®	100 %
Prysmian Group C0890A.18.10	Foil	6.27 mm	0.247 in	24 AWG	ASTM B-33	Drain Wire	Copper Annealed Tinned	Computer	Gray	80 °C	-20 ░C	30 V	4	7	32 AWG	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	Polyethylene (PE)	Multi-Pair			100 ft	30.5 m
Prysmian Group C0890A.18.10	Foil	6.27 mm	0.247 in	24 AWG	ASTM B-33	Drain Wire	Copper Annealed Tinned	Computer	Gray	80 °C	-20 ░C	30 V	4	7	32 AWG	15.24 m 152.4 m	50 ft 500 ft	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	Polyethylene (PE)	Multi-Pair	Flexfoil®	100 %
