STL60 Series
Manufacturer: STMicroelectronics
Beta
⌘K

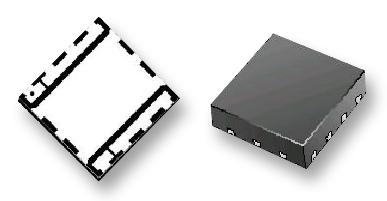

P-CHANNEL -40 V, 0.0115 OHM TYP., -60 A STRIPFET F6 POWER MOSFET IN A POWERFLAT 5X6 PACKAGE
| Part | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | FET Type | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Package / Case | Technology | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Operating Temperature | FET Feature | Gate Charge (Qg) (Max) @ Vgs [Max] | Configuration | Power - Max | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 4.5 V 10 V | Surface Mount | P-Channel | 100 W | 34 nC | 1 V | 8-PowerVDFN | MOSFET (Metal Oxide) | PowerFlat™ (5x6) | 60 A | 20 V | 3525 pF | 40 V | 14 mOhm | 175 °C | ||||||
 STMicroelectronics | Surface Mount | 1 V | 8-PowerVDFN | MOSFET (Metal Oxide) | PowerFlat™ (5x6) | 32 A 60 A | 950 pF | 30 V | 9.2 mOhm | Logic Level Gate | 6.6 nC | 2 N-Channel (Dual) Asymmetrical | 23 W 50 W | 150 °C | -55 °C |
