LET9060 Series
Manufacturer: STMicroelectronics
Beta
⌘K
RF MOSFET LDMOS 28V POWERSO-10RF
| Part | Package / Case | Supplier Device Package | Current - Test | Power - Output | Gain | Current Rating (Amps) | Frequency | Voltage - Rated | Voltage - Test |
|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | PowerSO-10RF Exposed Bottom Pad (2 Straight Leads) | PowerSO-10RF (Straight Lead) | 300 mA | 60 W | 17.2 dBi | 12 Amps | 960 MHz | 80 V | 28 V |

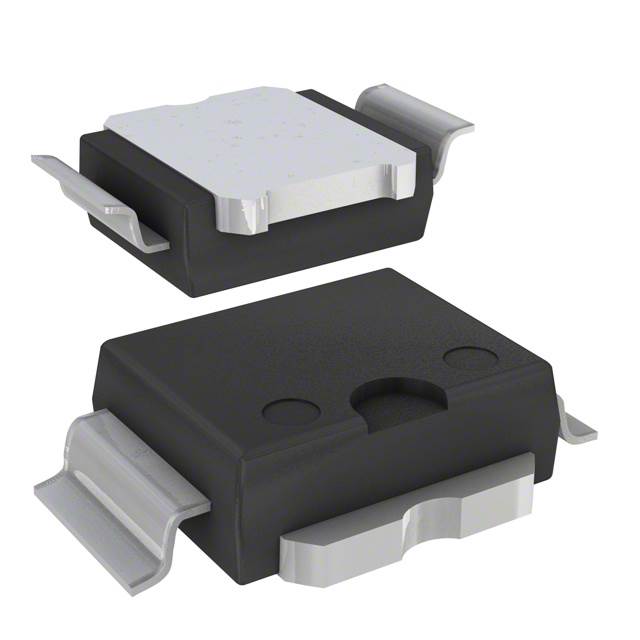

 STMicroelectronics | PowerSO-10RF Exposed Bottom Pad (2 Formed Leads) | PowerSO-10RF (Formed Lead) | 300 mA | 60 W | 17.2 dBi | 12 Amps | 960 MHz | 80 V | 28 V |
STMicroelectronics | PowerSO-10RF Exposed Bottom Pad (2 Formed Leads) | PowerSO-10RF (Formed Lead) | 300 mA | 60 W | 17.2 dBi | 12 Amps | 960 MHz | 80 V | 28 V |
