NHP620LFS Series

6 A, 200 V Planar Ultrafast Rectifier in LFPAK package

Catalog

6 A, 200 V Planar Ultrafast Rectifier in LFPAK package

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Grade	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Qualification	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Speed	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Current - Average Rectified (Io)	Supplier Device Package [x]	Supplier Device Package [y]

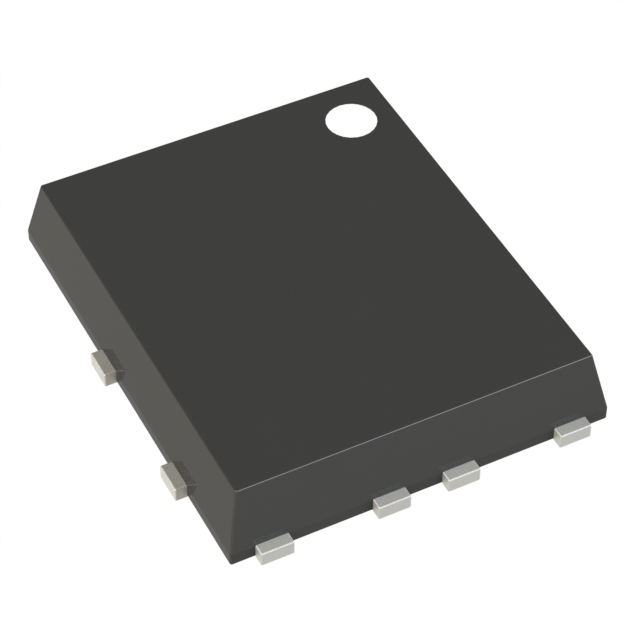

ON Semiconductor NHP620MFDT3G	175 ░C	-55 C	500 nA	Automotive	200 V	Surface Mount	8-PowerTDFN	AEC-Q101	25 ns	3 A	200 mA 500 ns	2 Independent	1 V	Standard	8-DFN (5x6) Dual Flag (SO8FL-Dual)

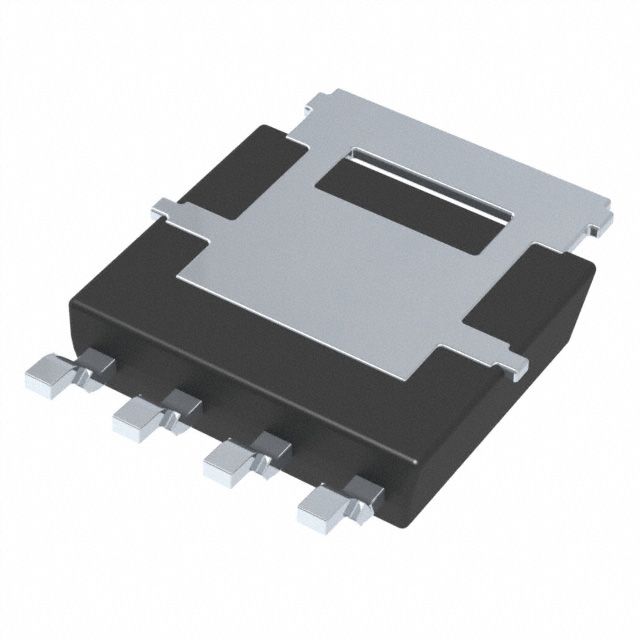

ON Semiconductor NHP620LFST1G	175 ░C	-55 C	500 nA		200 V	Surface Mount	SOT-1023 4-LFPAK		50 ns		200 mA 500 ns		950 mV	Standard	LFPAK4	6 A	5	6

Catalog

6 A, 200 V Planar Ultrafast Rectifier in LFPAK package

Key Features

• New Package Provides Capability of Inspection and Probe AfterBoard Mounting

• Low Forward Voltage Drop

• 175°C Operating Junction Temperature

• NRV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC−Q101Qualified and PPAP Capable

• These are Pb−Free and Halide−Free Devices

Description

This ultrafast rectifier in the dual flag SO−8 flat lead package offersdesigners a unique degree of versatility and design freedom. The twodevices are electrically independent and can be used separately, ascommon cathode, as common anode or in series as a function of boardlevel layout. The exposed pad design provides low thermal resistance.The clip attach design creates a package with very efficient die size toboard area ratio. While thermal performance is nearly the same as theDPAK package height and board footprint are less than half
