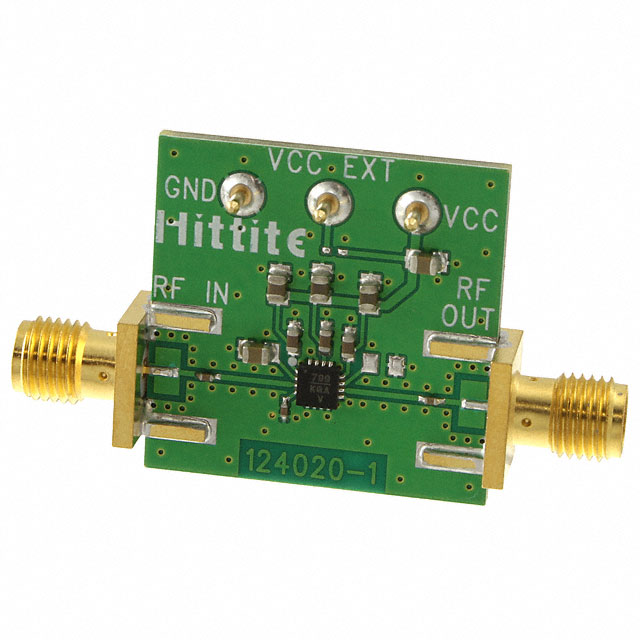

DC - 700 MHz, 10 kOhm Transimpedance Amplifier SMT
Key Features
• 10 kOhm Transimpedance
• Very Low Noise: 150nA Input RMS Noise over 700 MHz Bandwidth
• 700 MHz Analog Bandwidth
• Wide Dynamic Range: +65 dB
• Low Power: 70mA from Single +5V Supply
• 16 Lead 3x3mm SMT Package: 9mm²
Description
AI
The HMC799LP3E is DC to 700 MHz Transimpedance amplifier designed for opto-electronic laser sensor applications, FDDI receivers and receiver systems employing optical to electrical conversion. This amplifier provides a single-ended output voltage that is proportional to an applied current at its input port. This current is typically provided by a photodiode. Operating from a single +5V supply, HMC799LP3E features very low input referred noise, and very large electrical input dynamic range exceeding 65 dB. 10 kOhm or 80 dB-Ohms transimpedance gain provides very good sensitivity at higher data rates.The output of HMC799LP3E is internally matched to 50 ohms. External matching is not necessary. The HMC799LP3E exhibits excellent gain and output power stability over temperature, while requiring a minimal number of external bias components.ApplicationsLaser SensorFDDI ReceiverCATV FM Analog ReceiverWideband Gain BlockLow Noise RF Applications
