C0973 Series
Manufacturer: Prysmian Group
Beta
⌘K

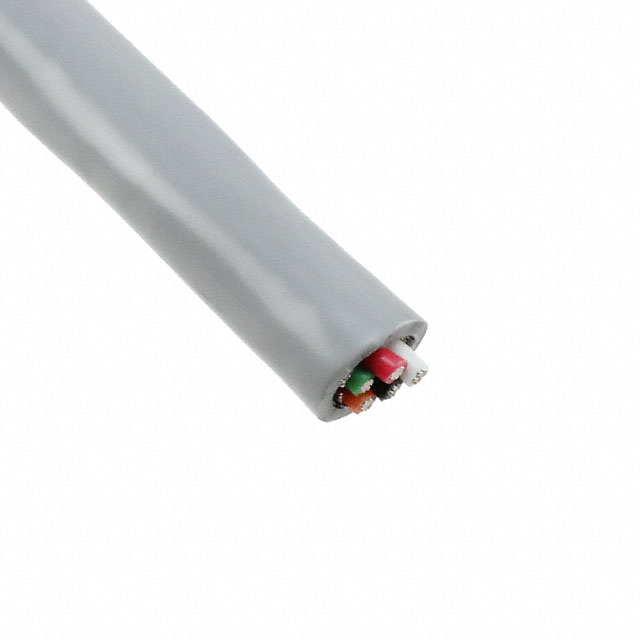

CABLE 5COND 22AWG GRAY SHLD 500'
| Part | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Length [x] | Length [x] | Cable Type | Conductor Insulation | Usage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Wire Gauge | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Computer | Braid Foil | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Tinned | 5.74 mm | 0.226 in | Gray | 5 | 22 AWG | ||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 15.24 m 304.8 m | 50 ft 1000 ft | 100 ft | 30.5 m | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Computer | Braid Foil | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Tinned | 5.74 mm | 0.226 in | Gray | 5 | 22 AWG | 65 % 100 % | Copper Flexfoil® Tinned |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Computer | Braid Foil | 0.813 mm | 0.032 in | 80 °C | -20 ░C | 300 VDC | Copper Tinned | 5.74 mm | 0.226 in | Gray | 5 | 22 AWG | 65 % 100 % | Aluminum Copper Tinned |
