MIC5366 Series

High Performance Single 150mA LDO w/ Auto Discharge

Catalog

High Performance Single 150mA LDO w/ Auto Discharge

Part	Package / Case	Number of Regulators	Output Configuration	Current - Output	Voltage Dropout (Max) [Max]	Mounting Type	Output Type	Control Features	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Protection Features	Voltage - Output (Min/Fixed) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)

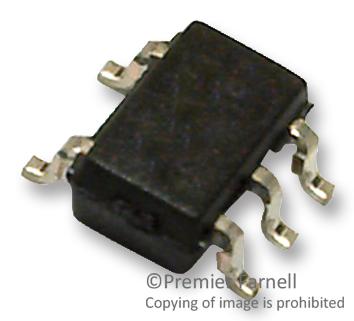

Microchip Technology MIC5366-2.0YC5-TR	5-TSSOP SC-70-5 SOT-353	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	SC-70-5	5.5 V	39 µA	Over Current Over Temperature	2 V	125 °C	-40 °C
Microchip Technology MIC5366-1.8YC5-TR	5-TSSOP SC-70-5 SOT-353	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	SC-70-5	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	1.8 V
Microchip Technology MIC5366-3.0YC5-TR	5-TSSOP SC-70-5 SOT-353	1	Positive	150 mA	0.31 V	Surface Mount	1.81 mOhm	Enable	SC-70-5	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C

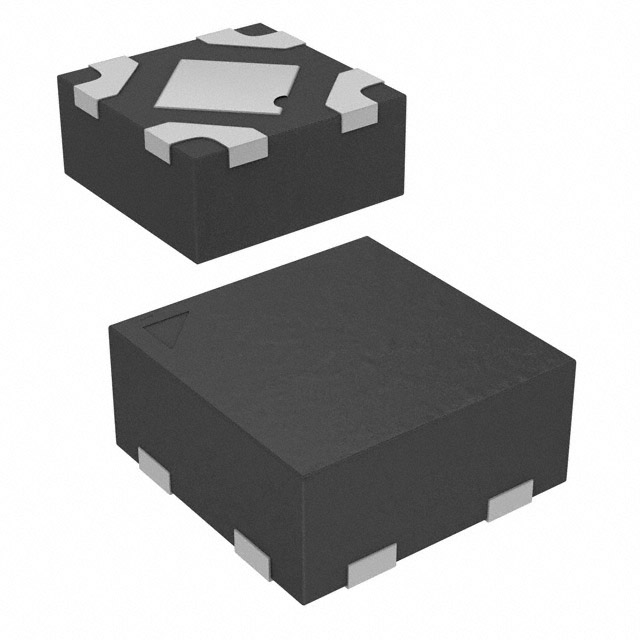

Microchip Technology MIC5366-1.8YMT-TR	4-TMLF® 4-UDFN Exposed Pad	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	4-TMLF® (1x1)	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	1.8 V
Microchip Technology MIC5366-2.85YC5-TR	5-TSSOP SC-70-5 SOT-353	1	Positive	150 mA	0.31 V	Surface Mount	1.81 mOhm	Enable	SC-70-5	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	2.85 V
Microchip Technology MIC5366-2.6YC5-TR	5-TSSOP SC-70-5 SOT-353	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	SC-70-5	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	2.6 V
Microchip Technology MIC5366-1.5YMT-TR	4-TMLF® 4-UDFN Exposed Pad	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	4-TMLF® (1x1)	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	1.5 V
Microchip Technology MIC5366-1.8YMT-TZ	4-TMLF® 4-UDFN Exposed Pad	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	4-TMLF® (1x1)	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	1.8 V
Microchip Technology MIC5366-1.0YMT TR	4-TMLF® 4-UDFN Exposed Pad	1	Positive	150 mA	0.38 V	Surface Mount	1.81 mOhm	Enable	4-TMLF® (1x1)	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	1 V
Microchip Technology MIC5366-3.3YMT-TZ	4-TMLF® 4-UDFN Exposed Pad	1	Positive	150 mA	0.31 V	Surface Mount	1.81 mOhm	Enable	4-TMLF® (1x1)	5.5 V	39 µA	Over Current Over Temperature		125 °C	-40 °C	3.3 V

Catalog

High Performance Single 150mA LDO w/ Auto Discharge

Key Features

• * Input voltage range: 2.5V to 5.5V

• * 150mA guaranteed output current

• * Stable with ceramic output capacitors

• * Low dropout voltage: 180mV at 150mA

• * Excellent Load/Line Transient Response

• * Low quiescent current: 32µA

• * High PSRR: 70dB

• * Output discharge circuit (MIC5366)

• * ±2% initial accuracy

• * Thermal shutdown and current limit protection

Description

The MIC5365/6 is an advanced general purpose linear regulator offering high power supply rejection (PSRR) in an ultra-small 1mm x 1mm package. The MIC5366 includes an auto-discharge feature that is activated when the enable pin is low. The MIC5365/6 is capable of sourcing 150mA output current and offers high PSRR, making it a great solution for any portable electronic application. Ideal for battery-powered applications, the MIC5365/6 offers 2% initial accuracy, low dropout voltage (180mV at 150mA), and low ground current (typically 32µA). The MIC5365/6 can also be put into a zero off-mode current state, drawing virtually no current when disabled. The MIC5365/6 is available in several advanced packages, occupying only 1mm2 of PCB area, a 75% reduction in board area compared to SC-70. It is also available in an SC-70-5 package. The MIC5365/6 has an operating junction temperature range of - 40°C to 125°C.
