C2466 Series

Catalog

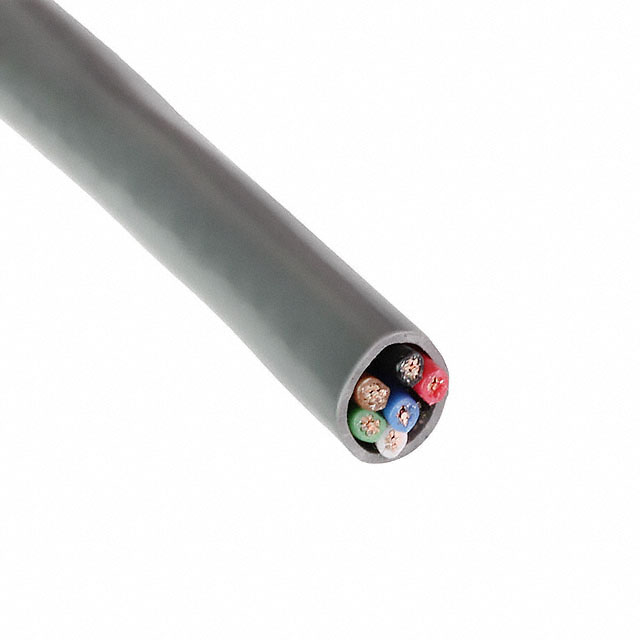

CABLE 6COND 24AWG GRAY 100'

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Length	Length	Number of Conductors	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Material	Cable Type	Jacket (Insulation) Material
Prysmian Group C2466A.41.10	80 °C	-20 ░C	300 VDC	15.24 m 304.8 m	50 ft 1000 ft	6	Communication Control	0.2 in	5.08 mm	24 AWG	Poly-Vinyl Chloride (PVC)	Gray	7	32 AWG	0.813 mm	0.032 in	100 ft	30.5 m	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)
Prysmian Group C2466A.18.10	80 °C	-20 ░C	300 VDC	152.4 m	500 ft	6	Communication Control	0.2 in	5.08 mm	24 AWG	Poly-Vinyl Chloride (PVC)	Gray	7	32 AWG	0.813 mm	0.032 in			Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)
Prysmian Group C2466A.41.10	80 °C	-20 ░C	300 VDC	15.24 m 304.8 m	50 ft 1000 ft	6	Communication Control	0.2 in	5.08 mm	24 AWG	Poly-Vinyl Chloride (PVC)	Gray	7	32 AWG	0.813 mm	0.032 in	100 ft	30.5 m	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)
