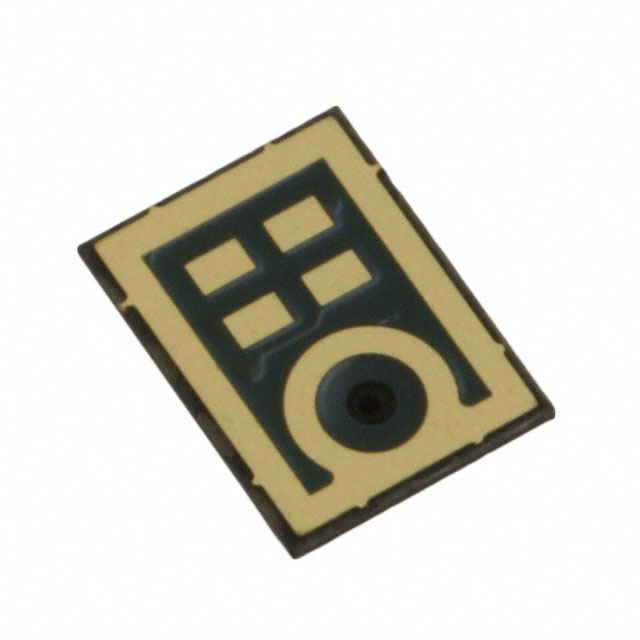

ADMP621 Series
Manufacturer: Analog Devices
Beta
⌘K
MIC MEMS DIGITAL PDM OMNI -46DB
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height (Max) [Max] | Height (Max) [Max] | Type | Port Location | Current - Supply | Termination | Voltage Range [Min] | Voltage Range [Max] | Shape | Frequency Range [Min] | Frequency Range [Max] | S/N Ratio | Direction | Output Type | Sensitivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 4 mm | 3 mm | 0.118 in | 0.157 " | 0.043 in | 1.1 mm | MEMS (Silicon) | Bottom | 1.6 mA | Solder Pads | 1.62 V | 3.63 V | Rectangular | 45 Hz | 20 kHz | 65 dB | Omnidirectional | Digital PDM | -46 dB |
