TEQ 40 Series

Catalog

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT 40W 43-160VIN +/-15V 1.33A ISO ENCAP

Part	Current - Output (Max) [Max]	Efficiency	Mounting Type	Applications	Voltage - Output 1	Voltage - Isolation	Type	Number of Outputs	Power (Watts)	Voltage - Output 2	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Min]	Current - Output (Max)	Current - Output (Max)
Traco Power TEQ 40-7223WIR	1.33 A	88 %	Chassis Mount	ITE (Commercial) Railway	15 V	3000 V	Enclosed	2	40 W	-15 V	CB CE cURus	92 °C	-40 °C	43 V	160 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
Traco Power TEQ 40-2423WIR	1.33 A	89 %	Chassis Mount	ITE (Commercial) Railway	15 V	1.6 kV	Enclosed	2	40 W	-15 V	CB CE cURus	92 °C	-40 °C	9.5 V	36 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
Traco Power TEQ 40-4815WIR	1.67 A	90 %	Chassis Mount	ITE (Commercial) Railway	24 V	1.6 kV	Enclosed	1	40 W			92 °C	-40 °C	18 V	75 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
Traco Power TEQ 40-2413WIR	2.67 A	91 %	Chassis Mount	ITE (Commercial) Railway	15 V	1.6 kV	Enclosed	1	40 W			92 °C	-40 °C	9.5 V	36 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
Traco Power TEQ 40-4812WIR	3.33 A	91 %	Chassis Mount	ITE (Commercial) Railway	12 V	1.6 kV	Enclosed	1	40 W			92 °C	-40 °C	18 V	75 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in

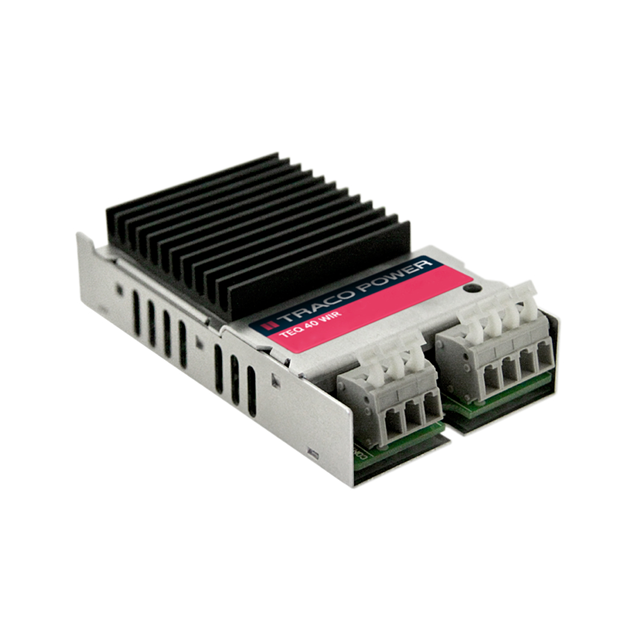

Traco Power TEQ 40-2415WIR	1.67 A	90 %	Chassis Mount	ITE (Commercial) Railway	24 V	1.6 kV	Enclosed	1	40 W			92 °C	-40 °C	9.5 V	36 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
Traco Power TEQ 40-4813WIR	2.67 A	91 %	Chassis Mount	ITE (Commercial) Railway	15 V	1.6 kV	Enclosed	1	40 W			92 °C	-40 °C	18 V	75 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
Traco Power TEQ 40-2422WIR	1.67 A	89 %	Chassis Mount	ITE (Commercial) Railway	12 V	1.6 kV	Enclosed	2	40 W	-12 V	CB CE cURus	92 °C	-40 °C	9.5 V	36 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in	1.67 A
Traco Power TEQ 40-7225WIR		90 %	Chassis Mount	ITE (Commercial) Railway	24 V	3000 V	Enclosed	2	40 W	-24 V	CB CE cURus	92 °C	-40 °C	43 V	160 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in		830 mA	830 mA
Traco Power TEQ 40-2412WIR	3.33 A	91 %	Chassis Mount	ITE (Commercial) Railway	12 V	1.6 kV	Enclosed	1	40 W			92 °C	-40 °C	9.5 V	36 V	57.2 mm	2.25 in	4.06 in	103.1 mm	26.2 mm	1.03 in
