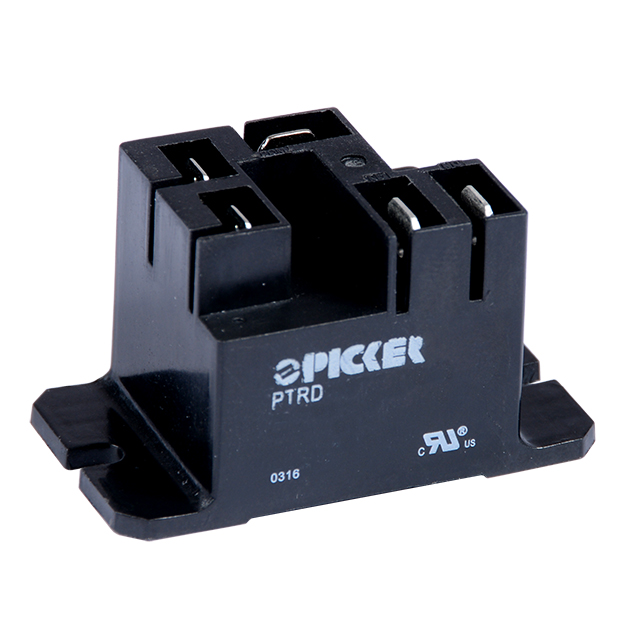

PTRD-1A Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE SPST 40A 24V
| Part | Coil Resistance | Operate Time | Approval Agency | Contact Rating (Current) | Seal Rating | Coil Insulation | Must Release Voltage | Mounting Type | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Load - Max Switching | Relay Type | Coil Type | Contact Material | Release Time | Must Operate Voltage | Contact Form | Coil Current | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 640 Ohms | 15 ms | cUL cURus UL | 40 A | Sealed - Fully | Class F | 2.4 VDC | Chassis Mount | 24 VDC | 100 °C | -55 C | 110 VDC 300 VAC | 4400 W 12000 VA | General Purpose | Non Latching | Silver Cadmium Oxide (AgCdO) | 10 ms | 18 VDC | SPST-NO (1 Form A) | 0.0375 A | 0.187 in 0.25 in | Quick Connect |
