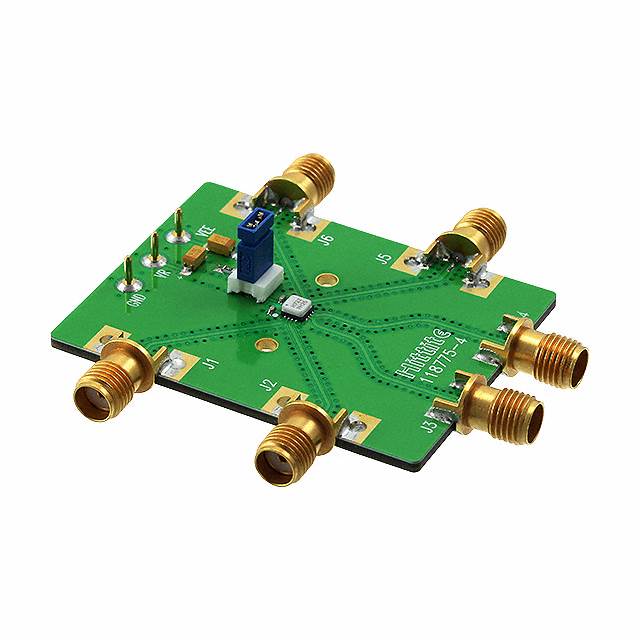

HMC722LC3C Series

The HMC722LC3C is an AND/NAND/OR/NOR function designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. The HMC772LC3C may be easily configured to provide any of the following logic functions: AND, NAND, OR and NOR. The HMC722LC3C also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.All input signals to the HMC722LC3C are terminated with 50Ω to ground on-chip, and may be either AC or DC coupled. The differential outputs of the HMC722LC3C may be either AC or DC coupled. Outputs can be connected directly to a 50Ω to ground terminated system, while DC blocking capacitors may be used if the terminating system is 50Ω to a non-ground DC voltage. The HMC722LC3C operates from a single -3.3V DC supply, and is available in a ceramic RoHS compliant 3 × 3 mm SMT package.APPLICATIONSRF ATE ApplicationsBroadband Test & MeasurementSerial Data Transmission up to 13 GbpsDigital Logic Systems up to 13 GHzNRZ-to-RZ Conversion
