C0472 Series
Manufacturer: Prysmian Group
Beta
⌘K

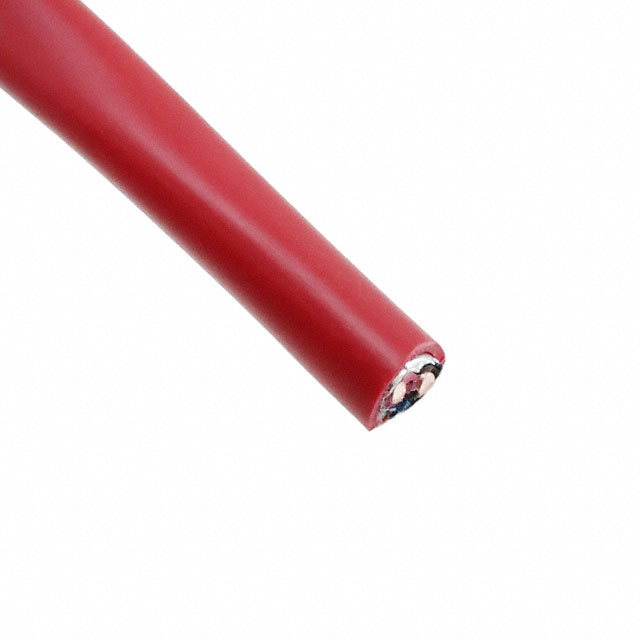

CABLE 2COND 18AWG RED SHLD 100'
| Part | Length [x] | Length [x] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Shield Type | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Ratings | Conductor Insulation | Shield Material | Voltage | Jacket Color | Features | Usage | Shield Coverage | Number of Conductors | Jacket (Insulation) Material | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 ft | 30.5 m | Copper Annealed Bare | 0.02 " | 0.508 mm | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Foil | Multi-Conductor | 0 °C | 60 °C | 0.182 in | 4.62 mm | 18 AWG | ASTM B-3 | Polypropylene (PP) | Flexfoil® | 300 VDC | Red | Drain Wire | Alarm Safety | 100 % | 2 | Poly-Vinyl Chloride (PVC) | Solid |
 Prysmian Group | Copper Annealed Bare | 0.02 " | 0.508 mm | 152.4 m | 500 ft | Foil | Multi-Conductor | 0 °C | 60 °C | 0.182 in | 4.62 mm | 18 AWG | ASTM B-3 | Polypropylene (PP) | Flexfoil® | 300 VDC | Red | Drain Wire | Alarm Safety | 100 % | 2 | Poly-Vinyl Chloride (PVC) | Solid | ||
Prysmian Group | 100 ft | 30.5 m | Copper Annealed Bare | 0.02 " | 0.508 mm | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Foil | Multi-Conductor | 0 °C | 60 °C | 0.182 in | 4.62 mm | 18 AWG | ASTM B-3 | Polypropylene (PP) | 300 VDC | Red | Drain Wire | Alarm Safety | 2 | Poly-Vinyl Chloride (PVC) | Solid |
