LCQT-SO Series

Catalog

SOCKET ADAPTER SOIC TO 14DIP

Part	Pitch	Pitch	Material	Proto Board Type	Number of Positions	Package Accepted	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Board Thickness	Board Thickness	Board Thickness	Size / Dimension
Aries Electronics LCQT-SOIC14	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP	14	SOIC	17.78 mm	17.78 mm	0.7 "	0.7 in	1.57 mm	0.062 "	0.0625 in

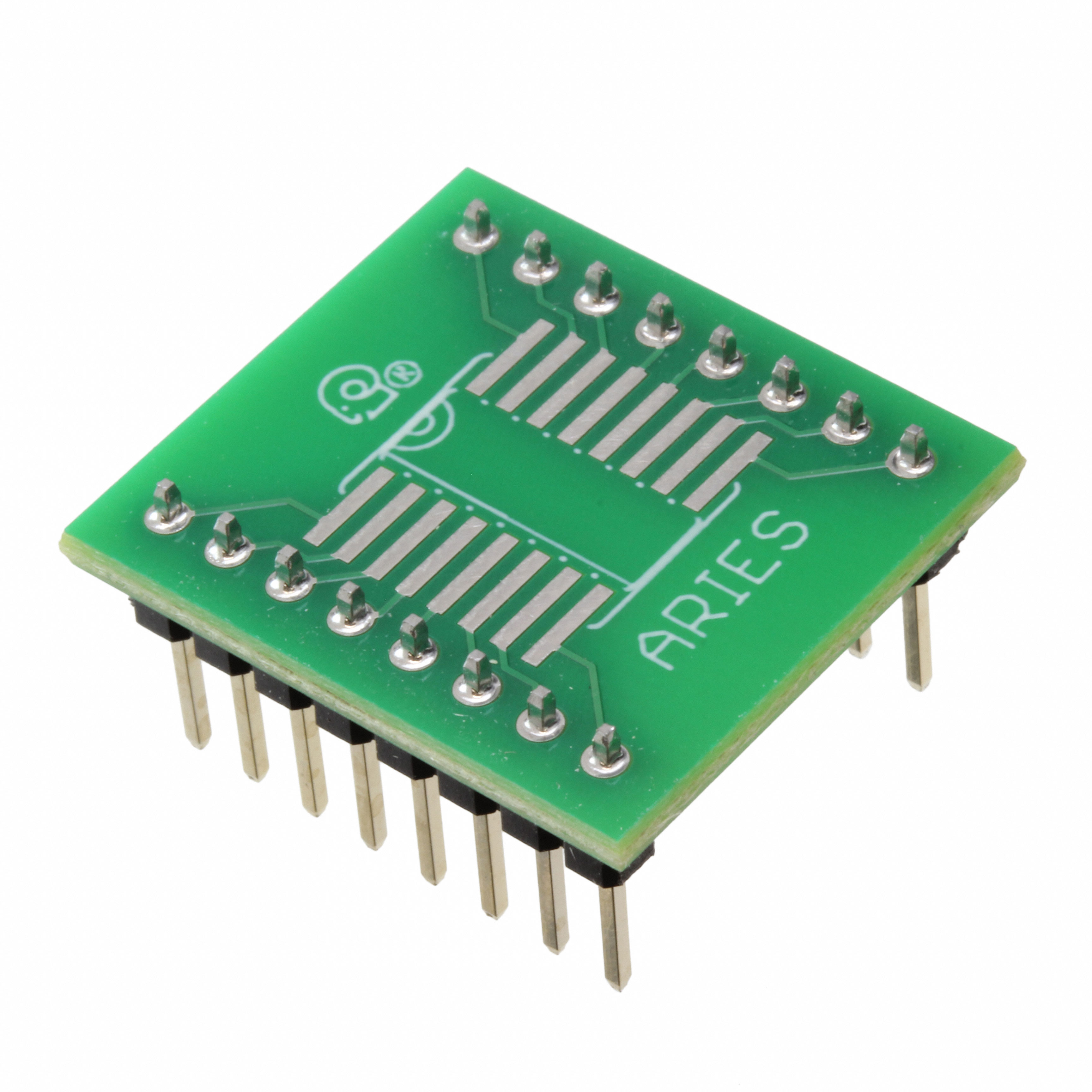

Aries Electronics LCQT-SOIC16W	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP	16	SOIC	17.78 mm	20.32 mm	0.8 "	0.7 in	1.57 mm	0.062 "	0.0625 in

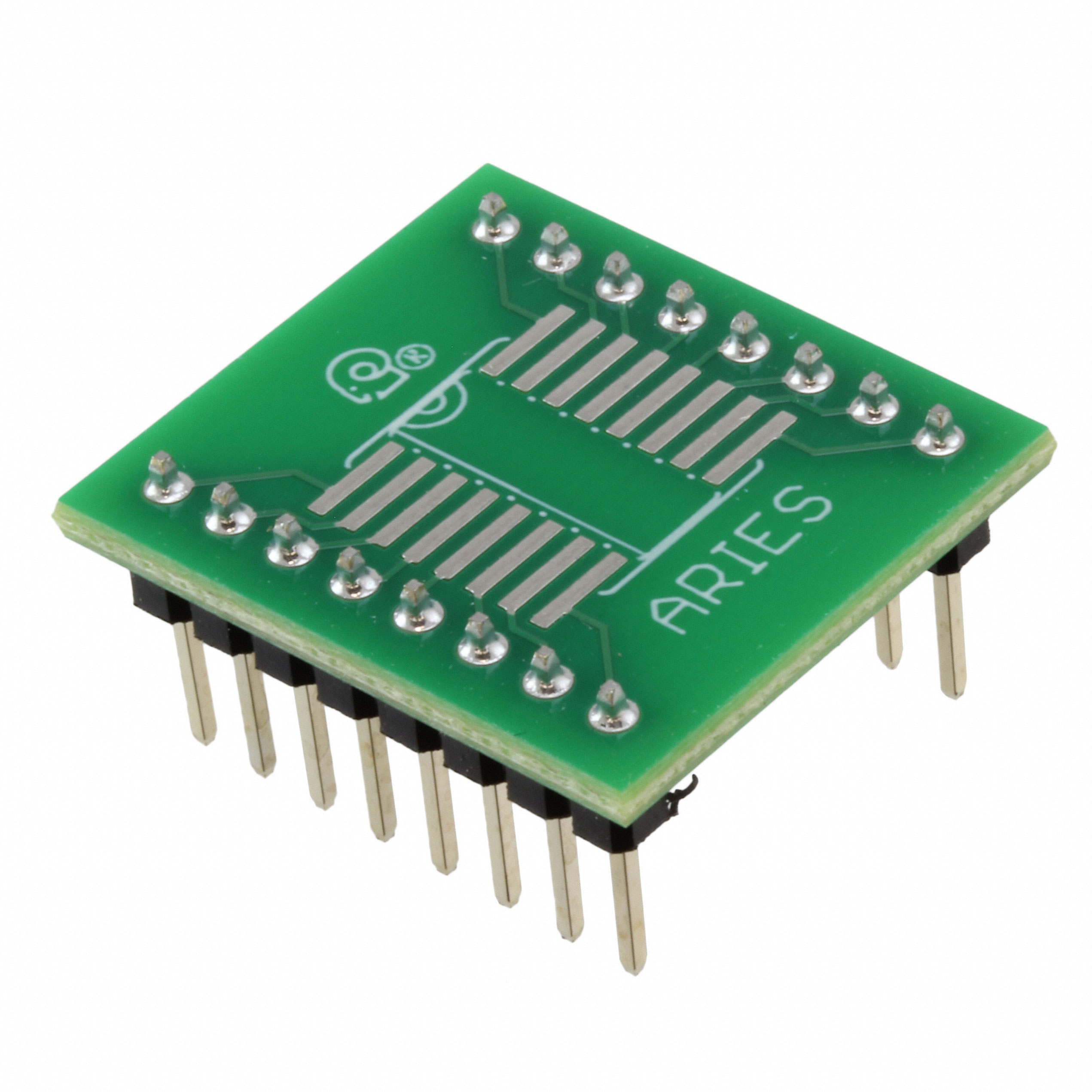

Aries Electronics LCQT-SOIC16	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP	16	SOIC	17.78 mm	20.32 mm	0.8 "	0.7 in	1.57 mm	0.062 "	0.0625 in

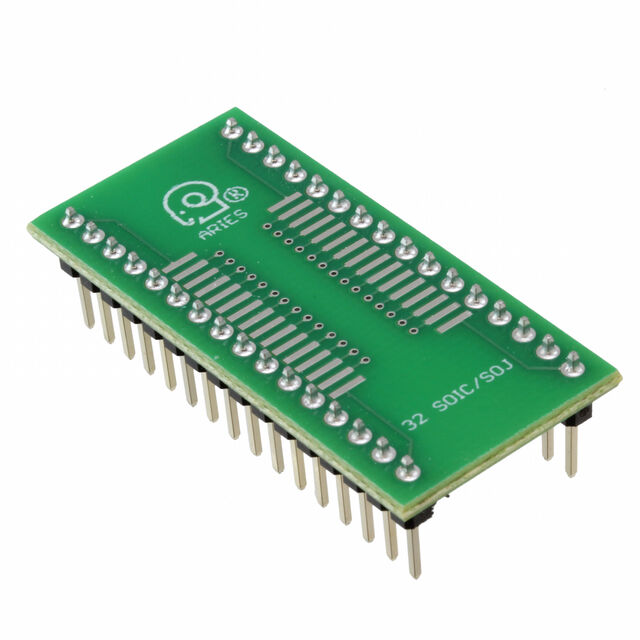

Aries Electronics LCQT-SOIC32W	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP		SOIC					1.57 mm	0.062 "	0.0625 in	0.7 " 17.78 mm 40.64 mm

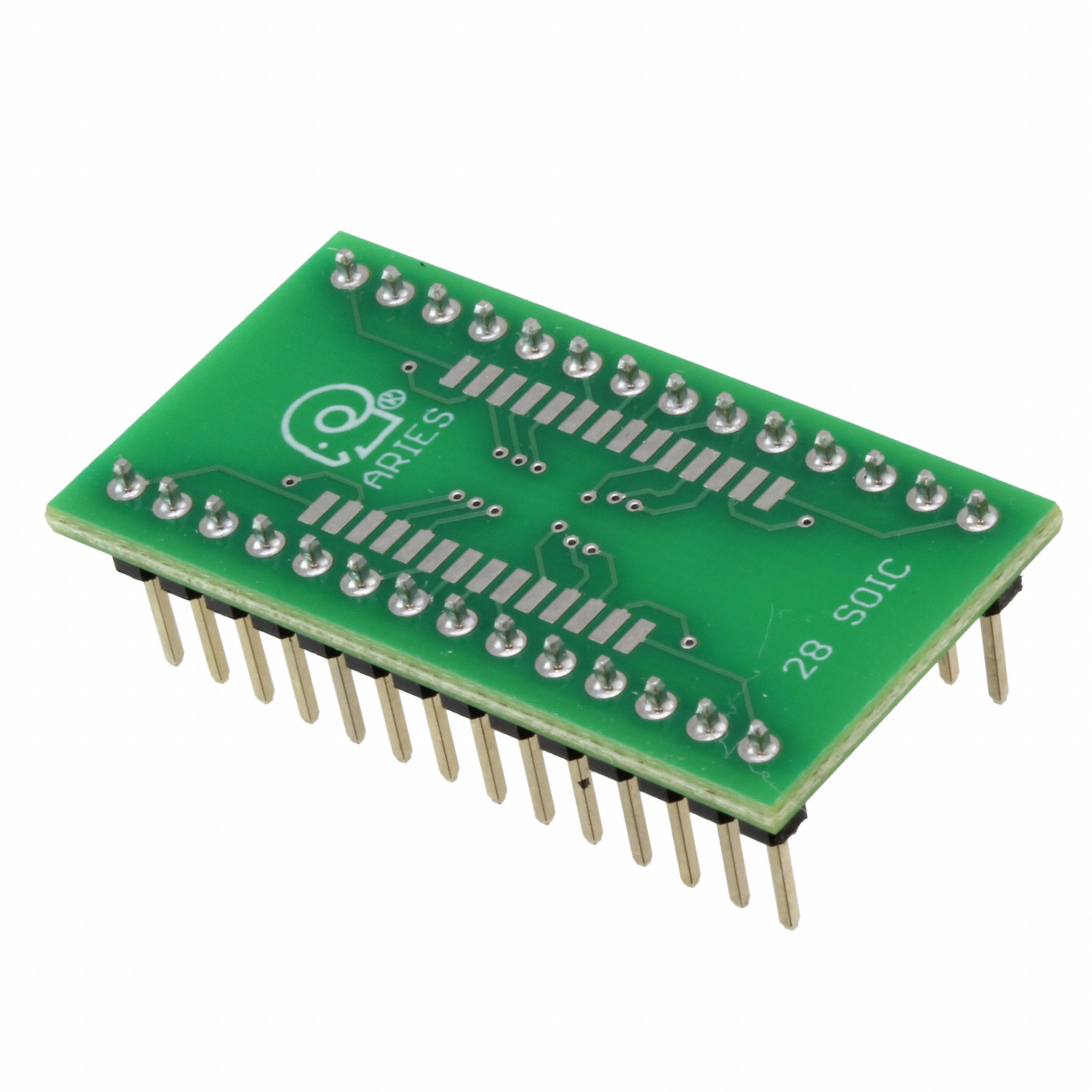

Aries Electronics LCQT-SOIC28	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP	28	SOIC	17.78 mm	35.56 mm	1.4 in	0.7 in	1.57 mm	0.062 "	0.0625 in

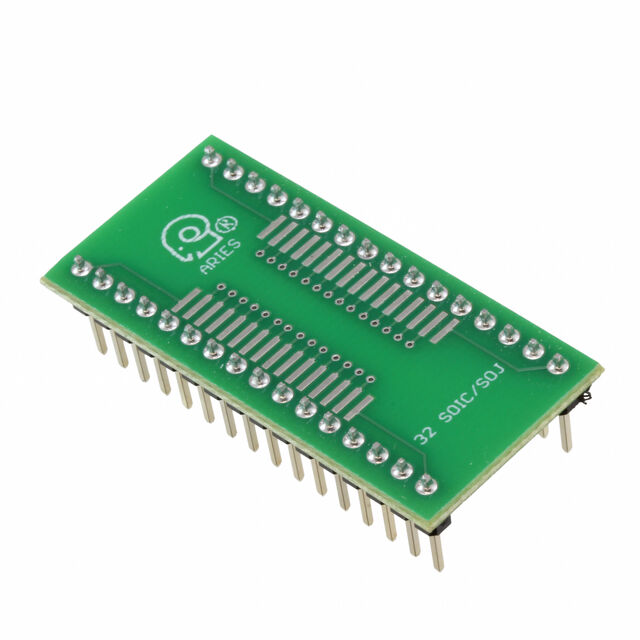

Aries Electronics LCQT-SOIC32	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP		SOIC					1.57 mm	0.062 "	0.0625 in	0.7 " 17.78 mm 40.64 mm

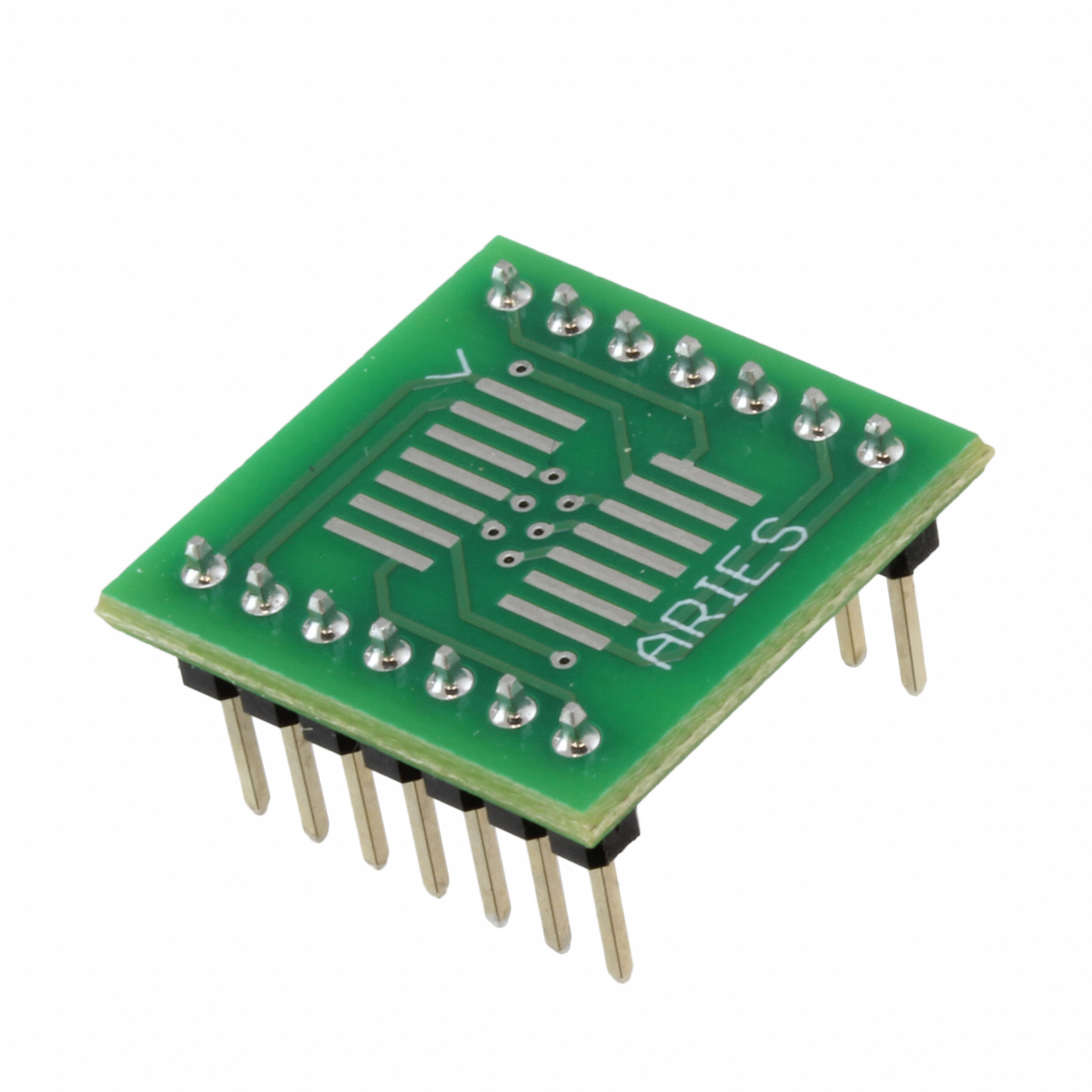

Aries Electronics LCQT-SOIC14W	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP	14	SOIC	17.78 mm	17.78 mm	0.7 "	0.7 in	1.57 mm	0.062 "	0.0625 in

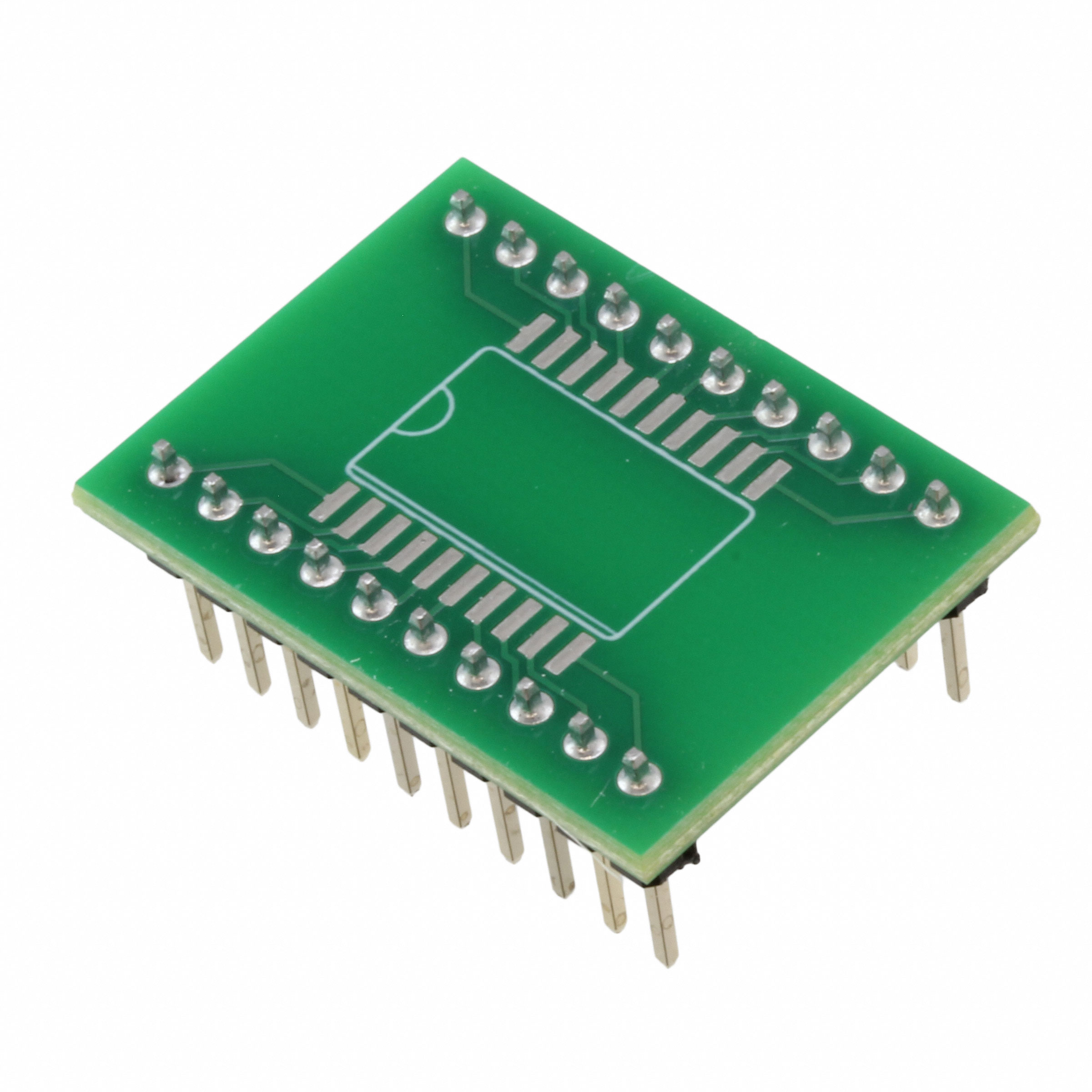

Aries Electronics LCQT-SOIC20W	0.05 in 0.1 "	1.27 mm 2.54 mm	FR4 Epoxy Glass	SMD to DIP	20	SOIC	17.78 mm	25.4 mm	1 in	0.7 in	1.57 mm	0.062 "	0.0625 in
