C1642 Series
Manufacturer: Prysmian Group
Beta
⌘K

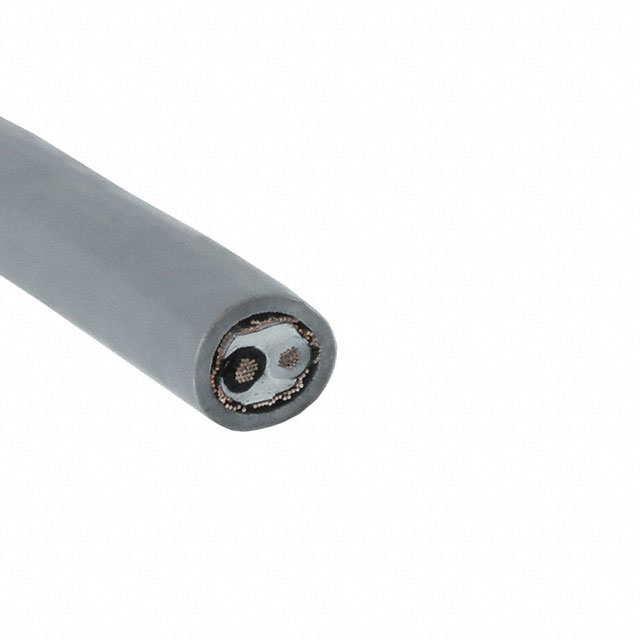

CABLE 2COND 20AWG GRAY SHLD 500'
| Part | Usage | Length | Length | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Cable Type | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Shield Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length [x] | Length [x] | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Communication Control | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Polyethylene (PE) | 26 | 34 AWG | 0.029 in | 0.737 mm | Copper Tinned | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Gray | 2 | Braid | 300 VDC | 5.74 mm | 0.226 in | 20 AWG | 100 ft | 30.5 m | ||
Prysmian Group | Communication Control | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Polyethylene (PE) | 26 | 34 AWG | 0.029 in | 0.737 mm | Copper Tinned | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Gray | 2 | Braid | 300 VDC | 5.74 mm | 0.226 in | 20 AWG | Copper Tinned | 80 % |
