STL11 Series

Catalog

MOSFET N-CH 40V 11A POWERFLAT

Part	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Package / Case	Input Capacitance (Ciss) (Max) @ Vds
STMicroelectronics STL11N4LLF5	2.5 V	9.7 mOhm	Surface Mount	150 °C	-55 °C	N-Channel	1570 pF	PowerFlat™ (3.3x3.3)	4.5 V 10 V	2.9 W 50 W	11 A	40 V	20 V	12.9 nC	MOSFET (Metal Oxide)	8-PowerVDFN

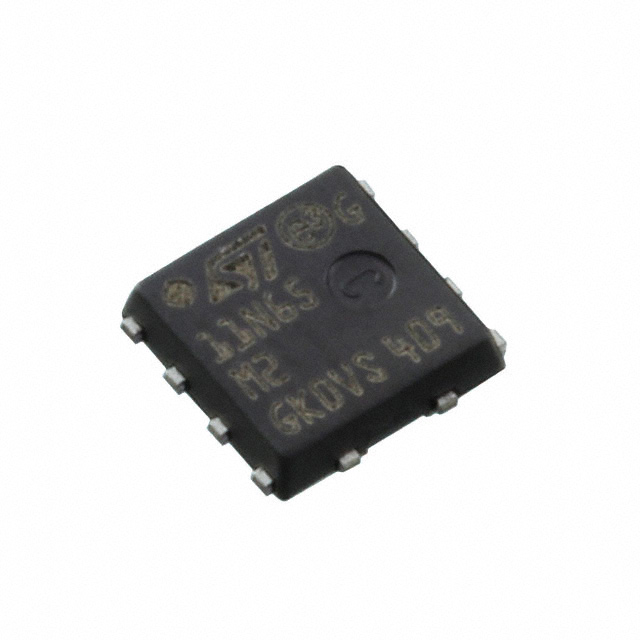

STMicroelectronics STL11N65M2	4 V	670 mOhm	Surface Mount	150 °C	-55 °C	N-Channel			10 V	85 W	7 A	650 V	25 V	12.4 nC	MOSFET (Metal Oxide)		410 pF
