LT1054 Series

Switched-Capacitor Voltage Converter with Regulator

Catalog

Switched-Capacitor Voltage Converter with Regulator

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Function	Supplier Device Package	Frequency - Switching	Voltage - Input (Min) [Min]	Output Type	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Mounting Type	Output Configuration	Number of Outputs	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case	Utilized IC / Part	Type	Interconnect System	Contents	Platform
Analog Devices LT1054LCS8#PBF	100 °C	0 °C	120 mA	Ratiometric Step-Up	8-SO	25 kHz	3.5 V	Adjustable (Fixed)	7 V	14 V	Surface Mount	Positive or Negative	1	2.5 V	8-SOIC	3.9 mm	0.154 in
Analog Devices LT1054IS8#TRPBF	100 °C	-40 C	100 mA	Ratiometric Step-Up	8-SO	25 kHz	3.5 V	Adjustable (Fixed)	15 V	30 V	Surface Mount	Positive or Negative	1	2.5 V	8-SOIC	3.9 mm	0.154 in
Analog Devices LT1054CSW#PBF	100 °C	0 °C	100 mA	Ratiometric Step-Up	16-SO	25 kHz	3.5 V	Adjustable (Fixed)	15 V	30 V	Surface Mount	Positive or Negative	1	2.5 V	16-SOIC	7.5 mm	0.295 in
Analog Devices LT1054ISW#TRPBF	100 °C	-40 C	100 mA	Ratiometric Step-Up	16-SO	25 kHz	3.5 V	Adjustable (Fixed)	15 V	30 V	Surface Mount	Positive or Negative	1	2.5 V	16-SOIC	7.5 mm	0.295 in
Analog Devices LT1054MJ8			100 mA	Ratiometric Step-Up	8-CERDIP	25 kHz	3.5 V	Adjustable (Fixed)	15 V	14 V	Through Hole	Positive or Negative	1	2.5 V	8-CDIP			7.62 mm	0.3 in
Analog Devices LT1054CS8#PBF	100 °C	0 °C	100 mA	Ratiometric Step-Up	8-SO	25 kHz	3.5 V	Adjustable (Fixed)	15 V	30 V	Surface Mount	Positive or Negative	1	2.5 V	8-SOIC	3.9 mm	0.154 in

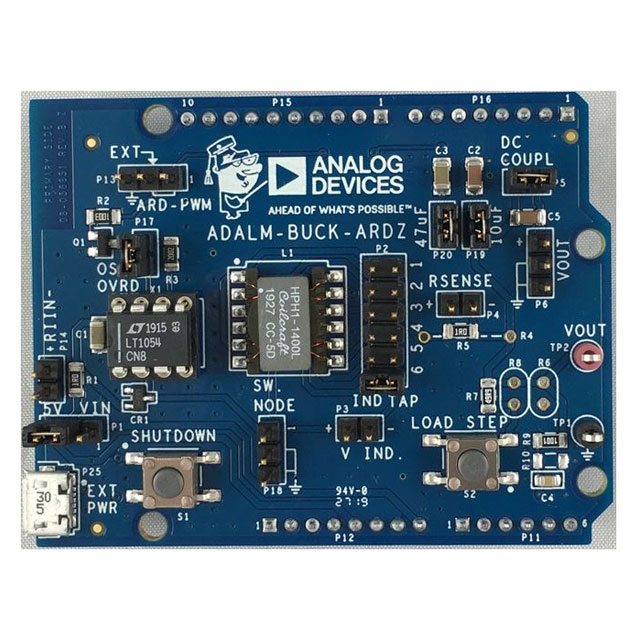

Analog Devices ADALM-BUCK-ARDZ				Power Supply																LT1054	Power Management	Arduino R3 Shield	Board(s)	ADALM2000
Analog Devices LT1054IS8#PBF	100 °C	-40 C	100 mA	Ratiometric Step-Up	8-SO	25 kHz	3.5 V	Adjustable (Fixed)	15 V	30 V	Surface Mount	Positive or Negative	1	2.5 V	8-SOIC	3.9 mm	0.154 in

Catalog

Switched-Capacitor Voltage Converter with Regulator

Key Features

• Output Current100mA (LT1054)125mA (LT1054L)

• 100mA (LT1054)

• 125mA (LT1054L)

• Reference and Error Amplifier for Regulation

• Low Loss: 1.1V at 100mA

• Operating Range3.5V to 15V (LT1054)3.5V to 7V (LT1054L)

• 3.5V to 15V (LT1054)

• 3.5V to 7V (LT1054L)

• External Shutdown

• External Oscillator Synchronization

• Can Be Paralleled

• Pin Compatible with the LTC1044/ICL7660

• Available in SW16 and SO-8 Packages

Description

The LT1054 is a monolithic, bipolar, switched-capacitor voltage converter and regulator. The LT1054 provides higher output current than previously available converters with significantly lower voltage losses. An adaptive switch driver scheme optimizes efficiency over a wide range of output currents. Total voltage loss at 100mA output current is typically 1.1V. This holds true over the full supply voltage range of 3.5V to 15V. Quiescent current is typically 2.5mA.The LT1054 also provides regulation, a feature not previously available in switched-capacitor voltage converters. By adding an external resistive divider a regulated output can be obtained. This output will be regulated against changes in both input voltage and output current. The LT1054 can also be shut down by grounding the feedback pin. Supply current in shutdown is less than 100µA.The internal oscillator of the LT1054 runs at a nominal frequency of 25kHz. The oscillator pin can be used to adjust the switching frequency or to externally synchronize the LT1054.The LT1054 is pin compatible with previous converters such the LTC1044/ICL7660.ApplicationsVoltage InverterVoltage RegulatorNegative Voltage DoublerPositive Voltage Doubler
